TSM Series Integrated Step-Servo Motors

The TSM series integrates stepper servo motors adopts high-resolution incremental encoder design to achieve closed-loop dynamic control of the servo system. Frame size: NEMA11, 17,23,24,34. Bus communication options include Modbus/RTU, Modbus/TCP, CANopen and Ethernet/IP.
● Multi-axis field bus control
● Intelligent built-in controller
● Compact all-in-one solution
● Efficient, smooth, accurate, fast
● Enhanced motor, optimized design
Brand Name: MOONS'
Price: USD  454.0  -  674.0  EA

* Free shipping to North America and most of Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more



■ Description

The Step Servo is an innovative revolution for the world of stepping motor, it enhances the stepping motor with servo technology to create a product with exceptional feature and broad capability.TSM is MOONS’ 3rd generation integrated step-servo and compact motor+drive+encoder+controller all-in-one solution. With improved technology, TSM upgrades significant key features based on 2nd generation SSM and operates more efficiently and intelligently.
NEMA 11 TSM Integrated Step-Servo Motors


■ Features

Closed Loop
Closed Loop
▪ Very tight position and velocity control for the most demanding applications
▪ Robust servo loops that tolerate wide fluctuations in load inertia and frictional loading.
▪ The TSM17/23/24/34 achieve precise positioning to within ±1 count (0.018°) using a high resolution (20000 counts/rev) encoder.
▪ The TSM11 achieves precise positioning to within ±1 count (0.2°) using a high resolution (4096 counts/rev) encoder.

Easy Tuning
▪ Pre-defined tuning parameters for maximum control performance and stability.
▪ Easy selection list provides the level of control desired.
▪ In most cases NO extra manual tuning is required.
Easy Tuning

Lower Heating/High Efficiency
Lower Heating/High Efficiency
▪ Uses only the current required by the application, generating minimum heat output.
▪ When stand-still, current can reach nearly zero for extremely low heat output.
▪ Being able to use almost 100% of torque, allows for more efficient and compact motor usage.

Smooth & Accurate
▪ Space vector current control with 5000 line high resolution encoder, gives smooth and quiet operation, especially at low speeds.
------A feature never found with traditional stepper motors
▪ High stiffness due to the nature of the stepper motor combined with the highly responsive servo control
------Accurate position control both while running and static positioning
Smooth & Accurate

Fast Response
Fast Response
When performing fast point-to-point moves, the high torque output and advanced servo control provides a very responsive system far exceeding what can be done with a conventional stepper system.

High Torque
▪ Because the TSM operates in full servo mode, all the available torque of the motor can be used. The motor can provide as much as 50% more torque in many applications.
▪ High torque capability often eliminates the need for gear reduction.
▪ Boost torque capability can provide as much as 50% more torque for short, quick moves.
High Torque

Key Enhancements over the SSM Family (2nd Generation)
▪ Up to 8 digital inputs, 4 digital outputs and 1 analog input for S/Q/C types (TSM17/23/24/34 only)
▪ A/B/Z differential encoder signal output supported for P type (TSM17/23/24/34 only)
▪ Automatic load inertia detection
▪ On board daisy chain connection for field bus control (RS-485, Modbus/RTU, CANopen, TSM17/23/24/34 only)
▪ On board daisy chain over Ethernet on TSM34 only
▪ Multiple homing features for S/Q types
▪ Software limit for S/Q types
▪ Auxiliary power input for Keep Alive function (TSM34 only)


■ Model Numbering System

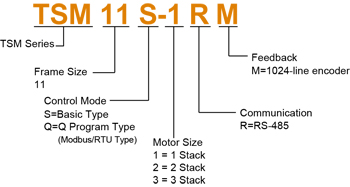

Model Numbering System of NEMA 11 Integrated Step-Servo Motors


■ Ordering Information

Model Torque Control I/O(*) RS-232 RS-485/422
TSM11S-1RM 0.065N·m S 4DI, 2DO
TSM11S-2RM 0.08N·m
TSM11S-3RM 0.125N·m
TSM11Q-1RM 0.065N·m Q
TSM11Q-2RM 0.08N·m
TSM11Q-3RM 0.125N·m
* DI: Digital Input; DO: Digital Output; EO: Encoder Output; AI: Analog Input

Power Amplifier
Amplifier Type Dual H-Bridge, 4 Quadrant
Current Control 4 state PWM at 20 KHz
Output Torque TSM11□-1RM up to 65 mN.m
TSM11□-2RM up to 80 mN.m
TSM11□-3RM up to 125 mN.m
Power Supply External 24 VDC power supply required
Protection Over-voltage, under-voltage, over-temp, motor/wiring shorts (phase-to-phase, phase-toground)
Ambient Temperature 0 - 40°C (32 - 104°F) when mounted to a suitable heatsink
Humidity 90% non-condensing
Controller
Current Control Advanced digital current control provides excellent high speed torque
Microstep Resolution Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev
Speed Range Speeds up to 60 rps
Distance Range Over 10,000,000 revolutions (at 200 steps/rev)
Noise Filtering Programmable hardware digital noise filter. Software noise filter
Serial Commanding Supports Serial Command Language (SCL)
Encoder Feedback 4096 counts/rev encoder feedback
Non-Volatile Storage Configurations are saved in FLASH memory on-board the DSP
X1/Step Input: 5 - 24 VDC, single-ended signals, max. pulse frequency 1MHz
Functions: Step, CW Step, A Quadrature, CW Limit, CW Jog, Run/Stop, general purpose input;
adjustable bandwidth digital noise rejection filter
Connect with NPN type output ONLY
X2/Direction Input: 5 - 24 VDC, single-ended signals, max. pulse frequency 1MHz
Functions: Dir, CCW Step, B Quadrature, CCW Limit , CCW Jog, general purpose input;
adjustable bandwidth digital noise rejection filter
Connect with NPN type output ONLY
X3/Enable Inputs: 5 - 24 VDC, single-ended signals, max. pulse frequency 1MHz
Functions: Enable, general purpose input;
Connect with NPN type output ONLY
X4/Alarm Reset Inputs: 5 - 24 VDC, single-ended signals, max. pulse frequency 1MHz
Functions: Alarm reset, Change speed, general purpose input
Connect with NPN type output ONLY
Y1/Fault Open drain output, maximum current 100mA with maximum voltage of 30VDC
Functions: Alarm reset, Change speed, general purpose input
Connect with NPN type output ONLY
Y2/Brake Open drain output, maximum current 100mA with maximum voltage of 30VDC
Functions: Brake, In Position, Tach Output, general purpose
Communication Interface RS-422/485
Weight TSM11□-1RM: 118 g
TSM11□-2RM: 168 g
TSM11□-3RM: 218 g
Rotor Inertia TSM11□-1RM: 9 g•cm2
TSM11□-2RM: 12 g•cm2
TSM11□-3RM: 18 g•cm2

Compare Item Price
(USD)
Buy Now
TSM11S-1RM N/A
TSM11S-2RM N/A
TSM11S-3RM N/A
TSM11Q-1RM N/A
TSM11Q-2RM N/A
TSM11Q-3RM N/A
TSM17P-1AG $454.00
TSM17S-1AG $480.00
TSM17S-1RG $487.00
TSM17Q-1AG $494.00
TSM17Q-1RG $502.00
TSM17C-1CG $656.00
TSM17P-2AG $456.00
TSM17S-2AG $484.00
TSM17S-2RG $490.00
TSM17Q-2AG $498.00
TSM17Q-2RG $505.00
TSM17C-2CG $661.00
TSM17P-3AG $460.00
TSM17S-3AG $487.00
TSM17S-3RG $493.00
TSM17Q-3AG $502.00
TSM17Q-3RG $509.00
TSM17C-3CG $665.00
TSM17P-4AG $510.00
TSM17S-4AG $532.00
TSM17S-4RG $532.00
TSM17Q-4AG $575.00
TSM17Q-4RG $575.00
TSM17C-4CG $575.00
TSM23P-2AG N/A
TSM23S-2AG N/A
TSM23S-2RG N/A
TSM23Q-2AG N/A
TSM23Q-2RG N/A
TSM23C-2CG $674.00
TSM23P-3AG N/A
TSM23S-3AG N/A
TSM23S-3RG N/A
TSM23Q-3AG N/A
TSM23Q-3RG N/A
TSM23C-3CG N/A
TSM23P-4AG N/A
TSM23S-4AG N/A
TSM23S-4RG N/A
TSM23Q-4AG N/A
TSM23Q-4RG N/A
TSM23C-4CG N/A
TSM24P-3AG N/A
TSM24S-3AG N/A
TSM24S-3RG N/A
TSM24Q-3AG N/A
TSM24Q-3RG N/A
TSM24C-3CG N/A
TSM34P-1AG N/A
TSM34Q-1AG N/A
TSM34Q-1RG N/A
TSM34Q-1DG N/A
TSM34C-1CG N/A
TSM34P-3AG N/A
TSM34Q-3AG N/A
TSM34Q-3RG N/A
TSM34Q-3DG N/A
TSM34C-3CG N/A
TSM34P-5AG N/A
TSM34Q-5AG N/A
TSM34Q-5RG N/A
TSM34Q-5DG N/A
TSM34C-5CG N/A
TSM34P-6AG N/A
TSM34Q-6AG N/A
TSM34Q-6RG N/A
TSM34Q-6DG N/A
TSM34C-6CG N/A

  • NEMA 11 Integrated Step-Servo Motors torque speed curve
  • NEMA 11 Integrated Step-Servo Motors torque speed curve
  • NEMA 11 Integrated Step-Servo Motors torque speed curve

■ Dimension (Units: mm)

Dimension of NEMA 11 Integrated Step-Servo Motors
Model “L” Front Shaft Diameter
TSM11□-1RM 45.9 5
TSM11□-2RM 55 5
TSM11□-3RM 66.2 5

2D Drawings
Title Type Size(KB) Download
TSM11S_2D Drawing.pdf PDF 39
TSM11Q_2D Drawing.pdf PDF 39
TSM11Q_2D Drawing.DWG DWG 106
TSM11S_2D Drawing.DWG DWG 106
TSM11Q-3RM 2D.DWG DWG 80
3D Model
Brochure
Title Type Size(KB) Download
TSM+TXM Family Brochure_EN20240206 A3L.pdf PDF 5257
User Manual
Title Type Size(KB) Download
TSM11 Series_User Manual.pdf PDF 2604
Catalog
Title Type Size(KB) Download
Stepper Products General Catalog_20180531.pdf PDF 27992
Quick Start
Title Type Size(KB) Download
TSM11Series_Quick Start.pdf PDF 932
Certification
Title Type Size(KB) Download
ROHS declaration-2024-A0.pdf PDF 522
