    The Step-Servo is an innovative revolution for the world of stepper motor, it enhances the stepper motors with servo technology to create a product with exceptional feature and broad capability.
    ● Closed loop step system with servo control
    ● Intelligent built-in controller
    ● Efficient, smooth, accurate & fast
    ● Low vibration, low noise, low heat
    ● Enhanced motor optimized design for long life
    Brand Name: MOONS'
    Price: USD  175.0  -  247.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Description
  • Features
  • Software
  • Numbering System
  • Ordering Information
    •

    ■ Description

    The Step-Servo is an innovative revolution for the world of stepper motor, it enhances the stepper motors with servo technology to create a product with exceptional feature and broad capability.
    RS Series Step-Servo Drives


    ■ Features

    Multi-functional Capability
    Multi-functional Capability of RS Series Step-Servo Drives
    Closed Loop
    Closed Loop
    ● Very tight position and velocity control for the most demanding applications.
    ● Robust servo loops that tolerate wide fluctuation in load inertia and frictional loading.
    ● Precise positioning to within ± 0.2° using high resolution(4096 counts/rev) encoder.

    Low Heating/High Efficiency
    ● Uses only the current required by the application, generating minimum heat output.
    ● When stand-still, current can reach nearly zero for extremely low heat output.
    ● Being able to use almost 100% of torque, allows for more efficient and compact motor usage.
    Low Heating/High Efficiency

    Smooth & Accurate
    Smooth & Accurate
    ● Space vector current control with 1024 line high resolution encoder, gives smooth and quiet operation, especially at low speeds. A feature never found with traditional stepping motors ● High stiffness due to the nature of the stepping motor combined with the highly responsive servo control. Accurate position control both while running and static positioning

    Fast Response
    When performing fast point-to-point moves, the high torque output and advanced servo control provides a very responsive system far exceeding what can be done with a conventional stepper system.
    Fast Response

    High Torque
    High Torque
    ● Because the Step-Servo operates in full servo mode, all the available torque of the motor can be used.
    ● The motor can provide as much as 50% more torque in many applications. High torque capability often eliminates the need for gear reduction.
    ● Boost torque capability can provide as much as 50% more torque for short, quick moves.

    Motion Monitoring
    ● For difficult control situations where performing a precise move is necessary, the Step-Servo Quick Tuner provide an easy to use interface for performing and monitoring the motion profile.
    ● Many common parameters such as Actual Speed or Position Error can be monitored to evaluate system performance.
    ● The monitoring is interactive with the servo tuning capability so that optimum performance can be achieved.
    Motion Monitoring

    Easy Tuning
    Easy Tuning
    ● Pre-defined tuning parameters for maximum control performance and stability.
    ● Easy selection list provides the level of control desired.
    ● In most cases NO extra manual tuning is required.

    Key Features
    ● Up to 4 digital inputs, 3 digital outputs for P/S/Q type
    ● AOUT+/- BOUT+/- ZOUT+/- differential encoder signal outputs for P type
    ● Automatic load inertia detection
    ● Multiple homing methods for S/Q type
    ● Software limit for S/Q type


    ■ Software

    Software
    Step-Servo Quick Tuner
    ◆Friendly interface
    ◆Easy setup within just three steps
    ◆Drive setup and configuration
    ◆Servo tuning and sampling
    ◆Motion testing and monitoring
    ◆Write and save SCL command scripts
    ◆Integrated online help

    Built-in Q Programming
    Built-in Q Programming
    ◆Single-axis motion control
    ◆Stored program execution
    ◆Multi-tasking
    ◆Conditional processing
    ◆Math functions
    ◆Data registers
    ◆Motion profile simulation
    ◆Online help integrated

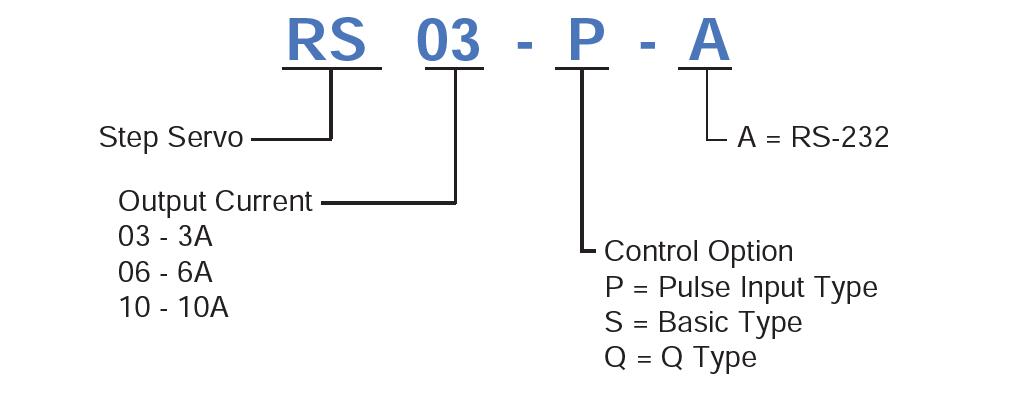

    ■ Model Numbering System

    Model Numbering System of RS Series Step-Servo Drives


    ■ Ordering Information

    Control Drive Type Motor Type Torque
    P Type
    Pulse Input Type
    RS-232 Software
    4 Digital Inputs
    3 Digital Outputs
    Encoder Outputs    		 RS03-P-A AM11RS1DMA 0.065N·m
    AM11RS2DMA 0.08N·m
    AM11RS3DMA 0.125N·m
    AM17RS1DM □ 0.26N·m
    AM17RS2DM □ 0.42N·m
    AM17RS3DM □ 0.52N·m
    AM17RS4DM □ 0.7N·m
    RS06-P-A AM23RS2DM □ 0.95N·m
    AM23RS3DM □ 1.5N·m
    AM23RS4DMA 2.4N·m
    AM24RS3DM □ 2.5N·m
    RS10-P-A AM34RS1DMA 2.7N·m
    AM34RS3DMA 5.2N·m
    AM34RS5DMA 7N·m

    Control Drive Type Motor Type Torque
    S Type
    Basic Type
    RS-232 Communication
    4 Digital Inputs
    3 Digital Outputs    		 RS03-S-A AM11RS1DMA 0.065N·m
    AM11RS2DMA 0.08N·m
    AM11RS3DMA 0.125N·m
    AM17RS1DM □ 0.26N·m
    AM17RS2DM □ 0.42N·m
    AM17RS3DM □ 0.52N·m
    AM17RS4DM □ 0.7N·m
    RS06-S-A AM23RS2DM □ 0.95N·m
    AM23RS3DM □ 1.5N·m
    AM23RS4DMA 2.4N·m
    AM24RS3DM □ 2.5N·m
    RS10-S-A AM34RS1DMA 2.7N·m
    AM34RS3DMA 5.2N·m
    AM34RS5DMA 7N·m

    Control Drive Type Motor Type Torque
    Q Type
    Programm Type
    RS-232 Communication
    4 Digital Inputs
    3 Digital Outputs    		 RS03-Q-A AM11RS1DMA 0.065N·m
    AM11RS2DMA 0.08N·m
    AM11RS3DMA 0.125N·m
    AM17RS1DM □ 0.26N·m
    AM17RS2DM □ 0.42N·m
    AM17RS3DM □ 0.52N·m
    AM17RS4DM □ 0.7N·m
    RS06-Q-A AM23RS2DM □ 0.95N·m
    AM23RS3DM □ 1.5N·m
    AM23RS4DMA 2.4N·m
    AM24RS3DM □ 2.5N·m
    RS10-Q-A AM34RS1DMA 2.7N·m
    AM34RS3DMA 5.2N·m
    AM34RS5DMA 7N·m
    □: Enter A(Enhanced Shaft) or B(Standard) in the box(□) within the model name

    Data Sheet

    Power Amplifier
    Amplifier Type Dual H-Bridge, 4 Quadrant
    Current Control 4 state PWM at 20 KHz
    Output Current RS03: Continuous Current 3A max, Boost Current 4.0A max (1.5s), current limitation auto set-up by attached motor
    RS06: Continuous Current 6A max, Boost Current 7.5A max (1.5s), current limitation auto set-up by attached motor
    RS10: Continuous Current 10A max, Boost Current 12A max (1.5s), current limitation auto set-up by attached motor
    Power Supply External nominal 24 ~ 70 volt DC power supply required, Absolute maximum input voltage range 18 ~ 75 VDC
    Protection Over-voltage, under-voltage, over-temp, motor/winding shorts (phase-to-phase, phase-to-ground)
    Controller
    Electronic Gearing Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev
    Filters Digital input noise filter, Smoothing filter, PID filter, Notch filter
    Non-Volatile Storage Configurations are saved in FLASH memory on-board the DSP
    Modes of Operation P type: Position Mode(Pulse & Direction, CW & CCW Pulse, A/B Quadrature)
    S type: Position Mode(Pulse & Direction, CW & CCW Pulse, A/B Quadrature); Torque Mode, Velocity Mode, SCL Mode
    Q type: Position Mode(Pulse & Direction, CW & CCW Pulse, A/B Quadrature); Torque Mode, Velocity Mode, SCL Mode, Q Programming
    Digital Inputs P/S/Q type: X1/STEP, X2/DIR, Optically isolated, differential, 5~24VDC; Minimum pulse width = 250 ns, Maximum pulse frequency = 2 MHz;
    X3,X4: optically isolated, single-ended, sinking or souring, 5-24VDC, minimum pulse width 50μs, maximum pulse frequency 10KHz;
    Digital Outputs P/S/Q type: Y1/Alarm, Y2/In Position, Y3/Brake; Optically isolated, 30V/100 mA max
    Encoder Outputs P type: Differential encoder outputs (AOUT+/- BOUT+/- ZOUT+/-), 26C31 line driver, 20 mA sink or source max
    Communication RS-232
    Physical
    Ambient Temperature 0 to 40°C (32 to 104°F) when mounted to a suitable heatsink
    Ambient Humdity 90% Max., non-condensing
    Mass Approx 0.2 Kg

    Compare Item Price
    (USD)    		 Buy Now
    RS03-P-A $247.00
    RS06-P-A $247.00
    RS03-S-A $247.00
    RS06-S-A $247.00
    RS03-Q-A $247.00
    RS06-Q-A $247.00
    RS10-Q-A $237.50
    RS10-S-A $188.00
    RS10-P-A $175.00
       Torque Speed Curves

    □ AM11RS series

    • AM11RS series Torque Speed Curce
    • AM11RS series Torque Speed Curce
    • AM11RS series Torque Speed Curce

    □ AM17RS series

    • AM17RS series Torque Speed Curce
    • AM17RS series Torque Speed Curce
    • AM17RS series Torque Speed Curce
    • AM17RS series Torque Speed Curce

    □ AM23RS series

    • AM23RS series Torque Speed Curce
    • AM23RS series Torque Speed Curce
    • AM23RS series Torque Speed Curce

    □ AM24RS series

    • AM24RS series Torque Speed Curce

    □ AM34RS series

    • AM34RS series Torque Speed Curce
    • AM34RS series Torque Speed Curce
    • AM34RS series Torque Speed Curce

    Dimension

  • Drive
  • Motor
    •

    ■ Drive (Unit:mm)

    □ RS03/06/10-P
    RS03/06/10-P dimension
    □ RS03/06/10-S/Q
    RS03/06/10-S/Q dimension

    Part Number
    RS03-P-A RS06-P-A RS10-P-A
    Part Number
    RS03-S-A RS06-S-A RS10-S-A
    RS03-Q-A RS06-Q-A RS10-Q-A


    ■ Motor (Unit:mm)

    □ AM11RS series
    AM11RS series dimension
    □ AM17RS series
    AM17RS series dimension

    Model L
    AM11RS1DMA 43.8
    AM11RS2DMA 52.9
    AM11RS3DMA 64.1
    Model A A1 B B1 L
    AM17RS1DMA φ6 5.5 20 15 59.5
    AM17RS1DMB φ5 4.5 24 15 59.5
    AM17RS2DMA φ6 5.5 20 15 65
    AM17RS2DMB φ5 4.5 24 15 65
    AM17RS3DMA φ6 5.5 20 15 73.5
    AM17RS3DMB φ5 4.5 24 15 73.5
    AM17RS4DMA φ6 5.5 20 15 89
    AM17RS4DMB φ5 4.5 24 15 89

    □ AM23RS series
    AM23RS series dimension
    □ AM24RS series
    AM24RS series dimension

    Model A A1 B B1 L
    AM23RS2DMA φ8 7.5 24 20 77.5
    AM23RS2DMB φ6.35 5.85 20 15 77.5
    AM23RS3DMA φ8 7.5 24 20 99.5
    AM23RS3DMB φ6.35 5.85 20 15 99.5
    AM23RS4DMA φ8 7.5 24 20 102.5
    Model A A1 B B1 L
    AM24RS3DMA φ10 9.5 24 20 110
    AM24RS3DMB φ8 7.5 20.6 15 110

    □ AM34RS series
    AM34RS series dimension

    Model L
    AM34RS1DMA 88
    AM34RS3DMA 117.5
    AM34RS5DMA 147

    Downloads
    2D Drawings
    3D Model
    Title Type Size（KB） Download
    RS03/06/10-P-A_ 3D Model.step STEP 4390
    RS03/06/10-S/Q-A_3D Model.step STEP 12530
    RS-P 3D.STEP STEP 4390
    RS-Q_S 3D.STEP STEP 12530
    Brochure
    Title Type Size（KB） Download
    RS Family Brochure_EN20230318_A4.pdf PDF 4255
    User Manual
    Quick Start
    Title Type Size（KB） Download
    RS03/06-P-A_ Quick Start.pdf PDF 1370
    RS03/06-Q/S-A_ Quick Start.pdf PDF 1410
    Certification
    Title Type Size（KB） Download
    ROHS declaration-2024-A0.pdf PDF 522
    Software
    Title Type Size（KB） Download
    Step-Servo Quick Tuner Setup 3.0.19.0109.zip ZIP 37231
    Stepper Suite Setup 4.0.24.0316.zip ZIP 22840
