PRODUCT CENTER

MOONS', founded in 1994, is a global Top 3 stepper motor manufacturer with the yearly shippment of more than 10 million hybrid stepper motors in the world. MOONS' products lines cover 3 major areas: Motion Control, Intelligent LED Control, and Condition Monitoring. MOONS' offers a vast array of motion control & smart LED control products or solutions. MOONS' has a comprehensive capability of providing all-purpose innovative solutions to the most demanding applications for thousands of customers around the world by combining cutting-edge technologies developed by leading motion control brands AMP, Lin Engineering and Technosoft. MOONS' was listed on the Shanghai Stock Exchange (Stock code 603728) in 2017.

MOONS' offers a wide range of products in its Product Center: stepper motors, slotless & coreless motors, Motion Controller, servo drivers & motors, step-servo drivers & motors (Closed-Loop Stepper System), stepper drivers & motors, integrated motors, one-for-all intelligent motor drivers, linear motion products, AGV products, brushless DC motors and drivers, LED drivers & intelligent lighting control, lighting control, condition monitoring products, etc. In addition, the following product-related resources are recommended:

Files/software Download

Technical College

FAQ

Stepper Motor Search Tool

Online Shop

Products Launch

Motion Control

MOONS' has a comprehensive capability of providing all-purpose innovative solutions to the most demanding applications for thousands of customers around the world by combining cutting-edge technologies developed by leading motion control brands AMP, Lin Engineering and Technosoft. Read More…

Stepper Motors

• Hybrid Stepper Motors MOONS' provides excellent performance in areas of torque, speed, and step resolution. A hybrid stepper motor typically has a step angle between 200 and 400 steps per revolution. A variety of unipolar and bipolar hybrid stepper motors are available from MOONS', including standard hybrid stepper motors, PowerPlus hybrid stepper motors, high-precision hybrid stepper motors, smooth hybrid stepper motors, and so on. • Standard Hybrid Stepper Motor• PowerPlus Hybrid Stepper Motors• Smooth Hybrid Stepper Motors• High Precision Hybrid Stepper Motors• Encapsulated Hybrid Stepper Motors• Hybrid Stepper Motors With Encoder• Hollow Shaft Hybrid Stepper Motors • Hybrid Stepper Motors With Gearbox• Anti-corrosion Hybrid Stepper Motors• 5-Phase Hybrid Stepper Motors ◊ Catalog

• Permanent Magnet Stepper Motors There are many innovative applications for MOONS' PM stepper motors, including computer equipment, photographic systems, optoelectronic devices, valve control, ATM equipment, CNC machines, automatic winding machines, electronic clocks, and medical equipment. • 8mm Permanent Magnet Stepper Motors• 10mm Permanent Magnet Stepper Motors• 15mm Permanent Magnet Stepper Motors • 20mm Permanent Magnet Stepper Motors• 25mm Permanent Magnet Stepper Motors• 35mm Permanent Magnet Stepper Motors • 42mm Permanent Magnet Stepper Motors• Actuator of Permanent Magnet Stepper Motors ◊ Catalog

Slotless & Coreless Motors

• Slotless Brushless DC Motors Slotless brushless DC motors provide high torque and power density in a small package. In the absence of cogging, the operational lifetime can reach 20,000 hours. In addition, the encoder can be used for accurate positioning applications. To meet the needs of a wider range of applications, we also offer products in the 16mm and 22mm series. • ECH10025 High Speed Slotless BLDC Motors• ECH10032 High Speed Slotless BLDC Motors• ECU13026 Slotless BLDC Motors • ECU13038 Slotless BLDC Motors• ECH13048 High Speed Slotless BLDC Motors• ECU16024 Slotless BLDC Motors • ECU16024D Built-in Drive Type Slotless BLDC Motors• ECU16036 Slotless BLDC Motors• ECU16052 Slotless BLDC Motors • ECH16056 High Speed Slotless BLDC Motors• ECU19058 Slotless BLDC Motors• ECH19058 High Speed Slotless BLDC Motors • ECU22032 Slotless BLDC Motors• ECH22045 High Speed Slotless BLDC Motors• ECU22048 Slotless BLDC Motors • ECH22060 High Speed Slotless BLDC Motors• ECT22064 High Torque Slotless BLDC Motors• ECU26040 Slotless BLDC Motors • ECU26056 Slotless BLDC Motors• ECU30042 Slotless BLDC Motors• ECU30064 Slotless BLDC Motors ◊ Catalog

• Coreless Brushed DC Motors Coreless Brushed DC Motors has excellent performance and motor control is simpler. We provide three types of coreless brushed DC motors with diameters of 13mm, 17mm, and 24mm an option. With a gearbox, you can get high torque, and the encoder can be used for precise positioning. • DCU08017 Coreless Brushed DC Motors• DCU10017 Coreless Brushed DC Motors• DCU10025 Coreless Brushed DC Motors • DCU13020 Coreless Brushed DC Motors• DCU13028 Coreless Brushed DC Motors• DCU16025 Coreless Brushed DC Motors • DCU17025 Coreless Brushed DC Motors• DCU17035 Coreless Brushed DC Motors• DCU24032 Coreless Brushed DC Motors ◊ Catalog

• Slotless/Coreless Motor Drivers MOONS' slotless and coreless series drive is specially developed for MOONS' slotless and coreless series products, users can achieve fast motor drive through this series of products. • Micro Controller Series Drivers

Motion Controller

• Intelligent Controller MOONS' Intelligent Controller is a top-tier controller designed for advanced machinery manufacturing automation. Built on a real-time Linux OS and customized CODESYS® Runtime, it supports multi-axis servo control via EtherCAT. Ideal for production equipment with complex processes, it offers users exceptional motion control performance and a wide array of motion control functions. • MCX Intelligent Controller• MCA6 Medium Motion PLC

• Remote IO Module MOONS' I/O expansion modules include both remote and centralized types, supporting various network types such as digital, analog, temperature detection, and high-speed counting signals. This versatility meets the diverse application needs of customers. • MET1 Remote IO Module

• Human Machine Interfaces (HMI) MOONS' human machine interface developed is based on advanced human-computer communication skills and brand development concepts by ownself, combined with years of experience in industrial automation applications. It can help customers improve efficiency, reduce costs, optimize management, and promote the development of equipment towards intelligence, through visual charts, flexible communication functions, and powerful data processing capabilities. • ATP5000 Network HMI

Servo Drives and Motors

• Servo Drives MOONS' servo drives support various control options, including pulse & direction, analog torque/velocity, and streaming serial commands. They are easy to set up with a user-friendly interface and auto-tuning. They also support multiple fieldbuses like EtherCAT, CANopen, Modbus/RTU, Modbus/TCP, EtherNet/IP, and Profinet. With Safe Torque Off (STO), they ensure safety by preventing unintended motion. • M54S Series Universal AC Input Servo Drives• M56S Series High-End AC Input Servo Drives• MBDV Series mini Low-voltage DC Servo Drives• MBDV Series Low-voltage DC Servo drives Compact Size/Dual-axis design• M2DC Series Servo Drives ◊ Catalog

• Servo Motors MOONS' SM Series Servo Motor includes AC Servo Motors (50W to 7500W) and DC Servo Motors (50W to 750W). The series now features standard windings, more feedback options, and extra connection choices. Updated model numbers, and all motors are CE, RoHS, and UL recognized. • SM3 Series Servo Motors• MBDV Series mini Low-voltage DC Servo Motors• MBDV Series Low-voltage DC Servo Motors • M2DC Series DC Low-voltage Servo Motors ◊ Catalog

Step-Servo Drives and Motors (Closed Loop)

• Step-Servo Drives MOONS' Step-Servo Drives (Closed Loop Stepper Drives) combine servo control technology with stepper systems, achieving closed-loop control. They support various control modes and industrial fieldbuses, with programmable options available. • SSDC Series Step-Servo Drives• RS Series Step-Servo Drives ◊ Catalog

• Step-Servo Motors MOONS' Step-Servo motors, paired with Step-Servo drives, outperform traditional step motor systems. These premium, two-phase hybrid step motors feature high-resolution feedback devices. Together, they offer high peak torque, faster acceleration, increased machine throughput, quieter operation, and lower power consumption. • SSDC Series Step-Servo Motors• RS Series Step-Servo Motors ◊ Catalog

Stepper Drives and Motors

• Stepper Drives (Open-Loop) MOONS' stepper drives effectively reduce the noise and resonance of stepper motors during their middle and low speed ranges in order to achieve better smoothness, low vibration, low noise, and long life performance. MOONS' stepper drives support a variety of control modes and industrial fieldbus systems. Programmable models are available. • STF Series Fieldbus Control DC Stepper Drives• SRX Series Digital Pulse Control Stepper Drivers• 5SRZ Series Pulse Control Type DC Stepper Drives• ST Series Two Phase DC Stepper Motor Drives• SR Series Two Phase DC Stepper Motor Drives• SRXAC Series AC Stepper Motor Drivers• SRAC Series Two Phase AC Stepper Motor Drives• STAC Series Two Phase AC Stepper Motor Drives ◊ Catalog

• AM Series Stepper Motor (For Factory Automation) MOONS' recommended stepper motors for use with its stepper drives. They are the best choice for an open-loop stepper system. Please refer to the user manual of MOONS' stepper drives to determine which stepper motor you require. • Standard Hybrid Stepper Motors• IP65 Hybrid Stepper Motors• Hybrid Stepper Motors With Brakes• Hybrid Stepper Motors With Encoder• Stepper Motors With Gearbox ◊ Catalog

• AW Series Stepper Motors (IP65 Protection Type) MOONS' has newly launched the AW Series industrial protective stepper motors to meet the demands of increasingly complex and harsh environment applications. The AW Series motor features a spray-coated housing that provides excellent waterproof performance and a sturdy, wear-resistant structure. The motor is designed with a compact structure and uses standard aviation connectors for more reliable connections. • Standard Industrial Protective Stepper Motors• Industrial Protective Stepper Motors with Encoder• Industrial Protective Stepper Motors with Brake• Industrial Protective Stepper Motors with Encoder and Brake

Integrated Motors

• Integrated Servo Motors MOONS' Integrated Servo Motors feature high torque-density, low rotor-inertia, and all-digital servo drive technology. This all-in-one system integrates the servo motor, drive, and controller. Power, I/O, and communications connect directly to the motor through its connectors. • MDX Plus Series Integrated Servo Motors ◊ Catalog

• Integrated Step-Servo Motors (Closed Loop) MOONS reduced space by over 40% and cabling by over 50% by combining stepper servo motors, drivers, motion controllers, and high-resolution encoders into one unit. These integrated stepper servo motors support various industrial fieldbuses and control methods, offering high-stability, closed-loop operation. • TSMX Series• CSM Series• TSM Series• TXM Series IP65 type ◊ Catalog

• Integrated Stepper Motor As a result of MOONS' compacting the stepper motor, drive, motion controller, and encoder (some models) into one unit, the space required to operate is reduced by more than 40%, and the wiring requirements are reduced by more than 50%. • STM17R Series• STM23R Series• SWM Series IP65 type ◊ Catalog

Omnipotent Intelligent Drives

• Omnipotent Intelligent Drives Utilizing "ONE for ALL" and "ALL in ONE" technology, we offer cost-effective, compact, modular solutions for controlling the position, speed, and torque of rotary or linear brushless, DC brush, and step motors. It is possible to divide the motion application between the iPOS drives and the EtherCAT or CANopen master. On each drive, you can create complex motion applications using TML (the motion programming language). • One for All Intelligent Motor Drives ◊ Catalog

Linear Motion Products

• Linear Stepper Motors Using years of experience with hybrid step motors, MOONS' L Series linear step motors feature quality leadscrews and nuts. • External Nut Type• Non-captive Type• Captive Type• Ball Screw Type• Permanent Magnet Type

• Intelligent Linear Stepper Motors Intelligent linear stepper motors, featuring StepSERVO™ integrated motors and high precision screws, ensure accuracy and convenience. These compact actuators are ideal for linear positioning applications. • NEMA11 Series• NEMA17 Series• NEMA23 Series

• Linear Actuators MOONS' Miniature Linear Actuators are specifically designed for applications requiring compact structures. These actuators feature high integration and small size, ensuring they fit into tight spaces without compromising performance. Their stable product quality guarantees reliability, making them ideal for precise and efficient operations in various industries. • MLA Type

• Linear Slides MOONS' Linear Slides are designed to meet the needs of customers with compact structures. There are many advantages to these products, including high integration, small size, quieter operation, stable product quality, and lower prices. • MS Type

AGV Products

• AGV Products With AGV fields developing rapidly, MOONS' is dedicated to providing motion control systems & support for AGV host manufacturers. MOONS' can provide a full set of motion control products for all kinds of transmission robots/cars such as floor robot, autonomous case-handling robot, forklift, rail guided vehicle, logistics transport cars, etc., including driver/motorgearbox/drive wheel module/lifting module, etc. MOONS' products have compact axis structure/complete functions/low noise and good mechanical capability to designe for a variety of product customization requirements. • MSD Driving Wheel• AEQ Wheel Gearbox• MSH Wheel Hub Motor ◊ Catalog

Brushless DC Motors and Drivers

• Brushless DC Motors MOONS' offers a comprehensive selection of brushless motors with performance ratings from 3W to 300W used in a wide range of applications such as textile machines, ATMs, printers, solar energy equipment, pumps, food processing equipment, sorting equipment, etc. • R16 Series• R22 Series• R30 Series• R36 Series• R42 Series• S42 Series• R57 Series• S57 Series• R63 Series• S70 Series• S80 Series• S85 Series• S100 Series ◊ Catalog

• BLDC Drives MOONS' BLDC motor drives feature all-digital current and speed control, supporting multiple speed commands. They handle twice the overload torque and offer closed-loop control for both speed and current. • BLD Plus Series Brushless DC Drivers• Brushless DC Motor Drives ◊ Catalog

Intelligent Lighting

• Intelligent LED Drivers MOONS' intelligent LED drivers dim like no other, smoothly and down to the dark. Dimming is concerned with how lighting affects us all. Dimming with Intelligent Drivers is all about natural changes in brightness, a smooth transition from dim to black, and the use of patented technology to eliminate any perceptible flickering. • 0-10V Dimming Drivers• DALI Dimming Drivers• DMX Dimming Drivers• PWM Dimming Drivers• CASAMBI Dimming Drivers • Phase Cut Dimming Drivers ◊ CatalogSoftware Download

• General LED Drivers Featuring a surge level of 10KV and an ingress protection level of IP67, the MOONS' LED drivers are an excellent choice for outdoor applications. These lights are designed for use in high bays, tunnels, and roadways. As a result of the high efficiency of these drivers and the compact metal case, they run cooler, thereby improving reliability and extending product life. • 90 ~ 305VAC, Constant Current Drivers• 176 ~ 305VAC, Constant Current Drivers• 249 ~ 528VAC, Constant Current Drivers • 90 ~ 305VAC, Constant Voltage Drivers  ◊ Catalog    Software Download

• Explosion-proof LED Drivers MOONS' MB series LED drivers were awarded the "ExII2G Ex mbIIC Gb" explosion-proof certification, which greatly reduces the difficulty of designing the lamp housing and the associated issues. Constant-current, programmable LED driver: • 25W• 35W• 60W• 100W• 165W Constant-current, programmable DALI LED driver: • 25W• 35W• 60W• 100W• 165W Constant-current, fixed output current LED driver: • 50W Constant-current, programmable Explosion-proof Emergency LED driver: • 25W• 30W

• Sports Lighting LED Drivers The high-power LED driver series is suitable for professional sports application scenarios. This series integrates DMX-RDM, DALI-2, D4i control and 24V auxiliary output. • Sports Lighting LED Drivers (198~440Vac Input)• Sports Lighting LED Drivers (198~528Vac Input)

• LED Driver Accessories The LED Driver Accessories provide advanced communication and programming features, including a choice of dimming curves, dimming protocols (DALI, DMX, 0-10V), addressing (RDM, grouping strategy), sensor interface, communications, and reporting. • MSSL200• SmartKey• Touch Setting Tool(NFC)

Lighting Control

• Gateways Gateways are devices that connect node controllers and servers. It usually receives commands from the server and manages all lamps in the field. In the event that the server fails, the gateway can continue to operate independently. As before, all lamps will continue to operate. • Wireless Gateway (2.4G)• Wireless Gateway (SubG)• Tunnel Light Monitor ACU (RS485) (Type W)• Tunnel Light Monitor ACU (0-10V) (Type A)• ACU (Type R)• miniRTU• CompactACU• SplitACU

• Node Controller Node controllers are special equipment designed for controlling street and tunnel lights. A lamp can be switched on/off and dimmed up/down. At the same time, the lamp can report the status of each lamp to the server (dimming level, power, current, voltage, etc.). • Wireless Node Controller (NEMA SubG)• NB-IoT Node Controller (NEMA)• Wireless Node Controller (NEMA SubG DALI) • CAT1 Node Controller• RS485 Node Controller• RS485 Node Controller(with CCT)• Wireless Node Controller • Wireless Node Controller-DALI• 15W RS485 LED Dimming Driver• 55W RS485 LED Dimming Driver

Condition Monitoring Products

• Portable Vibration Inspector In addition to vibration measurement, multiple functional data collection features are included. • MS600EN

• Portable Vibration Analyzer The precision vibration analyzer includes a function for measuring electrical signals to assist in determining the condition of rotation machinery. • MS502EN

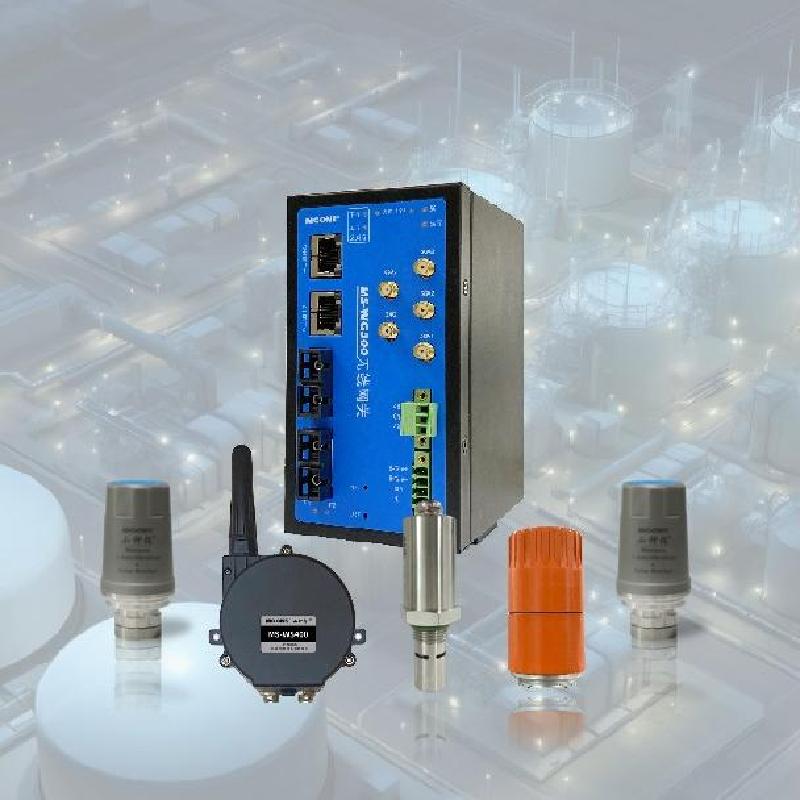

• Wireless Supervisor Wireless IIOT vibration monitoring solution keeps you connected to the health of your machinery. • MS-WG100NA• MS-WS100NA• MS-WG100EU• MS-WS100EU
