    spur gearboxes, smooth and quiet operation, wide range of gear ratios, long life and maximum efficiency.
    ● Gear Ratio: 3~200
    ● Maximum Permissible Torque: 3Nm
    ● Dimension: 60mm*60mm*32/42mm
    ● RoHS Compliant
    Brand Name: MOONS'
    Price: USD  30.0  -  35.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

    Gearboxes

    Most modern gearboxes are used to increase torque while reducing the speed of a prime mover output shaft

    Reduction ratio calculation
    Output Speed=Motor Speed/Gear Ratio

    Gear Ratios: Up to 20 Ratios from 3:1 to 200:1

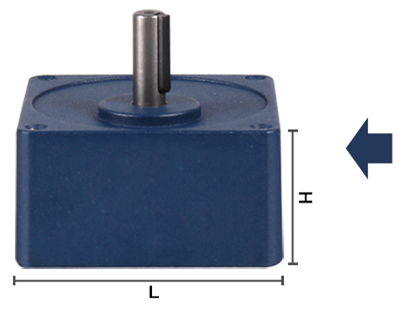

    L H(Ratio: 3~18) H(Ratio: 20~200)
    60mm 32mm 42mm
    60mm Motors match 60mm Gearboxes   70mm Motors match 70mm Gearboxes
    80mm Motors match 80mm Gearboxes   90mm Motors match 90mm Gearboxes
    100mm Motors match 100mm Gearboxes

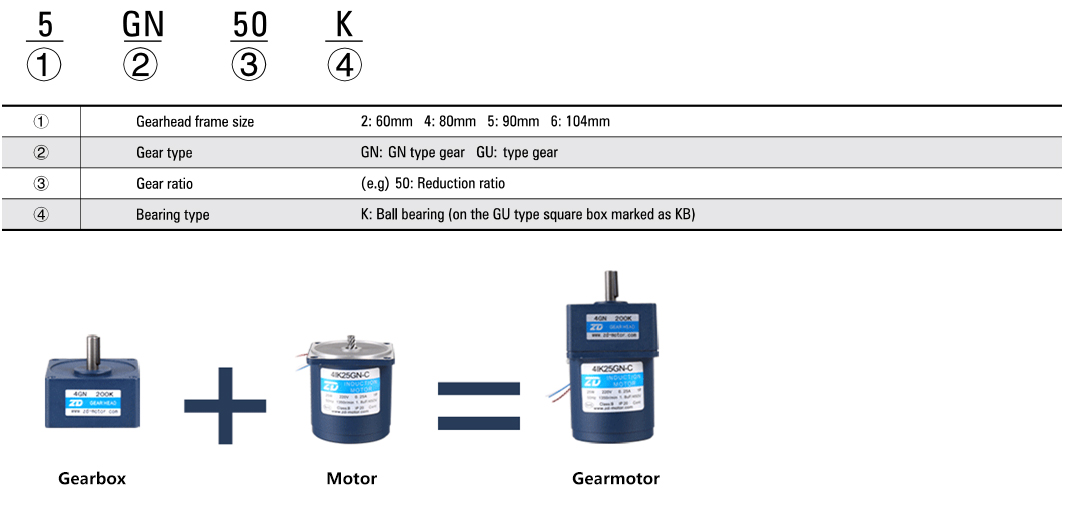

     Square Shape Gearbox

    COMMON SPECIFICATIONS

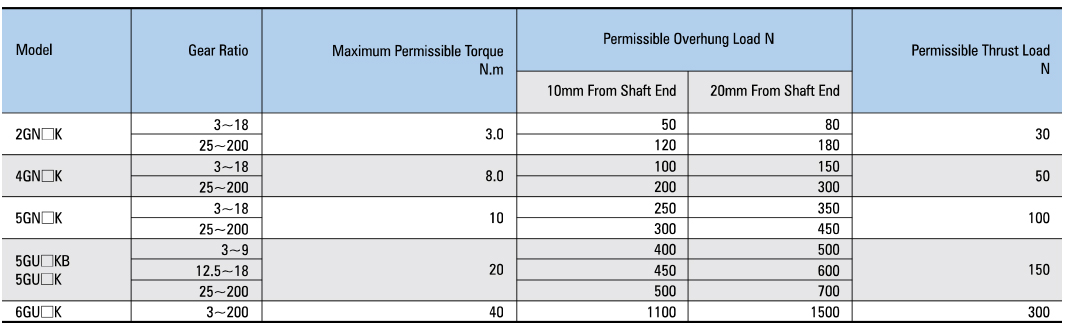

      Permissible Overhung Load And Permissible Thrust Load Of Motor

     Permissible Overhung Load • Permissible thrust Load
    • Avoid thrust loads as much as possible. If thrust load is unavoidable, keep it to half or less of the motor mass.
      Allowable Suspension Load Of Motor•Allowable Axial Load
      Permissible Load Inertia For Gearhead J

     • When a high load inertia ( J ) is connected to a gearhead, high torque is exerted instantaneously on the gearhead when starting up in frequent, discontinuous operations ( or when stopped by an electromagnetic brake, or when stopped instantaneously by a brake pack). Excessive impact loads can cause the gearhead or motor damage.
    • The table below gives values for permissible load inertia on the motor shaft. Use the motor and gearhead within these parameters. The permissible inertial load value shown for three-phase motors is the value when reversing after a stop.
    • The permissible load inertia ( J ) on the gearhead output shaft is calculated with the following equation.
    • The life of the gearhead when operating at the permissible inertia load with instantaneous stops of the motors with electromagnetic brakes, brake packs or speed control motors is at least 2 millon cycles.
      Permissible Load Inertia For Gear Head Output Shaft
      The Calculation For The Permissible Torque Of Gearhead

     Permissible torque for some products are omitted. In that case, use the equation below to catculate the permissible torque.

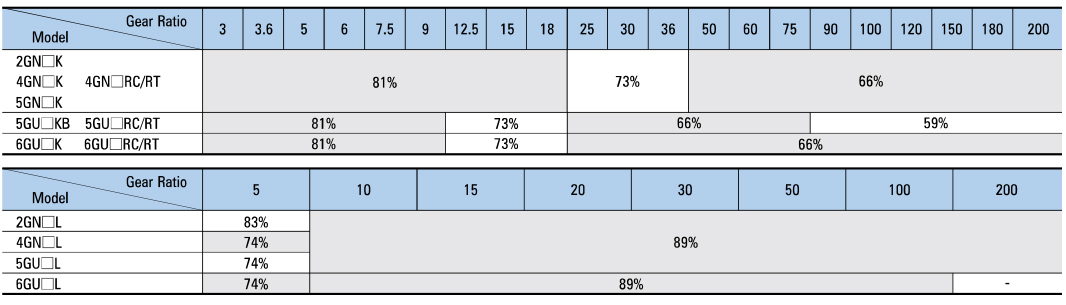

      Gearhead Efficiency

    Compare Item Price
    (USD)    		 Buy Now
    60GN03K $30.00
    60GN20K $35.00
    60GN05K $30.00
    60GN10K $30.00
    60GN15K $30.00
    60GN30K $35.00
    60GN50K $35.00
    60GN100K $35.00
    60GN200K $35.00
