    • STF Series Fieldbus Control DC Stepper Drives

    The STF series are high performance fieldbus control stepper drive which also integrates with built-in motion controller. The drives can be controlled by SCL, Modbus，CANopen, eSCL, EtherNet/IP or EtherCAT in real time. Motion profiles can also be programmed and stored in drives(Q Program) and then be triggered by fieldbus commands.
    ● Host Control
    ● Stand-Alone Programmable
    ● Safe & Convenient
    ● Abundant and flexible interface
    ● Anti-Resonance
    ● Torque Ripple Smoothing
    ● Auto Setup & Self Test
    Brand Name: MOONS'
    Price: USD  154.0  -  272.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Features
  • Software
  • Numbering System
  • Ordering Information

    • ■ Features

    The STF series are high performance fieldbus control stepper drive which also integrates with built-in motion controller. The drives can be controlled by SCL, Modbus，CANopen, eSCL, EtherNet/IP or EtherCAT in real time. Motion profiles can also be programmed and stored in drives(Q Program) and then be triggered by fieldbus commands.

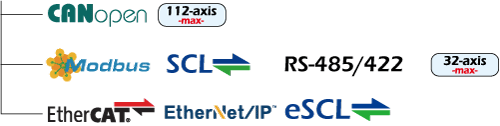

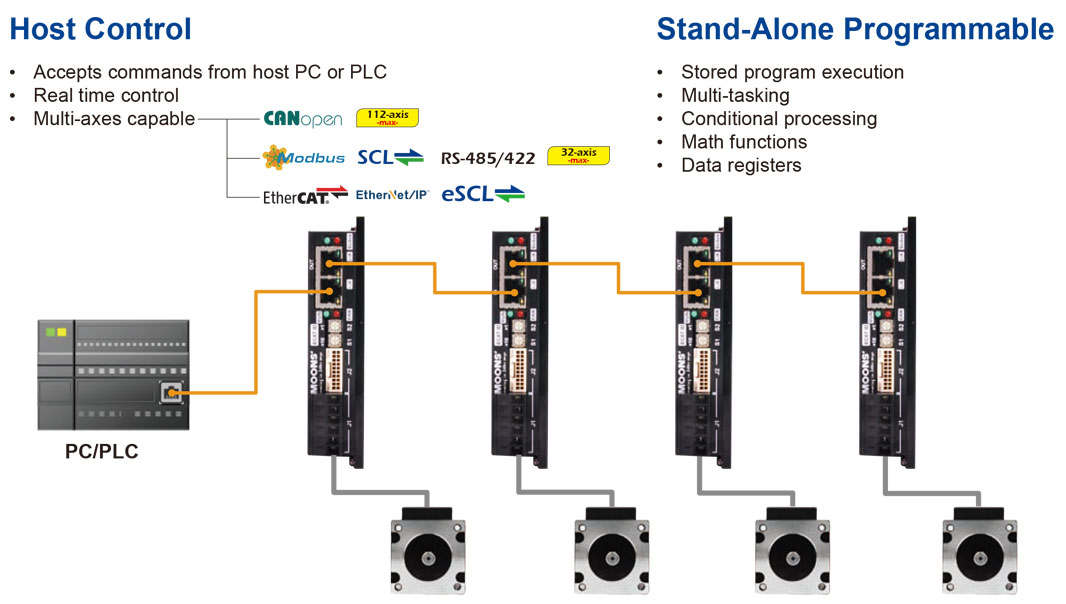

    Host Control
    • Accepts commands from host PC or PLC
    • Real time controlC
    • Multi-axes capable
    Stand-Alone Programmable
    • Stored program execution
    • Multi-tasking
    • Conditional processing
    • Math functions
    • Data registers
    步进伺服驱动器，步进伺服，全闭环步进伺服
    Safe & Convenient
    • Support communication and motor power cables
    disconnection protection
    ——Make equipments safer
    • Support on-line configuration by fieldbus
    ——Make operation more convenient

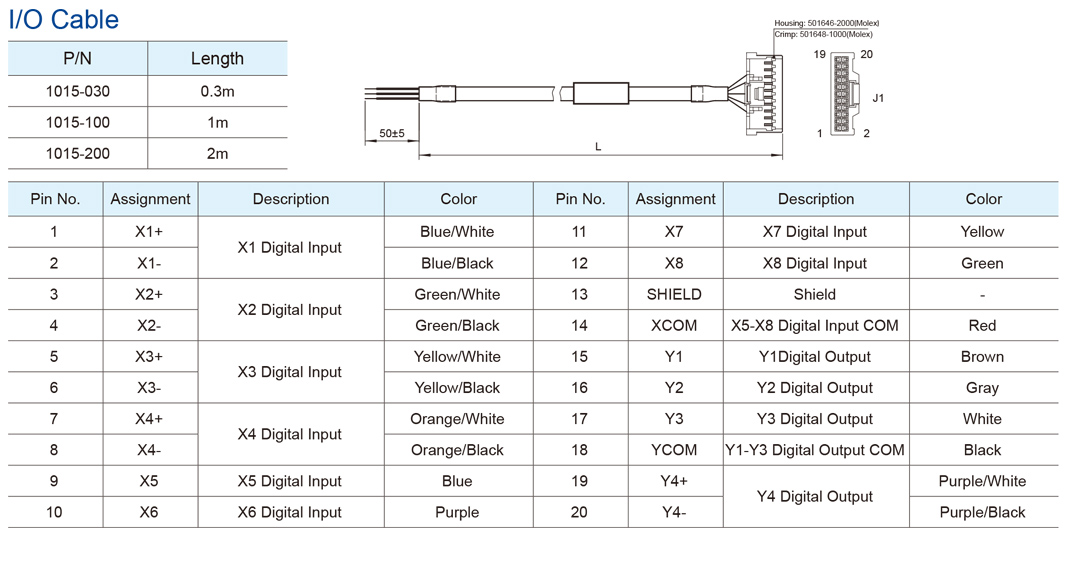

    Abundant and flexible interface
    • 8 Digital Inputs, 4 Digital Outputs
    ——Support for more feature settings

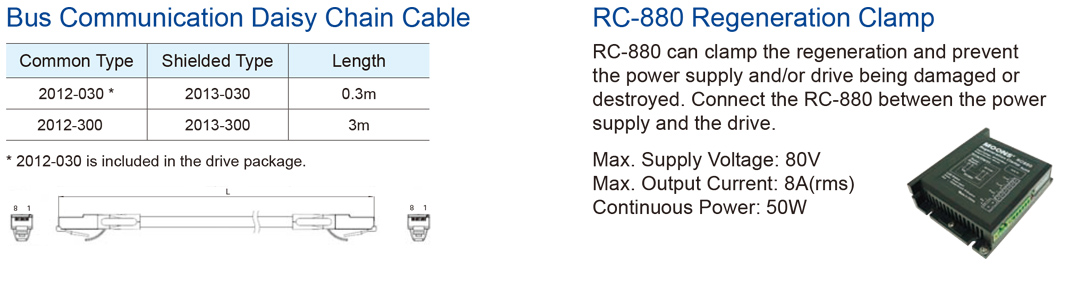

    • Dual Port RJ45 Bus Conmmunication Control
    ——Support daisy chain connection

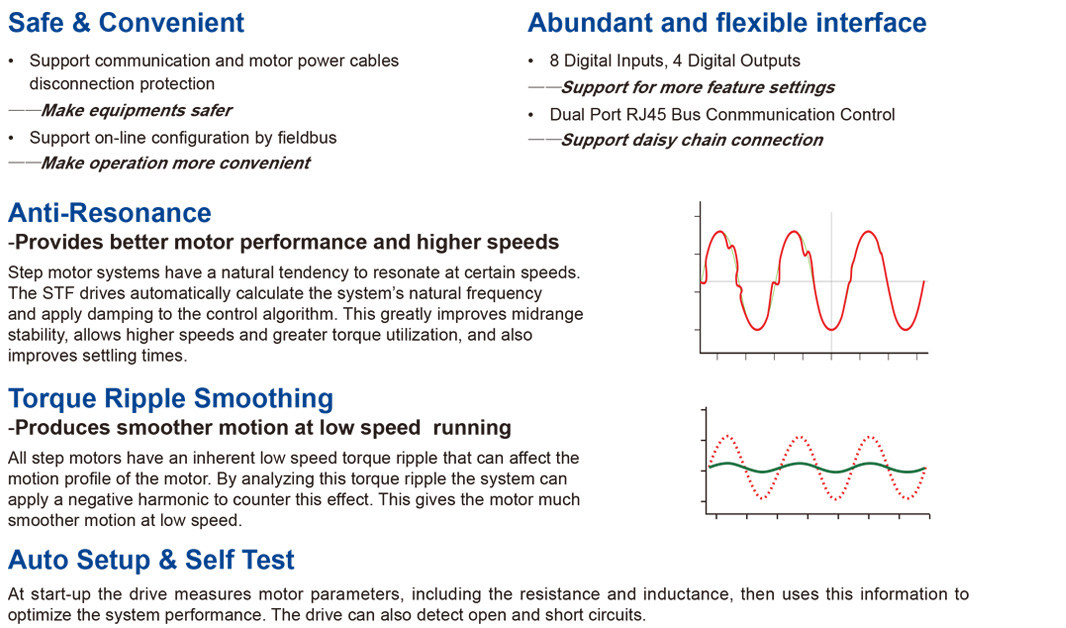

    Anti-Resonance
    -Provides better motor performance and higher speeds
    Step motor systems have a natural tendency to resonate at certain speeds.The STF drives automatically calculate the system’s natural frequency and apply damping to the control algorithm. This greatly improves midrange stability, allows higher speeds and greater torque utilization, and also improves settling times.

    Torque Ripple Smoothing
    -Produces smoother motion at low speed running
    All step motors have an inherent low speed torque ripple that can affect the motion profile of the motor. By analyzing this torque ripple the system can apply a negative harmonic to counter this effect. This gives the motor much smoother motion at low speed.

    Auto Setup & Self Test
    At start-up the drive measures motor parameters, including the resistance and inductance, then uses this information to optimize the system performance. The drive can also detect open and short circuits.

    ■ Software

    Stepper Suite   Free Download
    • Friendly interface
    • Easy setup in just three steps
    • Servo parameter tuning and sampling
    • Integrated Q programming interface
    • Motion Simulation and monitoring
    • Write and save SCL command scripts
    • Integrated online help
    • Support stepper and stepper servo series products
    RS485 Bus Utility   Free Download
    • Stream SCL commands from the command line
    • Simple interface with powerful capability
    • Easy setup with RS-485 for 32-axis network motion control
    • Monitoring the status of I/O, drive, alarm and the other nine most useful motion parameters
    • Write and save SCL command scripts
    • Online help integrated
    • Supports all RS-485 drives

    CANopen Test Tool   Free Download
    • Intuitive interface
    • Drive status and alarm monitoring
    • Self-test function to test drive/motor operation
    • Built-in SCL Terminal
    • Online help integrated
    • Supports all ST and STAC stepper drives
    • Supports all STM and SWM integrated steppers
    All software applications run on Windows 7/8/10/XP(Service Pack 3) 32-bit or 64-bit

    ■ Numbering System

    □  Standard Series

    *1 : STF05/10-ECX-H, SSDC05/10-R-H Only
    *2 : STF03-C-mini, STF06-ECX-mini Only

    □  Multi-Axis Series

    ■ Ordering Information

    UL Model Current Voltage Multi-functional Capability
    Modbus/RTU CANopen Modbus/TCP EtherNet/IP EtherCAT Profinet Q Program
      STF05-4X-ECX 0.1-5.0 A ※ 24-60 VDC         √
      STF104X-ECX 0.1-10.0 A ※ 24-60 VDC         √
      STF05-4X-ECX-S 0.1-5.0 A ※ 24-60 VDC         √
      STF10-4X-ECX-S 0.1-10.0 A ※ 24-60 VDC         √
      STF05-2XU-ECX 0.1-5.0 A ※ 24-60 VDC         √
      STF10-2XU-ECX 0.1-10.0 A ※ 24-60 VDC         √
      STF05-2XU-ECX-S 0.1-5.0 A ※ 24-60 VDC         √
      STF10-2XU-ECX-S 0.1-10.0 A ※ 24-60 VDC         √
      STF05-4XU-ECX 0.1-5.0 A ※ 24-60 VDC         √
      STF10-4XU-ECX 0.1-10.0 A ※ 24-60 VDC         √
      STF05-4XU-ECX-S 0.1-5.0 A ※ 24-60 VDC
      STF10-4XU-ECX-S 0.1-10.0 A ※ 24-60 VDC
    ★ STF05-ECX-H 0.1-5.0 A 24-48 VDC         √   √
    ★ STF10-ECX-H 0.1-10.0 A 24-60 VDC         √   √
      STF03-ECX 0.1-3.0 A 12-48 VDC         √   √
      STF06-ECX 0.1-6.0 A 12-48 VDC         √   √
    ★ STF05-R-H 0.1-5.0 A 24-48 VDC √           √
    ★ STF10-R-H 0.1-10.0 A 24-60 VDC √           √
      STF03-C-mini 0.1-3.0 A 12-48 VDC   √         √
      STF06-ECX-mini 0.1-6.0 A 12-48 VDC         √   √
      STF03-R 0.1 - 3.0 A 12 - 48 VDC √           √
    ★ STF05-R 0.1 - 5.0 A 24 - 48 VDC √           √
      STF06-R 0.1 - 6.0 A 12 - 48 VDC √           √
    ★ STF10-R 0.1 - 10.0 A 24-60 VDC √           √
      STF03-C 0.1 - 3.0 A 12 - 48 VDC   √         √
    ★ STF05-C 0.1 - 5.0 A 24 - 48 VDC   √         √
      STF06-C 0.1 - 6.0 A 12 - 48 VDC   √         √
    ★ STF10-C 0.1 - 10.0 A 24-60 VDC   √         √
      STF03-D 0.1 - 3.0 A 12 - 48 VDC     √       √
    ★ STF05-D 0.1 - 5.0 A 24 - 48 VDC     √       √
      STF06-D 0.1 - 6.0 A 12 - 48 VDC     √       √
    ★ STF10-D 0.1 - 10.0 A 24-60 VDC     √       √
      STF03-IP 0.1 - 3.0 A 12 - 48 VDC     √ √     √
    ★ STF05-IP 0.1 - 5.0 A 24 - 48 VDC     √ √     √
      STF06-IP 0.1 - 6.0 A 12 - 48 VDC     √ √     √
    ★ STF10-IP 0.1 - 10.0 A 24-60 VDC     √ √     √
    ★ STF05-PN 0.1 - 5.0 A 24-48 VDC           √ √
    ★ STF10-PN 0.1 - 10.0 A 24-60 VDC           √ √
    ※：STF05-2X continuous 2*5A；STF10-2X continuous 2*10A.STF05-4X continuous 4*5A；STF10-4X continuous 4*10A.
    ★：UL certified models.

    Data Sheet

  • Driver Specifications
  • Recommended Motors
    •

    Driver Specifications

    ■ Specifications

    Driver STF03 STF05 STF06 STF10
    Input Voltage 12-48VDC 24-60VDC 12-48VDC 24-60VDC
    Output Current Continuous Current 3A max Continuous Current 5A max Continuous Current 6A max Continuous Current 10A max
    Protection Over-voltage, under-voltage, over-temp, motor/winding shorts (phase-to-phase, phase-to-ground)
    Speed Ran Up to 3000rpm
    Filters Digital input noise filter, Analog input noise filter, Smoothing filter, PID filter, Notch filter
    Non-Volatile Storage Configurations are saved in FLASH memory on-board the DSP
    Ambient Temperature 0 to 40°C (32 to 104°F) when mounted to a suitable heatsink
    Ambient Humidity 90% Max., non-condensing
    Mass 0.16kg 0.3kg 0.16kg 0.3kg
    Motor AM&AW Series Stepper Motor

    ■ Technical specifications

    □ Multi-Axis Series

    Driver Type Digital Inputs Digital Outputs STO Bus Control PLC(Q programmer)
    STF**-4X-ECX EtherCAT 5DI*4 3DO*4 / EtherCAT /
    STF**-4X-ECX-S EtherCAT 5DI*4 3DO*4 √ EtherCAT /
    STF**-2XU-ECX EtherCAT 3DI*2 2DO*2 / EtherCAT /
    STF**-2XU-ECX-S EtherCAT 3DI*2 2DO*2 √ EtherCAT /
    STF**-4XU-ECX EtherCAT 3DI*4 2DO*4 / EtherCAT /
    STF**-4XU-ECX-S EtherCAT 3DI*4 2DO*4 √ EtherCAT /
    STF**-4XU-R RS485 3DI*4 2DO*4 / Modbus/RTU, SCL YES

    □ Standard Series

    Driver Type Digital Inputs Digital Outputs Bus Control PLC(Q programmer)
    STF**-ECX EtherCAT 8DI 4DO EtherCAT YES
    STF**-ECX-H EtherCAT 5DI 2DO EtherCAT YES
    STF**-ECX-mini EtherCAT 5DI 2DO EtherCAT YES
    STF**-R-H RS485 5DI 2DO Modbus/TCP, eSCL YES
    STF**-C-mini CANopen 2DI 1DO CANopen YES
    STF**-C CANopen 8DI 4DO CANopen YES
    STF**-D Ethernet 8DI 4DO Modbus/TCP, eSCL YES
    STF**-IP Ethernet 8DI 4DO Ethernet/IP, eSCL YES
    STF**-PN Profinet 8DI 4DO Ethernet/IP, eSCL YES

    ■ Recommended Motors

    □ Standard type step motor

    Model Features Length
    number    		 Length
    mm    		 Holding Torque
    N.m    		 Drive Current Setting Range ※
    A    		 Rotor Inertia
    g.cm2    		 Mass
    Kg    		 Mass Dielectric Strength
    AM6HY04A0-01N Single Shaft 4 30 0.0058 0.1 - 0.4 5.8 0.03 500VAC/1Minute
    AM8HY2050-01N Single Shaft 4 29.5 02 0.1 - 0.4 1.6 0.04 500VAC/1Minute
    AM8HY2050-02N Double Shaft 4 29.5 0.02 0.1 - 0.4 1.6 0.04 500VAC/1Minute
    AM8HY4043-01N Single Shaft 4 46.5 0.042 0.1 - 0.4 4.2 0.09 500VAC/1Minute
    AM8HY4043-02N Double Shaft 4 46.5 0.042 0.1 - 0.4 4.2 0.09 500VAC/1Minute
    AM11HS1008-07 Single Shaft 4 31.0 0.072 0.1 - 1.4 9 0.1 500VAC/1Minute
    AM11HS3007-02 Single Shaft 4 40.0 0.082 0.1 - 1.4 12 0.15 500VAC/1Minute
    AM11HS5008-01 Single Shaft 4 51.0 0.125 0.1 - 1.4 18 0.2 500VAC/1Minute
    AM11HS50A0-01 Single Shaft 4 51 0.2 0.1 - 1.4 18 0.2 500VAC/1Minute
    AM14HS10A0-01 Single Shaft 4 27.3 0.14 0.1 - 1.4 12 0.15 500VAC/1Minute
    AM14HS10A0-02 Double Shaft 4 27.3 0.14 0.1 - 1.4 12 0.15 500VAC/1Minute
    AM14HS30A0-01 Single Shaft 4 36 0.23 0.1 - 1.4 20 0.21 500VAC/1Minute
    AM14HS30A0-02 Double Shaft 4 36 0.23 0.1 - 1.4 20 0.21 500VAC/1Minute
    AM14HS50A0-01 Single Shaft 4 55.5 0.4 0.1 - 1.4 35 0.24 500VAC/1Minute
    AM14HS50A0-02 Double Shaft 4 55.5 0.4 0.1 - 1.4 35 0.24 500VAC/1Minute
    AM17HD4452-02N Single Shaft 4 34.3 0.285 0.1 - 2.1 38 0.23 500VAC/1Minute
    AM17HD4452-01N Double Shaft 4 34.3 0.285 0.1 - 2.1 38 0.23 500VAC/1Minute
    AM17HD2438-02N Single Shaft 4 39.8 0.46 0.1 - 2.1 57 0.28 500VAC/1Minute
    AM17HD2438-01N Double Shaft 4 39.8 0.46 0.1 - 2.1 57 0.28 500VAC/1Minute
    AM17HD6426-06N Single Shaft 4 48.3 0.59 0.1 - 2.1 82 0.36 500VAC/1Minute
    AM17HD6426-05N Double Shaft 4 48.3 0.59 0.1 - 2.1 82 0.36 500VAC/1Minute
    AM17HDB410-01N Single Shaft 4 62.8 0.85 0.1 -1.9 123 0.6 500VAC/1Minute
    AM17HDB410-02N Double Shaft 4 62.8 0.85 0.1 - 1.9 123 0.6 500VAC/1Minute
    AM23HS04A0-01 Single Shaft 4 39.0 0.82 0.1 - 2.5 105 0.4 500VAC/1Minute
    AM23HS04A0-02 Double Shaft 4 39.0 0.82 0.1 - 2.5 105 0.4 500VAC/1Minute
    AM23HS84A0-01 Single Shaft 4 55.0 1.5 0.1 - 2.5 215 0.6 500VAC/1Minute
    AM23HS84A0-02 Double Shaft 4 55.0 1.5 0.1 - 2.5 215 0.6 500VAC/1Minute
    AM23HSA4A0-01 Single Shaft 4 77.0 2.3 0.1 - 2.5 365 1.0 500VAC/1Minute
    AM23HSA4A0-02 Double Shaft 4 77.0 2.3 0.1 - 2.5 365 1.0 500VAC/1Minute
    AM23HS04B0-01 Single Shaft 4 39.0 0.82 0.1 - 5.2 105 0.4 500VAC/1Minute
    AM23HS04B0-02 Double Shaft 4 39.0 0.82 0.1 - 5.2 105 0.4 500VAC/1Minute
    AM23HS84B0-01 Single Shaft 4 55.0 1.5 0.1 - 5.2 215 0.6 500VAC/1Minute
    AM23HS84B0-02 Double Shaft 4 55.0 1.5 0.1 - 5.2 215 0.6 500VAC/1Minute
    AM23HSA4B0-01 Single Shaft 4 77.0 2.3 0.1 - 5.2 365 1.0 500VAC/1Minute
    AM23HSA4B0-02 Double Shaft 4 77.0 2.3 0.1 - 5.2 365 1.0 500VAC/1Minute
    AM23HS04B0-03 Single Shaft 4 39.0 0.82 0.1 - 5.2 105 0.4 500VAC/1Minute
    AM23HS04B0-04 Double Shaft 4 39.0 0.82 0.1 - 5.2 105 0.4 500VAC/1Minute
    AM23HS84B0-03 Single Shaft 4 55.0 1.5 0.1 - 5.2 215 0.6 500VAC/1Minute
    AM23HS84B0-04 Double Shaft 4 55.0 1.5 0.1 - 5.2 215 0.6 500VAC/1Minute
    AM23HSA4B0-03 Single Shaft 4 77.0 2.3 0.1 - 5.2 365 1.0 500VAC/1Minute
    AM23HSA4B0-04 Double Shaft 4 77.0 2.3 0.1 - 5.2 365 1.0 500VAC/1Minute
    AM24HS2402-08N Single Shaft 4 54.0 1.57 0.1 - 5.6 450 0.83 500VAC/1Minute
    AM24HS2402-11N Double Shaft 4 54.0 1.57 0.1 - 5.6 450 0.83 500VAC/1Minute
    AM24HS5401-10N Single Shaft 4 85.0 3.2 0.1 - 5.6 900 1.4 500VAC/1Minute
    AM24HS5401-24N Double Shaft 4 85.0 3.2 0.1 - 5.6 900 1.4 500VAC/1Minute
    AM34HD0404-08 Single Shaft 4 66.5 3.7 0.1 - 8.9 1100 1.6 500VAC/1Minute
    AM34HD0404-09 Double Shaft 4 66.5 3.7 0.1 - 8.9 1100 1.6 500VAC/1Minute
    AM34HD1404-06 Single Shaft 4 96.0 6.7 0.1 - 8.9 1850 2.7 500VAC/1Minute
    AM34HD1404-07 Double Shaft 4 96.0 6.7 0.1 - 8.9 1850 2.7 500VAC/1Minute
    AM34HD2403-07 Single Shaft 4 125.5 9.4 0.1 - 7.9 2750 3.8 500VAC/1Minute
    AM34HD2403-08 Double Shaft 4 125.5 9.4 0.1 - 7.9 2750 3.8 500VAC/1Minute
    AM34HD3402-01 Single Shaft 4 156.0 11.5 0.1 - 7.9 4400 5.2 500VAC/1Minute
    AM34HD3402-02 Double Shaft 4 156.0 11.5 0.1 - 7.9 4400 5.2 500VAC/1Minute
    AM34HM0404-S Single Shaft 4 61 3.7 0.1~8.82 1300 1.6 500VAC/1Minute
    AM34HM0404-D Double Shaft 4 61 3.7 0.1~8.82 1300 1.6 500VAC/1Minute
    AM34HM1404-S Single Shaft 4 91 6.4 0.1~8.82 1850 2.7 500VAC/1Minute
    AM34HM1404-D Double Shaft 4 91 6.4 0.1~8.82 1850 2.7 500VAC/1Minute
    AM34HM2403-S Single Shaft 4 119 9.4 0.1~7.84 2750 3.8 500VAC/1Minute
    AM34HM2403-D Double Shaft 4 119 9.4 0.1~7.84 2750 3.8 500VAC/1Minute
    AM34HM3402-S Single Shaft 4 147.5 11.5 0.1~7.84 5160 5.2 500VAC/1Minute
    AM34HM3402-D Double Shaft 4 147.5 11.5 0.1~7.84 5160 5.2 500VAC/1Minute
    ※ The current value of the driver is the sinusoidal peak.

    □ IP65 type motor

    Model Features Length
    number    		 Length
    mm    		 Holding Torque
    N.m    		 Drive Current Setting Range ※
    A    		 Rotor Inertia
    g.cm2    		 Mass
    Kg    		 Mass Dielectric Strength
    AM23HS2450-03 IP65 Motor 4 61.5 1.25 0.1 - 5.2 260 0.6 500VAC/1Minute
    AM23HS3455-05 IP65 Motor 4 83.7 2.2 0.1 - 5.2 460 1.0 500VAC/1Minute
    AM24HS5401-44N IP65 Motor 4 94.5 3.2 0.1 - 5.6 900 1.4 500VAC/1Minute
    AM34HD1404-13 IP65 Motor 4 98.0 6.7 0.1 - 8.9 1850 2.7 500VAC/1Minute
    AM34HD2403-13 IP65 Motor 4 127.5 9.4 0.1 - 7.9 2750 3.8 500VAC/1Minute
    ※ The current value of the driver is the sinusoidal peak.

    □ With brake type motor

    Model Features Length
    number    		 Length
    mm    		 Holding Torque
    N.m    		 Drive Current Setting Range ※
    A    		 Rotor Inertia
    g.cm2    		 Mass
    Kg    		 Mass Dielectric Strength
    AM17HD4452-BR01 Brake Motor 4+2 60.3 0.285 0.1 - 2.1 38 0.38 500VAC/1Minute
    AM17HD2438-BR01 Brake Motor 4+2 65.8 0.46 0.1 - 2.1 57 0.43 500VAC/1Minute
    AM17HD6426-BR01 Brake Motor 4+2 74.3 0.59 0.1 - 2.1 82 0.51 500VAC/1Minute
    AM17HDB410-BR01 Brake Motor 4+2 88.8 0.85 0.1 - 1.9 123 0.75 500VAC/1Minute
    AM23HS04B0-BR01 Brake Motor 4+2 80.0 0.82 0.1 - 5.2 105 1.5 500VAC/1Minute
    AM23HS84B0-BR01 Brake Motor 4+2 96.0 1.5 0.1 - 5.2 215 1.5 500VAC/1Minute
    AM23HSA4B0-BR01 Brake Motor 4+2 118.0 2.3 0.1 - 5.2 365 1.5 500VAC/1Minute
    AM24HS2402-BR01 Brake Motor 4+2 95.0 1.57 0.1 - 5.6 450 1.03 500VAC/1Minute
    AM24HS5401-BR01 Brake Motor 4+2 126.0 3.2 0.1 - 5.6 900 1.6 500VAC/1Minute
    AM34HD0404-BR01 Brake Motor 4+2 118.5 3.7 0.1 - 8.9 1100 2.2 500VAC/1Minute
    AM34HD1404-BR01 Brake Motor 4+2 148.0 6.7 0.1 - 8.9 1850 3.3 500VAC/1Minute
    AM34HD2403-BR01 Brake Motor 4+2 177.5 9.4 0.1 - 7.9 2750 4.4 500VAC/1Minute
    ※ The current value of the driver is the sinusoidal peak.

    □ Encoder type motor

    Model Features Length
    number    		 Length
    mm    		 Holding Torque
    N.m    		 Drive Current Setting Range ※
    A    		 Rotor Inertia
    g.cm2    		 Mass
    Kg    		 Mass Dielectric Strength
    AM17HD4452-F1000D External Encoder Motor 4 34.3 0.285 0.1 - 2.1 38 0.24 500VAC/1Minute
    AM17HD2438-F1000D External Encoder Motor 4 39.8 0.46 0.1 - 2.1 57 0.29 500VAC/1Minute
    AM17HD6426-F1000D External Encoder Motor 4 48.3 0.59 0.1 - 2.1 82 0.37 500VAC/1Minute
    AM17HDB410-F1000D External Encoder Motor 4 62.8 0.85 0.1 - 1.9 123 0.61 500VAC/1Minute
    AM23HS04A0-F1000D External Encoder Motor 4 39 0.82 0.1 - 2.5 105 0.41 500VAC/1Minute
    AM23HS84A0-F1000D External Encoder Motor 4 55 1.5 0.1 - 2.5 215 0.61 500VAC/1Minute
    AM23HSA4A0-F1000D External Encoder Motor 4 77 2.3 0.1 - 2.5 365 1.01 500VAC/1Minute
    AM23HS04B0-F1000D External Encoder Motor 4 39 0.82 0.1 - 5.2 105 0.41 500VAC/1Minute
    AM23HS84B0-F1000D External Encoder Motor 4 55 1.4 0.1 - 5.2 215 0.61 500VAC/1Minute
    AM23HSA4B0-F1000D External Encoder Motor 4 77 2.3 0.1 - 5.2 365 1.01 500VAC/1Minute
    AM24HS2402-F1000D External Encoder Motor 4 54 1.57 0.1 - 5.6 450 0.84 500VAC/1Minute
    AM24HS5401-F1000D External Encoder Motor 4 85 3.2 0.1 - 5.6 900 1.41 500VAC/1Minute
    AM34HD0404-F1000D External Encoder Motor 4 66.5 3.7 0.1 - 8.9 1100 1.61 500VAC/1Minute
    AM34HD1404-F1000D External Encoder Motor 4 96 6.7 0.1 - 8.9 1850 2.71 500VAC/1Minute
    AM34HD2403-F1000D External Encoder Motor 4 125.5 9.4 0.1 - 7.9 2750 3.81 500VAC/1Minute
    AM34HD3402-F1000D External Encoder Motor 4 156 11.5 0.1 - 7.9 4400 5.21 500VAC/1Minute
    ※ The current value of the driver is the sinusoidal peak.

    □ Gearbox type motor

    Model Features Length
    number    		 Length
    mm    		 Holding Torque
    N.m    		 Drive Current Setting Range ※
    A    		 Rotor Inertia
    g.cm2    		 Mass
    Kg    		 Mass Dielectric Strength
    AM17HD4452-PG05 5 speed reducer motor 4 101.8 1.25 0.1 - 2.1 950 0.55 500VAC/1Minute
    AM17HD4452-PG10 10 speed reducer motor 4 101.8 2.5 0.1 - 2.1 3800 0.55 500VAC/1Minute
    AM17HD4452-PG20 20 speed reducer motor 4 114.8 5 0.1 - 2.1 15200 0.63 500VAC/1Minute
    AM17HD2438-PG05 5 speed reducer motor 4 107.3 2 0.1 - 2.1 1425 0.6 500VAC/1Minute
    AM17HD2438-PG10 10 speed reducer motor 4 107.3 4 0.1 - 2.1 5700 0.6 500VAC/1Minute
    AM17HD2438-PG20 20 speed reducer motor 4 120.3 8 0.1 - 2.1 22800 0.68 500VAC/1Minute
    AM17HD6426-PG05 5 speed reducer motor 4 115.8 2.5 0.1 - 2.1 2050 0.68 500VAC/1Minute
    AM17HD6426-PG10 10 speed reducer motor 4 115.8 5 0.1 - 2.1 8200 0.68 500VAC/1Minute
    AM17HD6426-PG20 20 speed reducer motor 4 128.8 10 0.1 - 2.1 32800 0.76 500VAC/1Minute
    AM17HDB410-PG05 5 speed reducer motor 4 130.3 4.25 0.1 - 1.9 3075 0.92 500VAC/1Minute
    AM17HDB410-PG10 10 speed reducer motor 4 130.3 8.5 0.1 - 1.9 12300 0.92 500VAC/1Minute
    AM17HDB410-PG20 20 speed reducer motor 4 143.3 17 0.1 - 1.9 49200 1.0 500VAC/1Minute
    AM23HS04B0-PG05 5 speed reducer motor 4 112.5 4.1 0.1 - 5.2 2625 1.23 500VAC/1Minute
    AM23HS04B0-PG10 10 speed reducer motor 4 112.5 8.2 0.1 - 5.2 10500 1.23 500VAC/1Minute
    AM23HS04B0-PG20 20 speed reducer motor 4 125.5 16.4 0.1 - 5.2 42000 1.44 500VAC/1Minute
    AM23HS84B0-PG05 5 speed reducer motor 4 128.5 7.5 0.1 - 5.2 5375 1.43 500VAC/1Minute
    AM23HS84B0-PG10 10 speed reducer motor 4 128.5 15 0.1 - 5.2 21500 1.43 500VAC/1Minute
    AM23HS84B0-PG20 20 speed reducer motor 4 141.5 30 0.1 - 5.2 86000 1.64 500VAC/1Minute
    AM23HSA4B0-PG05 5 speed reducer motor 4 150.5 11.5 0.1 - 5.2 9125 1.83 500VAC/1Minute
    AM23HSA4B0-PG10 10 speed reducer motor 4 150.58 23 0.1 - 5.2 36500 1.83 500VAC/1Minute
    AM23HSA4B0-PG20 20 speed reducer motor 4 163.5 46 0.1 - 5.2 146000 2.07 500VAC/1Minute
    AM24HS2402-PG05 5 speed reducer motor 4 127.5 6 0.1 - 5.6 112500 1.66 500VAC/1Minute
    AM24HS2402-PG10 10 speed reducer motor 4 127.5 12 0.1 - 5.6 45000 1.66 500VAC/1Minute
    AM24HS2402-PG20 20 speed reducer motor 4 140.5 24 0.1 - 5.6 180000 1.87 500VAC/1Minute
    AM24HS5401-PG05 5 speed reducer motor 4 158.5 12.5 0.1 - 5.6 22500 2.23 500VAC/1Minute
    AM24HS5401-PG10 10 speed reducer motor 4 158.5 25 0.1 - 5.6 90000 2.23 500VAC/1Minute
    AM24HS5401-PG20 20 speed reducer motor 4 171.5 50 0.1 - 5.6 360000 2.44 500VAC/1Minute
    AM34HD0404-PG05 5 speed reducer motor 4 170.5 15 0.1 - 8.9 27500 3.71 500VAC/1Minute
    AM34HD0404-PG10 10 speed reducer motor 4 170.5 30 0.1 - 8.9 110000 3.71 500VAC/1Minute
    AM34HD0404-PG20 20 speed reducer motor 4 188.5 60 0.1 - 8.9 440000 4.21 500VAC/1Minute
    AM34HD1404-PG05 5 speed reducer motor 4 210.0 25 0.1 - 8.9 46250 4.81 500VAC/1Minute
    AM34HD1404-PG10 10 speed reducer motor 4 210.0 50 0.1 - 8.9 185000 4.81 500VAC/1Minute
    AM34HD1404-PG20 20 speed reducer motor 4 218.0 100 0.1 - 8.9 740000 5.31 500VAC/1Minute
    AM34HD2403-PG05 5 speed reducer motor 4 229.5 35.5 0.1 - 7.9 68750 5.91 500VAC/1Minute
    AM34HD2403-PG10 10 speed reducer motor 4 229.5 71 0.1 - 7.9 275000 5.91 500VAC/1Minute
    AM34HD2403-PG20 20 speed reducer motor 4 247.5 142 0.1 - 7.9 1100000 6.41 500VAC/1Minute
    ※ The current value of the driver is the sinusoidal peak.

    Compare Item Price
    (USD)    		 Buy Now
    STF05-4XU-R N/A
    STF05-2XU-ECX N/A
    STF10-2XU-ECX N/A
    STF05-2XU-ECX-S N/A
    STF10-2XU-ECX-S N/A
    STF05-4XU-ECX N/A
    STF10-4XU-ECX N/A
    STF05-4XU-ECX-S N/A
    STF10-4XU-ECX-S N/A
    STF05-4X-ECX N/A
    STF10-4X-ECX N/A
    STF05-4X-ECX-S N/A
    STF10-4X-ECX-S N/A
    STF03-C-mini N/A
    STF06-ECX-mini N/A
    STF05-ECX-H $257.00
    STF10-ECX-H $272.00
    STF05-ECX-H-FC N/A
    STF10-ECX-H-FC N/A
    STF05-R-H N/A
    STF10-R-H $166.00
    STF05-R-H-FC N/A
    STF10-R-H-FC N/A
    STF03-R $154.00
    STF05-R $161.00
    STF05-R-FC N/A
    STF06-R $165.00
    STF10-R $176.00
    STF10-R-FC N/A
    STF03-C N/A
    STF05-C N/A
    STF05-C-FC N/A
    STF06-C $207.00
    STF10-C $218.00
    STF10-C-FC N/A
    STF03-D N/A
    STF05-D $202.00
    STF05-D-FC N/A
    STF06-D N/A
    STF10-D $217.00
    STF10-D-FC N/A
    STF03-IP N/A
    STF05-IP $245.00
    STF05-IP-FC N/A
    STF06-IP $208.00
    STF10-IP $233.00
    STF10-IP-FC N/A
    STF05-PN N/A
    STF10-PN N/A
    STF05-PN-FC N/A
    STF10-PN-FC N/A
    STF03-ECX $247.00
    STF06-ECX N/A
       Torque Speed Curves

    AM8HY2050
    AM8HY4043
    AM11S1008

    AM11HS3007
    AM11HS5008
    AM14HS10A0

    AM14HS30A0
    AM14HS50A0
    AM17HD4452

    AM17HD2438
    AM17HD6426
    AM17HDB410

    AM23HS0420
    AM23HS2450
    AM23HS3454

    AM23HS0421
    AM23HS2450
    AM23HS3455

    AM23HS04B0
    AM23HS84B0
    AM23HSA4B0

    AM24HS2402
    AM24HS5401
    AM34HD0404

    AM24HS2402
    AM24HS5401
    AM34HD0404

    AM34HD1404
    AM34HD2403
    AM34HD3402

    AM34HD1404
    AM34HD2403
    AM34HD3402

    AM34HD1404

    Dimension

    ■  Mechanical Dimensions (Unit:mm)

    ■  Multi-Axis Series

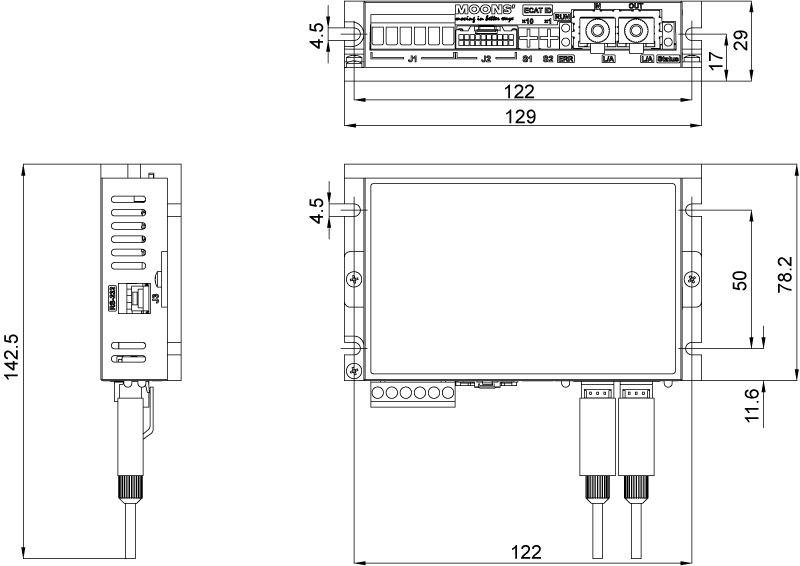

    □  STF05/10-4X-ECX, STF05/10-4X-ECX-S
    Host Control, MOONS, stepper drive
    □  STF05/10-2XU-ECX
    Host Control, MOONS, stepper drive

    □  STF05/10-2XU-ECX-S
    Host Control, MOONS, stepper drive
    □  STF05/10-4XU-ECX
    Host Control, MOONS, stepper drive

    □  STF05/10-4XU-ECX-S
    Host Control, MOONS, stepper drive
    □  STF05-4XU-R
    Host Control, MOONS, stepper drive


    ■  Standard Series

    □  STF03-C-mini
    Host Control, MOONS, stepper drive
    □  STF06-ECX-mini
    Host Control, MOONS, stepper drive

    □  STF05/10-ECX-H
    Host Control, MOONS, stepper drive
    □  STF03/06-ECX
    Host Control, MOONS, stepper drive

    □  STF05/10-R-H
    Host Control, MOONS, stepper drive
    □  STF05/10-R, STF05/10-C
    Host Control, MOONS, stepper drive

    □  STF03/06-R, STF03/06-C
    Host Control, MOONS, stepper drive
    □  STF05/10-D, STF05/10-IP
    Host Control, MOONS, stepper drive

    □  STF03/06-D, STF03/06-IP
    Host Control, MOONS, stepper drive

    Downloads
    2D Drawings
    Title Type Size（KB） Download
    STF05/10-R 2D.rar RAR 233
    STF03/06-R 2D.rar RAR 180
    STF05_10-ECX-H.pdf PDF 70
    STF03/06-D 2D.rar RAR 172
    STF-2XU-ECX 2D.pdf PDF 166
    STF03/06-IP 2D.rar RAR 172
    STF05/10-IP 2D.rar RAR 258
    STF05/10-D 2D.rar RAR 258
    STF03_06-ECX 2D.pdf PDF 159
    STF03/06-C 2D.rar RAR 180
    STF05_10-R-H.pdf PDF 71
    STF05/10-C 2D.RAR RAR 233
    STF06-ECX-mini 2D.pdf PDF 158
    STF05/10-4XU-ECX-S.pdf PDF 339
    STF-ECX 2D.pdf PDF 159
    STF-4X-ECX 2D.pdf PDF 274
    STF05/10-PN 2D.pdf PDF 251
    STF-2XU-ECX-S 2D.pdf PDF 306
    STF05-4XU-ECX 2D.pdf PDF 188
    STF05/10-4X-ECX-S 2D.pdf PDF 347
    STF03-C-mini 2D.pdf PDF 74
    STF10-PN-FC.pdf PDF 150
    STF05-ECX-H-FC.pdf PDF 124
    STF05-4XU-R 2D.pdf PDF 79
    STF10-ECX-H-FC.pdf PDF 120
    STF10-R-H-FC.pdf PDF 126
    STF05-IP-FC.pdf PDF 150
    STF10-4XU-ECX 2D.pdf PDF 187
    STF05-R-H-FC.pdf PDF 126
    STF10-C-FC.pdf PDF 152
    STF10-IP-FC.pdf PDF 149
    STF10-R-FC.pdf PDF 149
    STF05-PN-FC.pdf PDF 152
    STF05-R-FC.pdf PDF 149
    STF05-D-FC.pdf PDF 153
    STF05-C-FC.pdf PDF 151
    STF10-D-FC 2D.pdf PDF 151
    3D Model
    Title Type Size（KB） Download
    STF10-4XU-ECX 3D.stp STEP 26559
    STF03/06-ECX 3D.stp STEP 8354
    STF10-2XU-ECX-S 3D.stp STEP 6545
    STF03/06-R 3D.STEP STEP 6153
    STF10-R-H-FC 3D.stp STEP 5200
    STF03/06-D 3D.STEP STEP 5773
    STF06-ECX-mini-3D.stp STEP 23253
    STF05/10-4XU-ECX-S 3D.stp STEP 5217
    STF05/10-ECX-H 3D.stp STEP 5761
    STF05/10-R 3D.STEP STEP 6688
    STF10-R-FC 3D.STEP STEP 6688
    STF05/10-4X-ECX-S 3D.stp STEP 8066
    STF05/10-2XU-ECX 3D.stp STEP 5901
    STF05/10-IP 3D.STEP STEP 6621
    STF03-C-mini 3D.STEP STEP 8270
    STF05-C-FC 3D.STEP STEP 6688
    STF10-PN-FC 3D.STEP STEP 6621
    STF05-R-FC 3D.STEP STEP 6688
    STF05/10-D 3D.STEP STEP 6621
    STF10-IP-FC 3D.STEP STEP 6621
    STF10-C-FC 3D.STEP STEP 6688
    STF05-2XU-ECX-S 3D.stp STEP 6537
    STF05-ECX-H-FC 3D.stp STEP 5746
    STF03/06-C 3D.STEP STEP 6153
    STF10-ECX-H-FC 3D.stp STEP 5746
    STF05/10-C 3D.STEP STEP 6688
    STF05-4XU-ECX 3D.STEP STEP 6868
    STF05-PN-FC 3D.STEP STEP 6621
    STF05/10-4X-ECX 3D.stp STEP 7351
    STF05/10-R-H 3D.stp STEP 5227
    STF05/10-PN 3D.stp STEP 7859
    STF05-D-FC 3D.STEP STEP 6621
    STF05-R-H-FC 3D.stp STEP 5824
    STF03/06-IP 3D.STEP STEP 5773
    STF05-IP-FC 3D.STEP STEP 6621
    STF10-D-FC 3D.STEP STEP 6621
    Brochure
    Title Type Size（KB） Download
    STF Family Brochure-EN20240227 A8L.pdf PDF 4897
    User Manual
    Certification
    Software
       Delivery & Packaging



    Delivery & Packaging

    Logistics tracking

    Ensure your ordered products are always safely packaged from easy click to fast delivery to your hands

    Professional Product Label

    Considering all possible harsh application environments, MOONS' specially designed labels for each product, which pass water-resistance test, durability rub test, high temperature resistance and corrosion resistance tests.

    Besides, our product labels are attached with QR code linking to product details, which is convenient for clients to view the detail product page with their mobile phones.

    Note: This label design is suitable for products of stepper motor.

    (Professional packing box and unique appearance design)

    (Single item packed with EPE)

    (Multi-products packed with another box)

    Safely Packaging

    In order to ensure your shipments withstand the long trip and arrive safely and intact, MOONS' specially designed Individual package to pass the drop test with its stable structure.
    Besides，the package is made from recyclable materials, providing you with professional safety delivery.
    Whether just single item or multi-products the clients buy, all products are packed twice to avoid the damage further.

    Shipping Visualization

    For each case, products are carefully packed by experienced warehouse staff and the key processes are recorded by photos, which are then posted on our website, so that clients could clearly know the packing process and logistics status after placing order.

    (Product in the box)

    (Add the invoice)

    (Label the commodity)

    (The logistics waybill attached)

    Fast Delivery

    Fast Cross-Border Delivery
    MOONS' chooses DHL as our main international express shipping partner. As the world's leading logistics specialist, DHL provides our customers with fast and professional inter- national door-to-door delivery service.
    Estimated Delivery Time: e.g. China-USA major cities 3 business days.

    Professional
    Warehouse Management

    MOONS' has an experienced warehouse management team, all products and materials are clearly classified and neatly arranged.
