30W Dual-channel LED Intelligent Driver



30W Dual-channel LED Intelligent Driver



• Mini Case Size
• 60mA Dali Bus power
• Power measurement function
• Dim to 0.1%
• 16 bits resolution dimming
• Dimming curve (Linear/Log)
• TouchSetting (wireless programming)
• Flicker Free: CEC title 24 JA10/ IEEE PAR 1789-2015
• DT8/CCT, DT6/CCT, DT6 Solo/Dual Address
• IEC 62386 parts: 101,102,207,250,251,252,253

    Electrical Specification

    Product No. Input Range (Vac) Iout Range (mA) Vout Range (Vdc) Format Dimensions mm
    MU030S105BQI5220 90-305 150-1050 8-54 Back feed 102*64*29.5
    MU030S105BQI5320 90-305 150-1050 8-54 Side feed 102*64*29.5

    Dimension

    • MU030S105BQI5220DimensionMU030S105BQI5220

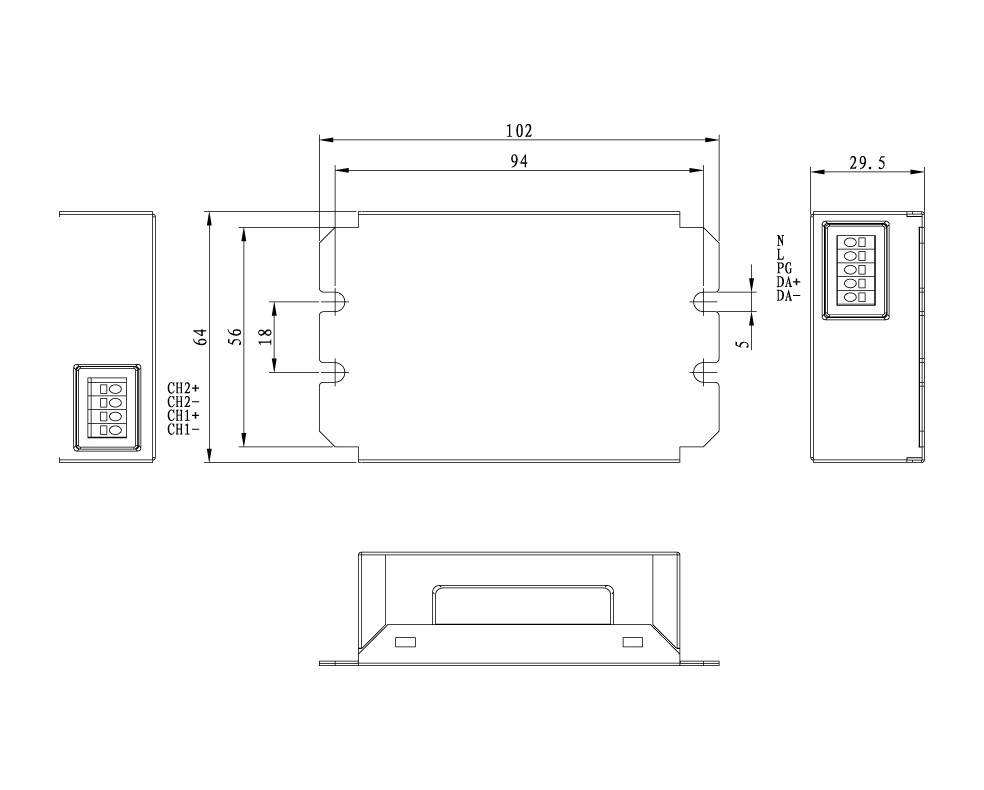

    • MU030S105BQI5320DimensionMU030S105BQI5320
