30W Single-channel
LED Intelligent Driver
• Dim to 0.1%
• Dimming Curve (Linear/log)
• 60mA Dali Bus power
• Power measurement function
• Flicker Free: CEC title 24 JA10/ IEEE PAR 1789-2015
• IEC 62386 parts: 101, 102, 207, 250, 251, 252, 253
Dimension
Dimension
Dimension
Electrical Specification
| Product No. | Input Range (Vac) | Iout Range (mA) | Vout Range (Vdc) | Format | Dimensions mm |

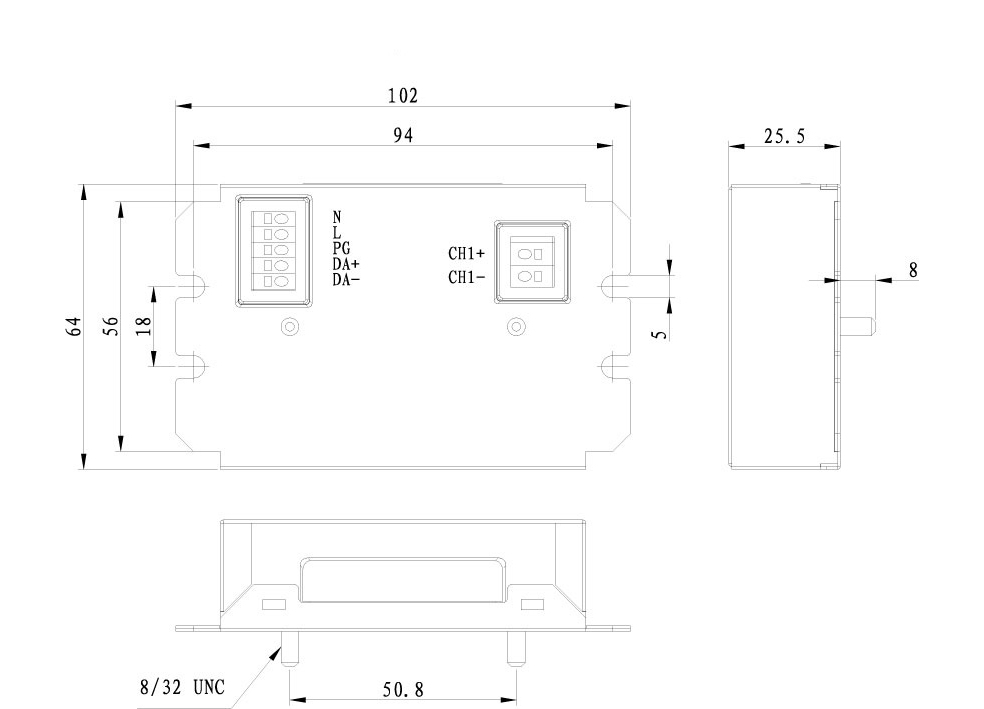

| MU030S150AQI3220 | 90-305 | 100-1500 | 8-54 | Back feed | 102*64*25.5 |

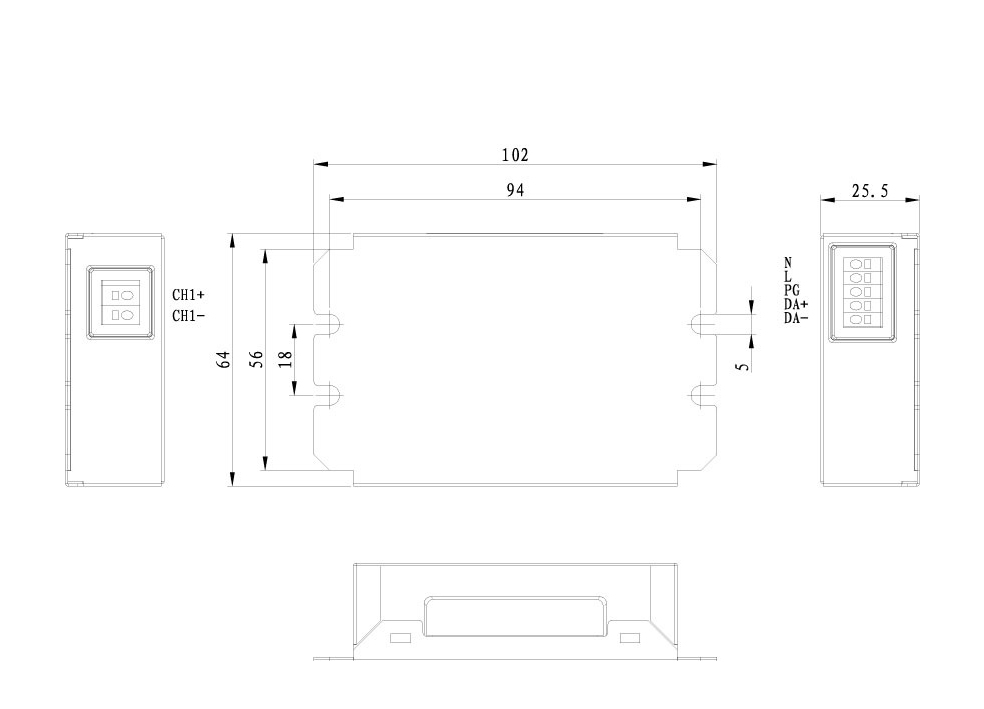

| MU030S150AQI3320 | 90-305 | 100-1500 | 8-54 | Side feed | 102*64*25.5 |

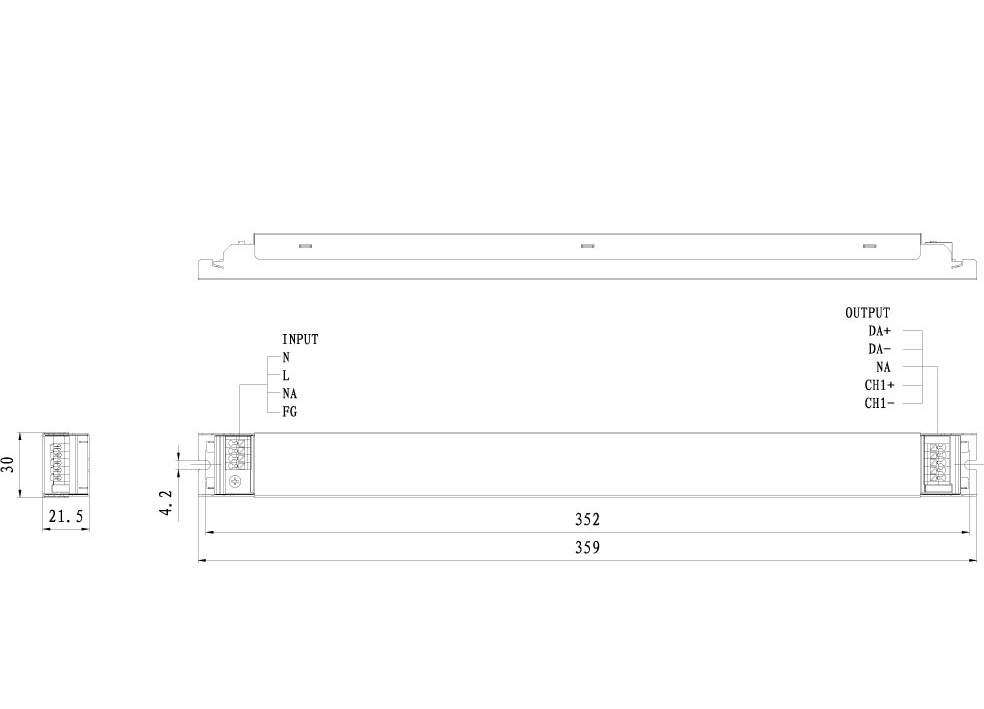

| MU030S150AQI3020 | 90-305 | 100-1500 | 8-54 | Slim | 359*30*21.5 |
Dimension
