    LED Driver Accessories provide advanced communication & programming features including selection of the dimming curve, dimming protocols (DALI, DMX, 0-10v) addressing (RDM, grouping strategy, and more), plus sensor interface, communications and reporting.
    ● Friendly user interface
    ● Easy to set the configuration of driver,export or import configuration file
    ● Change the dimming mode of driver via software
    Brand Name: MOONS'
    Price: USD  70.0  -  75.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • MSSL200
  • Smartkey
  • Touch Setting Tool

    • MSSL200

    MSSL200 is the programmer of CLKS or CP Series driver.

    The Programmable Driver Configurator Software and Configurator are compatible with MOONS' CLKS and CP drivers.They can be used to set the configuration parameters of MOONS' CLKS and CP drivers.
    MSSL200

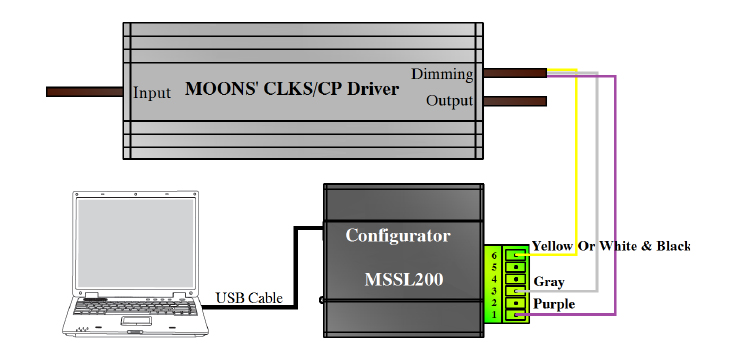

    The hardware connection
    The hardware connection

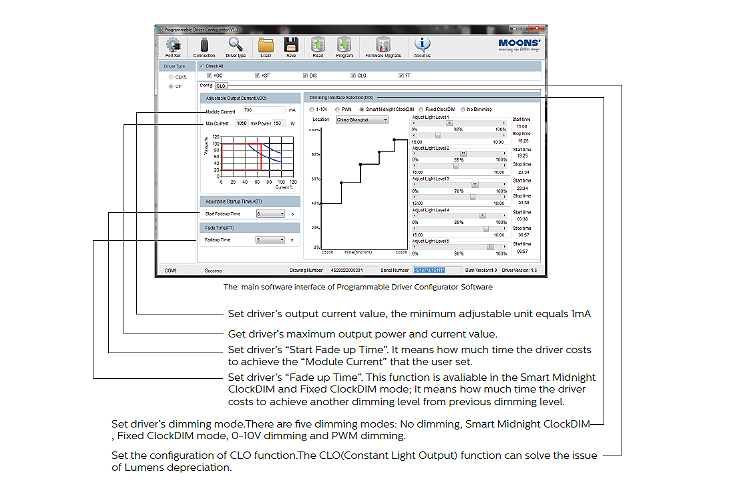

    Configurator interface and introduction
    Configurator interface and introduction

    Programming Video

    Smartkey

    Smartkey is the programmer of intelligent driver.

    All MOONS' intelligent drivers(0-10V, DALI, DMX) can be configured through programmer and Smartkey Network Software. Such as dimming solution, output current value, minimum dimming level, dimming curve.
    Smartkey

    The hardware connection
    The hardware connection
    The hardware connection
    Charged programming method
    Uncharged programming method


    Wire Connection between the Smartkey and LED Driver
    Port No. Smartkey Ver B0 (Figure 1) I Series (Figure 2) S Series (Figure 3) S Series (Figure 4)
    1 MCS+ MCS+ MCS+ MCS+
    2 MCS- MCS- MCS- MCS-
    3 15V_P LED 1+ LED 1+ AUX/S+ or SET+
    4 15V_G LED 1- LED 1- AUX/S- or SET-
    Smartkey Ver B0 (Figure 1) I Series (Figure 2) S Series (Figure 3) S Series (Figure 4)
    Figure 1 Figure 2 Figure 3 Figure 4


    Configurator interface and introduction
    Configurator interface and introduction

    Touch Setting Tool

    Touch Setting Tool is the programmer of MOONS' DALI, 0-10V, DMX Intelligent drivers.

    Touch Setting Tool is compatible with MOONS' DALI, 0-10V, DMX Intelligent driver. They can be used to set the configuration parameters of MOONS' DALI, 0-10V, DMX Intelligent driver.
    Touch Setting Tool

    Configurator interface and introduction
    Configurator interface and introduction

    Item Price
    (USD)    		 Buy Now
    MSSL200 $70.00
    SmartKey $75.00
    Touch Setting Tool(NFC) $75.00
