    • DCU17025 Coreless Brushed DC Motors

    Coreless Brushed DC Motor, Various of Gearboxes and Encoders are available, Small Size, High Torque, High Speed, Ø17mm, 3.5W, 11000rpm, Precious Metal Brushes
    ● Ironless winding
    ● Compact design
    ● Low current consumption
    ● No cogging
    ● Linear performance characteristic
    Brand Name: MOONS'
    Price: USD  98.0  -  294.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
    Data Sheet

    Specification

    Item Frame Size (mm) Length (mm) Nominal Voltage Rated Torque (mNm) Rated Current (A) Reduction Ratio Encoder Type Motor Type
    DCU17025P12-S001 Φ17 25 12Vdc 3.9 0.365 NA NA Motor
    DCU17025P24-S001 Φ17 25 24Vdc 3.89 0.195 NA NA Motor
    DCU17025G12-S002&PG16C-0004 Φ17 43.2 12Vdc 14.9 0.364 4 NA Motor + Gearhead
    DCU17025G12-S002&PG16C-0019 Φ17 43.2 12Vdc 57.6 0.364 19 NA Motor + Gearhead
    DCU17025G12-S002&PG16C-0084 Φ17 46.8 12Vdc 224.6 0.364 84 NA Motor + Gearhead
    DCU17025G12-S002&PG16C-0369 Φ17 50.4 12Vdc 500 0.222 369 NA Motor + Gearhead
    DCU17025G18-S005&R16-512&PG16C-0004 Φ17 48.6 12Vdc, 18Vdc, 24Vdc 14.7 0.25 4 512-line incremental magnetic encoder Motor + Encoder + Gearhead
    DCU17025G18-S005&R16-512&PG16C-0019 Φ17 48.6 12Vdc, 18Vdc, 24Vdc 57.3 0.25 19 512-line incremental magnetic encoder Motor + Encoder + Gearhead
    DCU17025G18-S005&R16-512&PG16C-0084 Φ17 52.2 12Vdc, 18Vdc, 24Vdc 223.4 0.25 84 512-line incremental magnetic encoder Motor + Encoder + Gearhead
    DCU17025G18-S005&R16-512&PG16C-0369 Φ17 55.8 12Vdc, 18Vdc, 24Vdc 500 0.154 369 512-line incremental magnetic encoder Motor + Encoder + Gearhead
    DCU17025G18-S006&R16-512&PG16C-0029 Φ17 48.6 12Vdc, 18Vdc, 24Vdc 86.9 0.25 29 512-line incremental magnetic encoder Motor + Encoder + Gearhead
    DCU17025G18-S006&R16-512&PG16C-0103 Φ17 52.2 12Vdc, 18Vdc, 24Vdc 275.1 0.25 103 512-line incremental magnetic encoder Motor + Encoder + Gearhead
    DCU17025G18-S006&R16-512&PG16C-0157 Φ17 52.2 12Vdc, 18Vdc, 24Vdc 400 0.241 157 512-line incremental magnetic encoder Motor + Encoder + Gearhead

    Compare Item Price
    (USD)    		 Buy Now
    DCU17025P12-S001 $98.00
    DCU17025P24-S001 $98.00
    DCU17025G18-S005&R16-512&PG16C-0004 $270.00
    DCU17025G18-S005&R16-512&PG16C-0019 $277.00
    DCU17025G18-S005&R16-512&PG16C-0084 $284.00
    DCU17025G18-S005&R16-512&PG16C-0369 $294.00
    DCU17025G18-S006&R16-512&PG16C-0029 $277.00
    DCU17025G18-S006&R16-512&PG16C-0103 $284.00
    DCU17025G18-S006&R16-512&PG16C-0157 $284.00
    DCU17025G12-S002&PG16C-0004 $146.00
    DCU17025G12-S002&PG16C-0019 $153.00
    DCU17025G12-S002&PG16C-0084 $160.00
    DCU17025G12-S002&PG16C-0369 $169.00
       Torque Speed Curves

    Torque Speed Curves

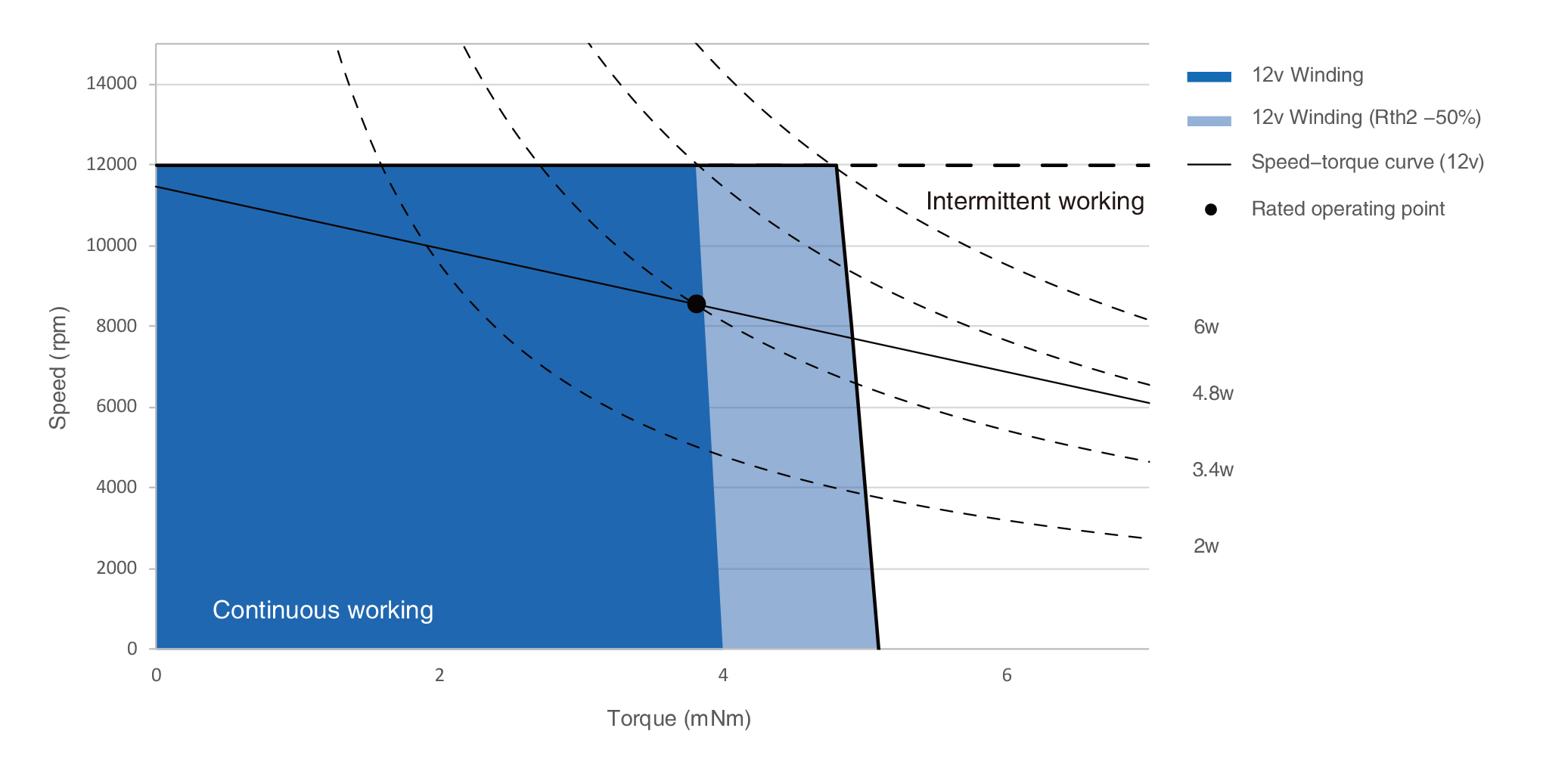

    Torque Speed Curve of DCU17025 Coreless Brushed DC Motors

    Dimension

    Dimension

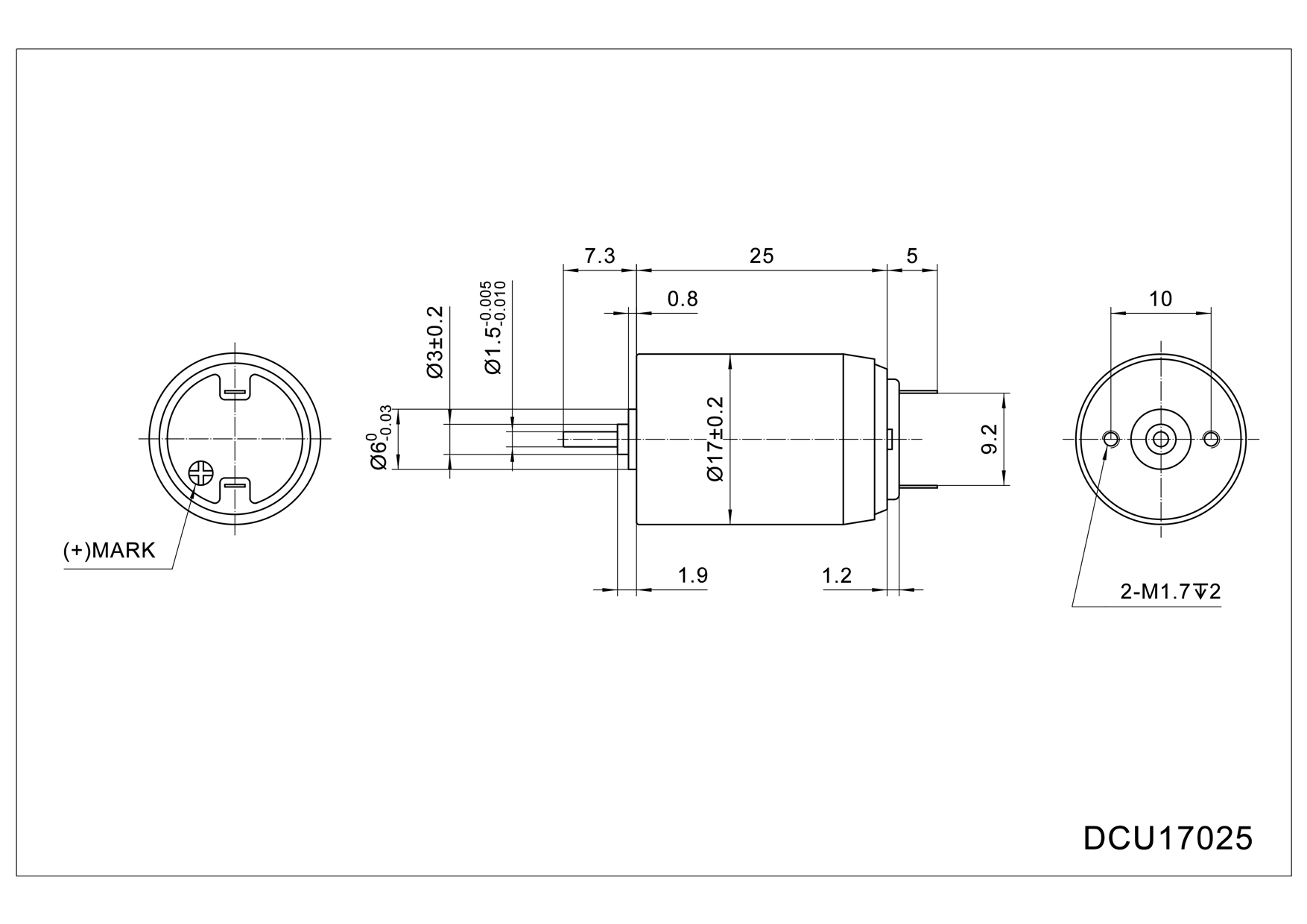

    Dimension of DCU17025 Coreless Brushed DC Motors
