ID ECU13038 Slotless BLDC Motors
Slotless BLDC Motor, Small Size, High Torque, High Speed, Ø13mm, 15W, 40000rpm
● Innovation design
● Perfect manufacturing
● Excellent performance
● Perfect manufacturing
● Excellent performance
Brand Name: MOONS'
Price:
USD
179.0
-
464.0
EA
Payment Methods
Buyer Protection:
Free Exchange
| Model Number | Diameter(mm) | Length(mm) | Maximum Power(W) | Nominal voltage(V) | Maximum speed(RPM) | Stall torque(mNm) | Stall current(A) |
|---|---|---|---|---|---|---|---|
| ECU13038H06 | Ø13 | 37.4 | 15 | 6 | 40000 | 22.1 | 9.23 |
| ECU13038H09 | Ø13 | 37.4 | 15 | 9 | 40000 | 27.1 | 7.38 |
| ECU13038H12 | Ø13 | 37.4 | 15 | 12 | 40000 | 26.2 | 5.19 |
| ECU13038H18 | Ø13 | 37.4 | 15 | 18 | 40000 | 29.9 | 4.23 |
| ECU13038H24 | Ø13 | 37.4 | 15 | 24 | 40000 | 25.8 | 2.73 |
| ECU13038H36 | Ø13 | 37.4 | 15 | 36 | 40000 | 33.6 | 2.46 |
| Compare | Item | Price (USD) |
Buy Now |
|---|---|---|---|
|
|
ECU13038H06-S001 | $179.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H09-S001 | $179.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H12-S001 | $179.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H18-S001 | $179.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H24-S001 | $179.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S001 | $179.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S004&MH13-1024 | $308.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S005&PG13M-0019 | $302.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S005&PG13M-0094 | $319.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S005&PG13M-0131 | $319.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S005&PG13M-0276 | $319.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H24-S005&PG13M-0094 | $319.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S008&MA13-12B&PG13M-0019 | $438.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S007&MH13-1024&PG13M-0019 | $430.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S007&MH13-1024&PG13M-0094 | $448.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S007&MH13-1024&PG13M-0131 | $448.00 |
Added to Your Shopping Cart
|
|
|
ECU13038H36-S007&MH13-1024&PG13M-0276 | $464.00 |
Added to Your Shopping Cart
|
Torque Speed Curves

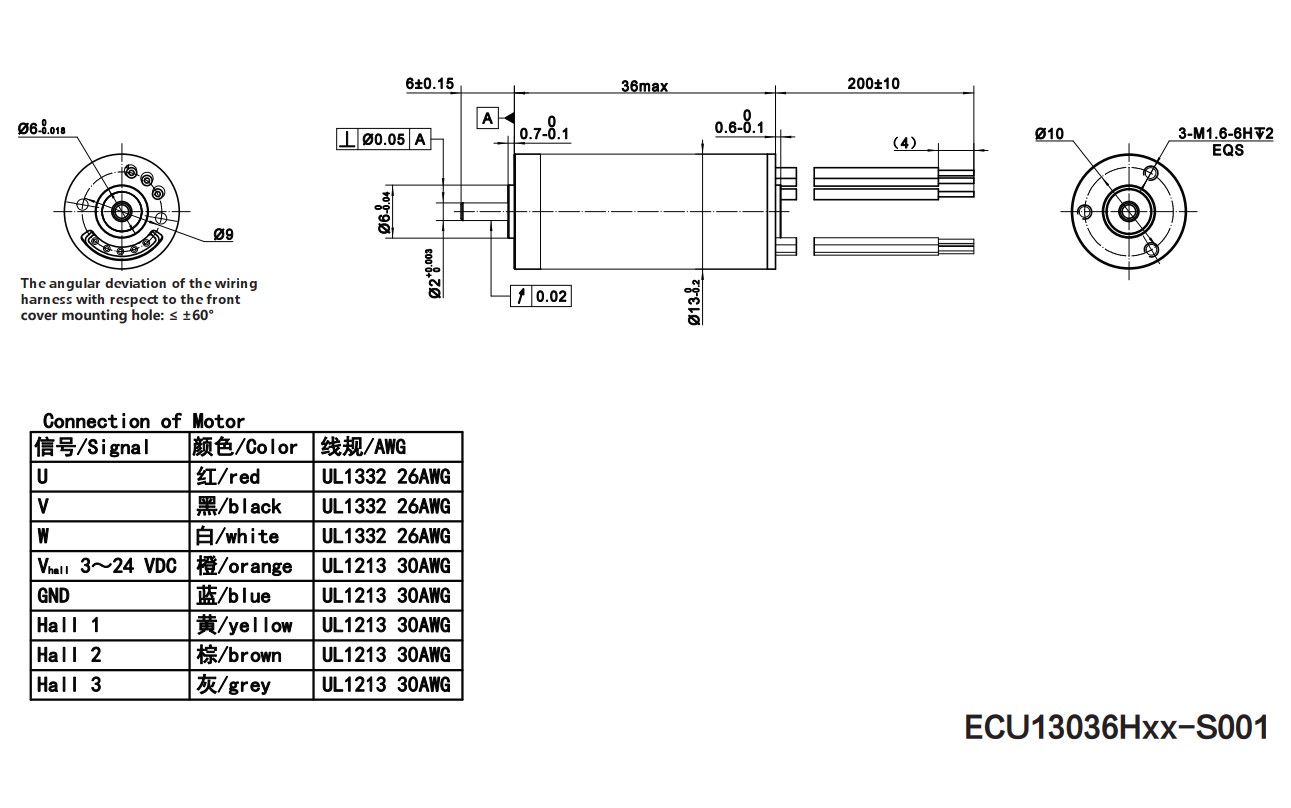

Dimension
2D Drawings
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| 4611180000735.pdf | 137 | ||
| 4611180000006.pdf | 50 | ||
| 4611180000629.pdf | 95 | ||
| 4611180000004.pdf | 50 | ||
| ECU13038H24-S005&PG13M-0094.pdf | 404 | ||
| 4611180000631.pdf | 95 | ||
| 4611180000007.pdf | 50 | ||
| 4611180000002.pdf | 47 | ||
| ECU13038H36-S005&PG13M-0094.pdf | 406 | ||
| 4611180000737.pdf | 137 | ||
| 4611180002040.pdf | 5415 | ||
| 4611180000739.pdf | 137 | ||
| 4611180000003.pdf | 50 | ||
| 4611180000312.pdf | 129 | ||
| 4611180000738.pdf | 138 | ||
| 4611180000630.pdf | 95 | ||
| 4611180000005.pdf | 50 |
3D Model
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| ECU13038 3D Model.step | STEP | 788 | |
| 4611180000735.stp | STEP | 1063 | |
| 4611180000737.stp | STEP | 1047 | |
| 4611180000312.stp | STEP | 1026 | |
| 4611180000738.stp | STEP | 1046 | |
| 4611180000630.stp | STEP | 1646 | |
| 4611180000739.stp | STEP | 1004 | |
| 4611180000279.stp | STEP | 1646 | |
| 4611180000335.STEP | STEP | 280 | |
| 4611180000631.stp | STEP | 278 | |
| 4611180000629.stp | STEP | 312 | |
| 4611180002040.stp | STEP | 1063 |
Torque Speed Curves
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| ECU13038H12 Torque Speed Curves.pdf | 1110 | ||
| ECU13038H24Torque Speed Curves.pdf | 940 | ||
| ECU13038H36 Torque Speed Curves.pdf | 1110 | ||
| ECU13038H06 Torque Speed Curves.pdf | 1110 | ||
| ECU13038H09 Torque Speed Curves.pdf | 1110 | ||
| ECU13038H18Torque Speed Curves.pdf | 1110 |
Catalog
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| Slotless Coreless Motors Catalog | 36093 |
Custom Design
Pinion
Bearing
Frange
Winding
Shaft
FPC
User instruction
Before you start to use Moons’EC motors, please read the following instruction carefully:①. The max permissible load on the output shaft of the motor and gearbox is limited. Exceeding the value may damage the motor or gearbox. For details, refer to the latest product catalog.
②. Overload the motor for a long time will damage the motor easily. The current rise will lead to rapid heat, high temperature will cause motor magnet demagnetization or motor winding damage. Over-current protection should be considering in your system.
③. The motor combination cannot be dropped from height.
④. The motor shaft are circular axis, you can use the coupling, fastening screw, viscose or laser welding. You should use the interference fit, compression and other methods to connect the load, and ensure that the motor shaft force does not exceed the specified value.
⑤. The output shaft can be machined by using the sleeve and machining the shaft directly.
⑥. Be sure to read the data or manuals carefully, wrong wiring and power supply may result in damaging the product.
⑦. MOONS’ EC motor hall sensor and encoders need to carry out ESD protection to prevent damage caused by static electricity.
⑧. When the drive unit is commissioned, it must be operated by qualified personnel to prevent personal injury.
②. Overload the motor for a long time will damage the motor easily. The current rise will lead to rapid heat, high temperature will cause motor magnet demagnetization or motor winding damage. Over-current protection should be considering in your system.
③. The motor combination cannot be dropped from height.
④. The motor shaft are circular axis, you can use the coupling, fastening screw, viscose or laser welding. You should use the interference fit, compression and other methods to connect the load, and ensure that the motor shaft force does not exceed the specified value.
⑤. The output shaft can be machined by using the sleeve and machining the shaft directly.
⑥. Be sure to read the data or manuals carefully, wrong wiring and power supply may result in damaging the product.
⑦. MOONS’ EC motor hall sensor and encoders need to carry out ESD protection to prevent damage caused by static electricity.
⑧. When the drive unit is commissioned, it must be operated by qualified personnel to prevent personal injury.
