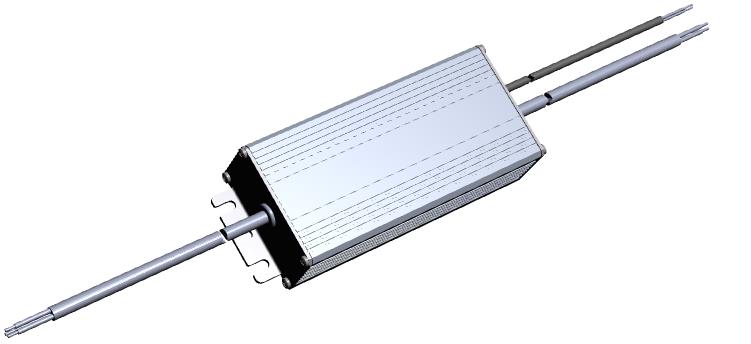

ME075MxxxAQ_CP Series

Ideal for higher lumen applications, the ME075MxxxAQ_CP Series is a 75W, constant-current, programmable outdoor LED driver that operate from 176~305 VAC input with excellent power factor.
● High Efficiency (Up to 90% typ.)
● All-Around Protection: OVP, SCP, OTP
● Certified with an IP67,CE
● Flicker-Free Dimming Across Wide Dimming Range
● 0-10V/PWM/Clock Dimming/Constant Current(ALL Dimming Functions Are Programmable)
● High Surge Immunity: L-N:±10KV,L/N-FG:±10KV
● 5-year Warranty
Brand Name: MOONS'
Price: USD  27.0  EA

* Free shipping to North America and most of Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

Description

ME075MxxxAQ_CP series is a 75W LED AC-DC driver featuring the constant current mode. This series operates from 176~305VAC and offers dimming models with different rated current that could be configured by MOONS' patented programmer--MSSL200.With the fan-less design, the entire series are able to operate for -40°C~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ME075MxxxAQ_CP is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Dimming Function Introduction

ME075MxxxAQ_CP is a programmable driver, all driver's parameters can be modified through MSSL200(The Programmer of CLKS or CP Series driver ),Such as output current value, start time, fade up time, selecting dimming mode (include modifying parameters in corresponding mode) and so on, which can meet other special and customized requirement, such as 75W/1000mA、75W/2000mA、75W/3000mA and so on. What’s more, the driver is compatible with charged or uncharged programming mode.

1. Accessory-MSSL200

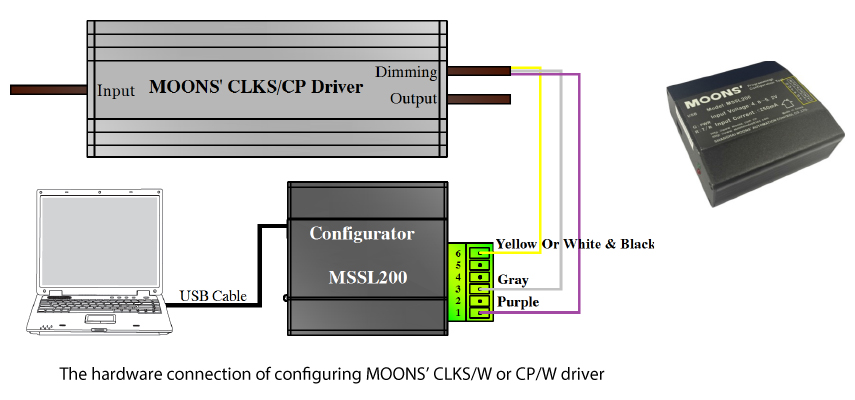

MSSL200 is the programmer of CLKS or CP Series driver.

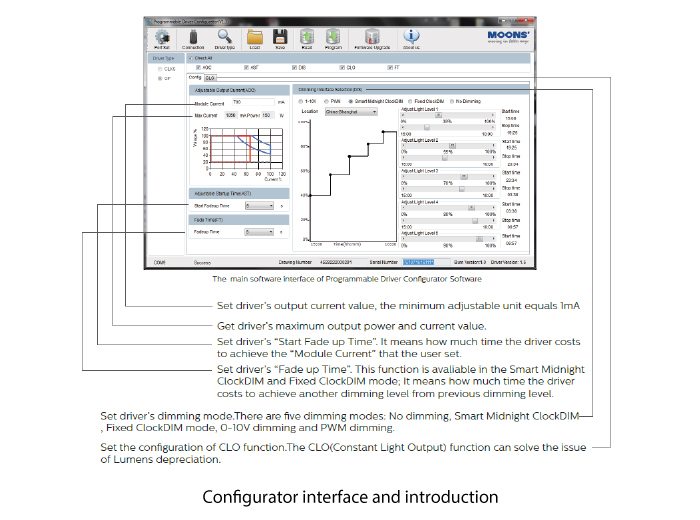

The Programmable Driver Configurator Software and Configurator are compatible with MOONS' CLKS and CP drivers. They can be used to set the configuration parameters of MOONS' CLKS and CP drivers.


2. Dimming Function-Constant Power

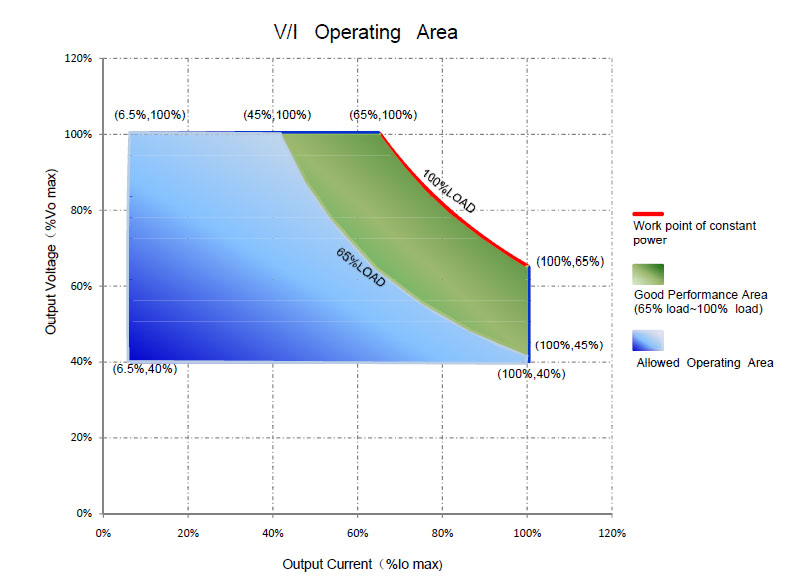

Output Current: 65%∼ 100% ×rated output current
This series driver could achieve rated output power while adjusting output current range at 65%-100% rated output current.

Note:output current setting range with constant power 65%~100% Iomax


3. Dimming Function-PWM/1-10V Dimming

Dimming Range: 6.5%∼ 100% ×rated output current
The CP series are perfectly compatible with PWM/1-10V signal dimmer. Enter the "PWM dimming mode" or "1-10V dimming mode", you can modify the minimum and maximum output parameters and corresponding voltage of dimming signal voltage.

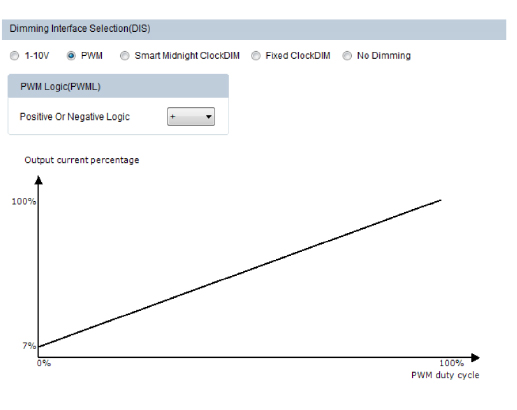

PWM Interface

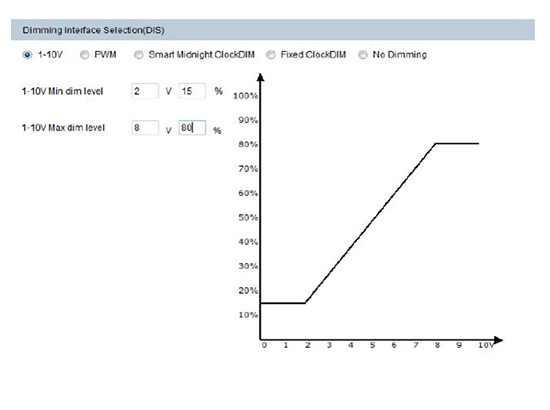

1-10V Interface


4. Dimming Function-Smart Midnight ClockDIM

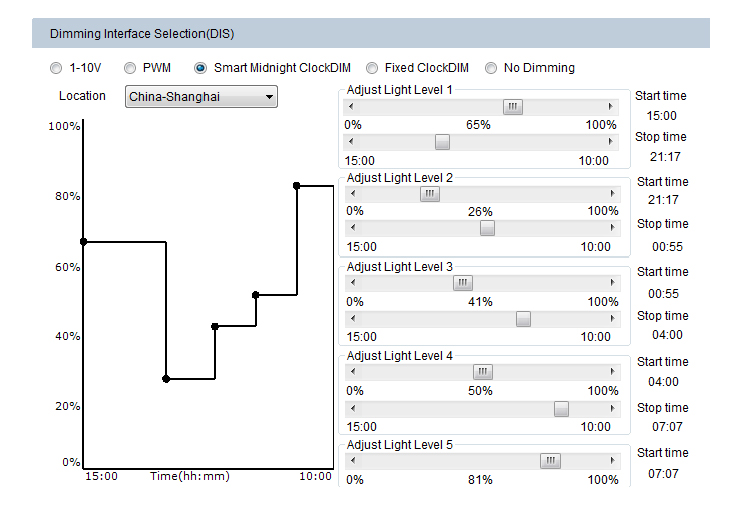

Smart Midnight ClockDIM has self-study Clock Dimming function. It can set 5 dimming level in the dimming plan through software. It also can adjust the starting time and ending time in the dimming plan everyday automatically according to the geographic position and average operating time. In other words, the CP series driver can adapt to the changeable starting and ending time due to the seasonal alteration by self-study function.

Smart Midnight ClockDIM Interface


5. Dimming Function-Fixed ClockDIM

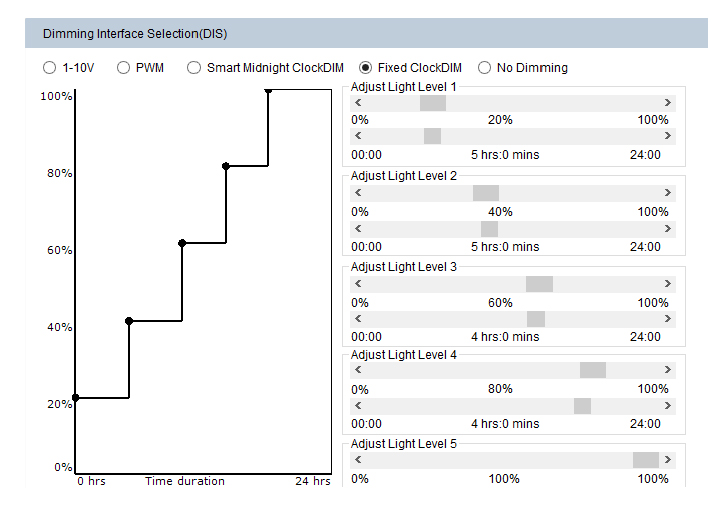

Users can set the dimming plan by separating 24 hours into 5 sections matching corresponding output current. Owing to the time is fixed, it has no self-study function.
For instance: Assuming the dimming plan like below table shows. If the driver is charged at 15:00pm, the driver will perform the dimming plan following the form shows.

Time Output
15:00~20:00 20%×Module Current
20:00~01:00 40%×Module Current
01:00~05:00 60%×Module Current
05:00~09:00 80%×Module Current
09:00~15:00 100%×Module Current

Fixed ClockDIM Interface

Applications
The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Different form factors are available for the perfect fit with your luminaire.

Street

Tunnel

Area

Architectural

High-Bay

Horticultural

Model list

Part Number Output Voltage Range Output Current Range Output Power Efficiency (Typ) Certification
220VAC
ME075M105AQ_CP 43-108VDC 70-1050mA 75W 90% CCC,ENEC
ME075M150AQ_CP 30-75VDC 100-1500mA 75W 89% CCC,ENEC
ME075M210AQ_CP 22-54VDC 140-2100mA 75W 88% CCC,ENEC
ME075M300AQ_CP 15-38VDC 200-3000mA 75W 88% CCC,ENEC
ME075M420AQ_CP 11-27VDC 280-4200mA 75W 87% CCC,ENEC

Specification

Input Voltage Range 176∼ 305Vac
Frequency 47∼ 63Hz
Power Factor 0.98(Typical),>0.9 at 220~277Vac input, with 70%~100% load conditions
Efficiency 90% Typical, depending on corresponding product
THD < 20%, at 220~277Vac input, with 70%~100% load conditions
Inrush Current 65A at 230Vac input 25°C cold start
Output Current Range when dimming 6.5%∼ 100% ×Io_max
Line Regulation ± 1%
Load Regulation ± 3%
Ripple Current Percentage[(PK-AV)/AV] 10% max (peak to average value) at 100% Io
Setup, Rise Time 0.5s (typ.), measured at 220Vac input
Operating Temperature -40~+70°C (Tc≤90°C)
Humidity 20~95%RH, non-condensing
MTBF 250,000 hours, measured at full load, 25°C ambient temperature MIL-HDBK-217F(25°C)
Surge Level L-N:± 10KV, L/N-PE:± 10KV
Reference Dimension(L×W×H) 173×67.5×37 mm
Weight 0.8kg
Safety Standard UL8750, UL1012, CAN/CSA-C22.2No.107.1-01,EN61347-1, EN61347-2-13

Model Encoding

Model Encoding

Compare Item Price
(USD)
Buy Now
ME075M210AQ_CP $27.00
ME075M105AQ_CP $27.00
ME075M150AQ_CP $27.00

tupian

tupian

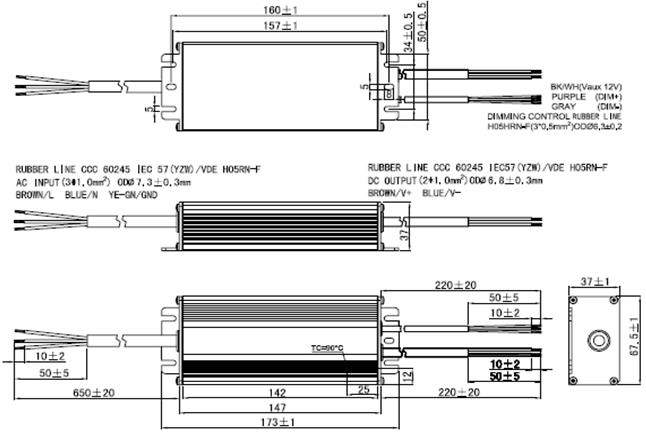

2D Drawings
Title Type Size(KB) Download
ME075MxxxAQ_CP 2D Drawing.pdf PDF 149
ME075M105AQ_CP 2D Drawing.pdf PDF 149
3D Model
Title Type Size(KB) Download
ME075M105AQ_CP 3D Model.STEP STEP 2495
Specifications
Catalog
Title Type Size(KB) Download
MOONS' LED Driver Catalogue PDF 18210
Certification
Title Type Size(KB) Download
ME075MxxxAQ_CP CCC.pdf PDF 2788
Software
Title Type Size(KB) Download
MSSL200 Programmable Driver Configurator Software_V2.10 RAR 4178
