ID MT240HxxxAQ_CP Series

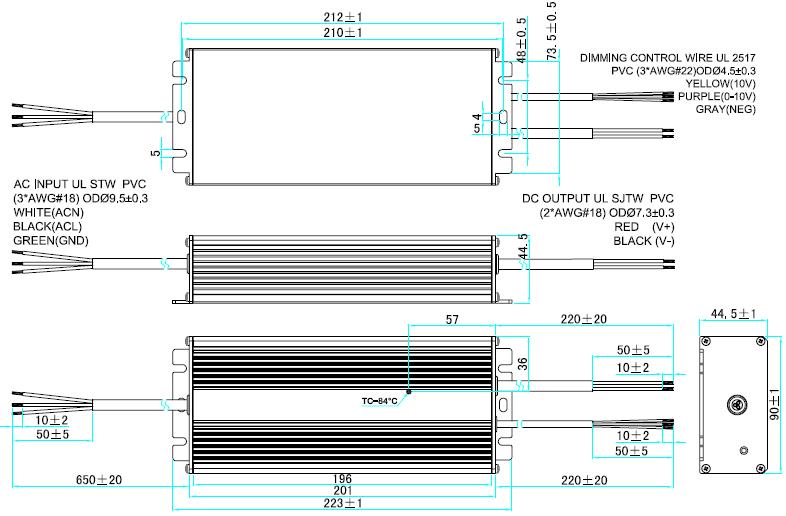

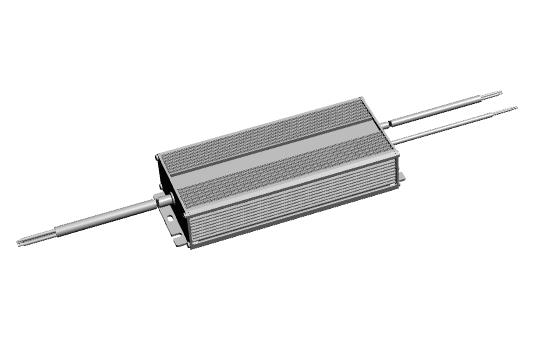

Description

Dimming Function Introduction

MT240HxxxAQ_CP is a programmable driver, all driver's parameters can be modified through MSSL200(The Programmer of CLKS or CP Series driver ),Such as output current value, start time, fade up time, selecting dimming mode (include modifying parameters in corresponding mode) and so on, which can meet other special and customized requirement, such as 240W/1000mA、240W/2000mA、240W/3000mA and so on. What’s more, the driver is compatible with charged or uncharged programming mode.

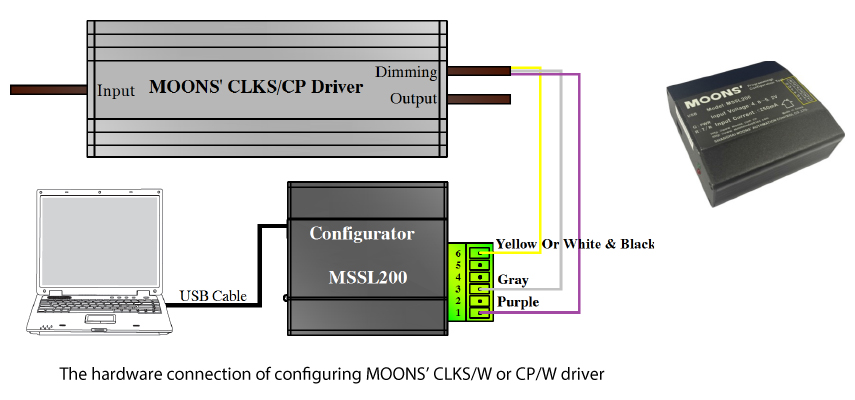

1. Accessory-MSSL200

MSSL200 is the programmer of CLKS or CP Series driver.

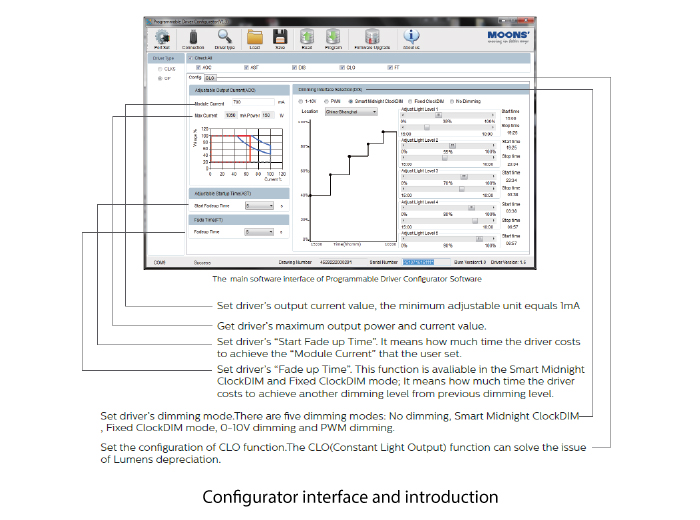

The Programmable Driver Configurator Software and Configurator are compatible with MOONS' CLKS and CP drivers. They can be used to set the configuration parameters of MOONS' CLKS and CP drivers.

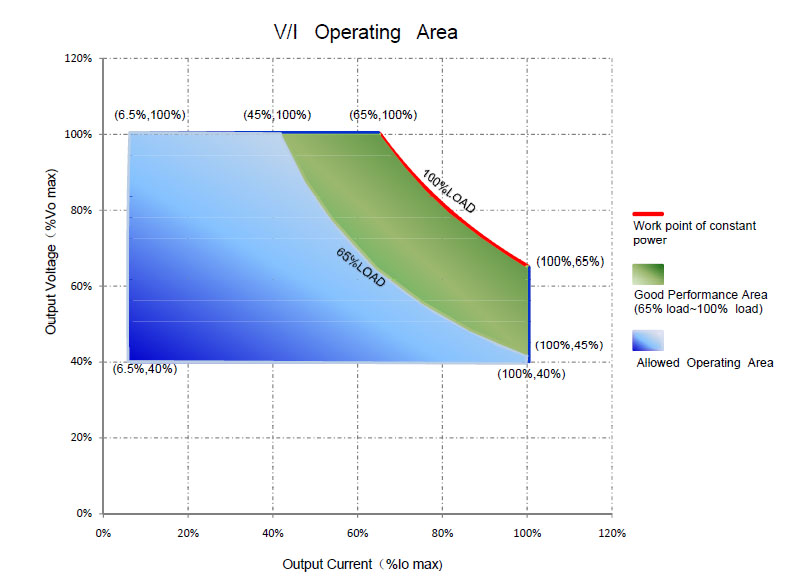

2. Dimming Function-Constant Power

Output Current: 65%∼ 100% ×rated output current
This series driver could achieve rated output power while adjusting output current range at 65%-100% rated output current.

Note：output current setting range with constant power 65%～100% Iomax

3. Dimming Function-PWM/1-10V Dimming

Dimming Range: 6.5%∼ 100% ×rated output current
The CP series are perfectly compatible with PWM/1-10V signal dimmer. Enter the "PWM dimming mode" or "1-10V dimming mode", you can modify the minimum and maximum output parameters and corresponding voltage of dimming signal voltage.

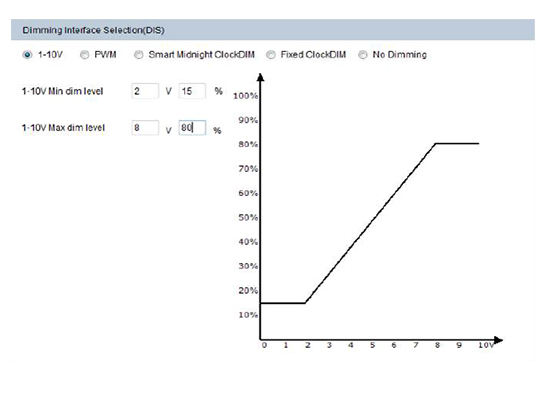

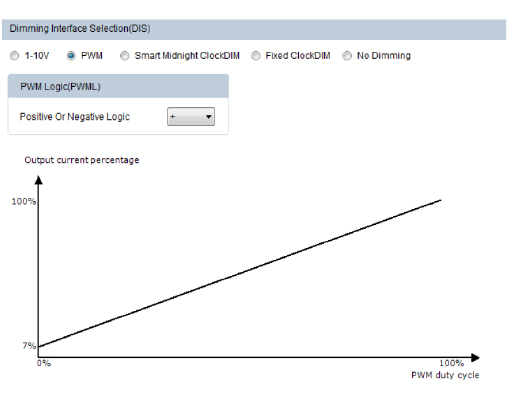

PWM Interface	1-10V Interface

4. Dimming Function-Smart Midnight ClockDIM

Smart Midnight ClockDIM has self-study Clock Dimming function. It can set 5 dimming level in the dimming plan through software. It also can adjust the starting time and ending time in the dimming plan everyday automatically according to the geographic position and average operating time. In other words, the CP series driver can adapt to the changeable starting and ending time due to the seasonal alteration by self-study function.

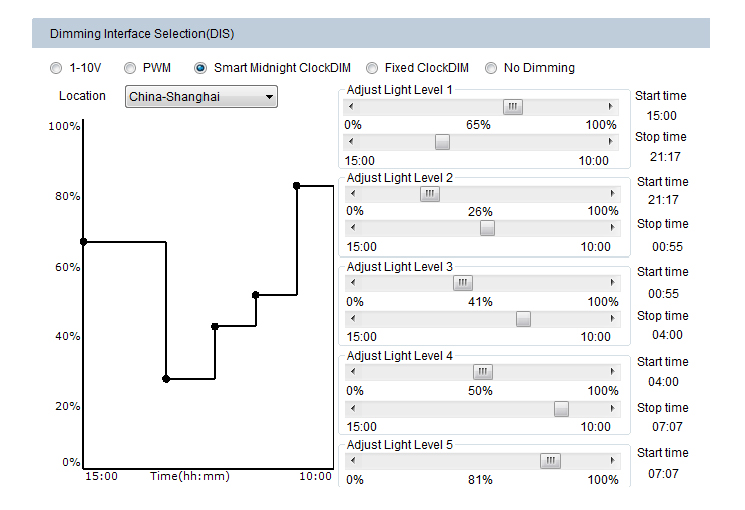

Smart Midnight ClockDIM Interface

5. Dimming Function-Fixed ClockDIM

Users can set the dimming plan by separating 24 hours into 5 sections matching corresponding output current. Owing to the time is fixed, it has no self-study function.
For instance: Assuming the dimming plan like below table shows. If the driver is charged at 15:00pm, the driver will perform the dimming plan following the form shows.

Time Output 15:00~20:00 20%×Module Current 20:00~01:00 40%×Module Current 01:00~05:00 60%×Module Current 05:00~09:00 80%×Module Current 09:00~15:00 100%×Module Current

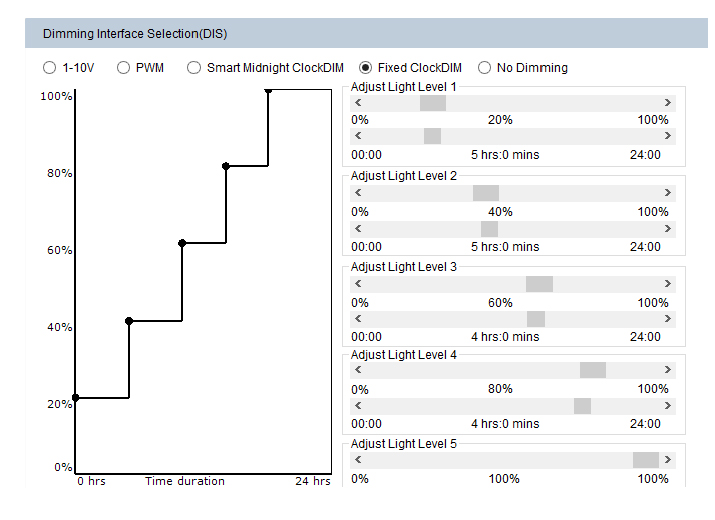

Fixed ClockDIM Interface
