Stepper motor, High Accuracy, High Efficiency, High Reliability, Step Angle: 0.9°, NEMA17, 42x42mm
● High Accuracy
● High efficiency
● High Reliability
● Available options for Wire Harness, Flexible Coupling, Damper
● High efficiency
● High Reliability
● Available options for Wire Harness, Flexible Coupling, Damper
Brand Name: MOONS'
Price:
USD
40.4
-
48.3
EA
Payment Methods
Buyer Protection:
Free Exchange
Description
Higher Resolution
The number of rotor teeth in 0.9°motors has doubled to 100 compared to 50 with the 1.8°type. As a result, the basic step angle becomes 0.9˚/step, which is half that of the 1.8°type. Compared with 1.8 °stepper motor, 0.9 °stepper motor's stepping angle is smaller, fineness is higher and positioning is more accurate.
Avoidance of Resonance Regions
Compared with the 1.8°stepping motor, when the 0.9°stepping motor is used, the working frequency of the motor can be doubled and it can be configured so that the operating frequency of the motor does not fall within the vibration range, thus avoiding vibration. As a result,0.9°stepper motor runs more smoothly and gets lower noise.
Specification
| Phase | 2 |
| Steps/ Revolution | 400 |
| Step Angle | 0.9° |
| Step Accuracy | ±5% |
| Insulation Class | B, 130℃ |
| Insulation Resistance | 100 MegOhms |
| Axial Load (20,000 hours at 1000RPM ) | 25N (5.6 Lbs.) Push 65 N (15 Lbs.) Pull |
| Radial Load (20,000 hours at 1000RPM ) | 30 N (6.5 Lbs.)At Flat Center |
| Operating Temp. | -20℃~50℃ |
| IP Rating | IP 40 |
| Approvals | RoHS |

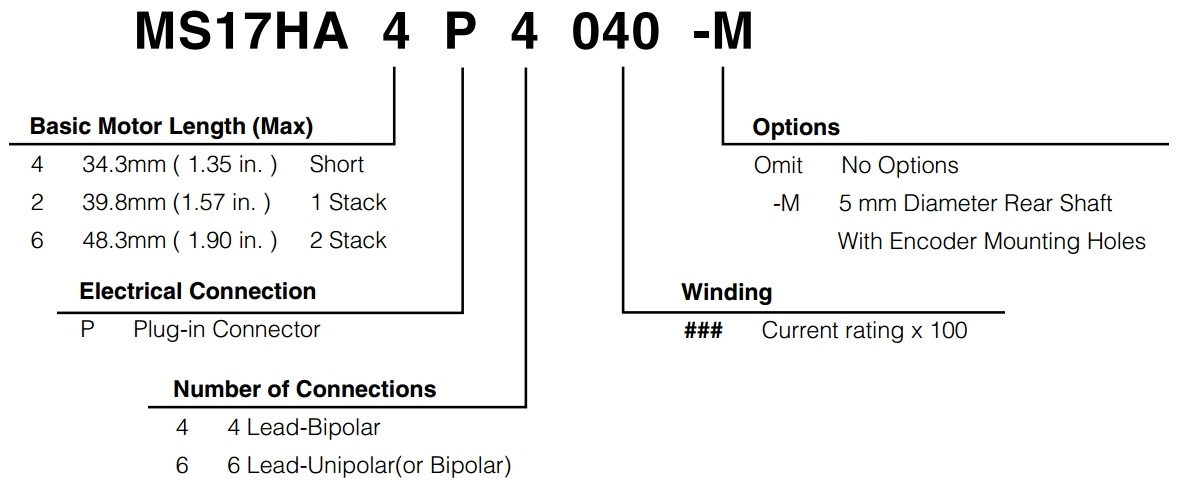

Model Numbering System
MS17HA-4Lead Bi-Polar
| Length | Model Number | Torque Curves | Connect | Rated Current | Holding Torque | Winding OhmsmH | Detent Torque | Rotor Inertia | Motor Weight |
|---|---|---|---|---|---|---|---|---|---|
| Single Shaft | P=Plug L=Leads | Amps (mounted) | Nmoz-in Typ.Typ. | ±10% @20℃Typ. | mNmoz-in | g cm²oz-in² | kgLbs |
| 34.3 mm (1.35 in.) | MS17HA4P4040 |   | P | 0.4 | 0.2535 | 3071 | 121.7 | 380.21 | 0.230.51 |
|---|---|---|---|---|---|---|---|---|---|
| MS17HA4P4100 |  | P | 1 | 0.2535 | 4.310.5 | ||||
| MS17HA4P4100-M | | P | 1 | 0.2535 | 4.310.5 | ||||
| MS17HA4P4150 |  | P | 1.5 | 0.2434 | 1.714.1 | ||||
| MS17HA4P4150-M | | P | 1.5 | 0.2434 | 1.714.1 | ||||
| MS17HA4P4200 |  | P | 2 | 0.2535 | 1.112.5 |
| 39.8 mm (1.57 in.) 1 Stack | MS17HA2P4040 |  | P | 0.4 | 0.3955 | 2470 | 162.3 | 570.31 | 0.290.64 |
|---|---|---|---|---|---|---|---|---|---|
| MS17HA2P4100 |  | P | 1 | 0.3955 | 3.911.2 | ||||
| MS17HA2P4100-M | | P | 1 | 0.3955 | 3.911.2 | ||||
| MS17HA2P4150 |  | P | 1.5 | 0.457 | 1.985.4 | ||||
| MS17HA2P4150-M | | P | 1.5 | 0.457 | 1.985.4 | ||||
| MS17HA2P4200 |  | P | 2 | 0.3955 | 1.052.8 |
| 48.3 mm (1.9 in.) 2 Stack | MS17HA6P4050 |  | P | 0.5 | 0.5578 | 2474 | 253.5 | 820.45 | 0.3510.77 |
|---|---|---|---|---|---|---|---|---|---|
| MS17HA6P4100 |  | P | 1 | 0.5375 | 4.916 | ||||
| MS17HA6P4100-M | | P | 1 | 0.5375 | 4.916 | ||||
| MS17HA6P4150 |  | P | 1.5 | 0.5274 | 2.26.8 | ||||
| MS17HA6P4150-M | | P | 1.5 | 0.5274 | 2.26.8 | ||||
| MS17HA6P4200 |  | P | 2 | 0.5375 | 1.314 |
MS17HA-6Lead uni-Polar
| Length | Model Number | Torque Curves | Connect | Rated Current | Holding Torque | Winding OhmsmH | Detent Torque | Rotor Inertia | Motor Weight |
|---|---|---|---|---|---|---|---|---|---|
| Single Shaft | P=Plug L=Leads | Amps (mounted) | Nmoz-in Typ.Typ. | ±10% @20℃Typ. | mNmoz-in | g cm²oz-in² | kgLbs |
| 34.3 mm (1.35 in.) | MS17HA4P6038 |  | P | 0.38 | 0.228 | 3138 | 121.7 | 380.21 | 0.230.51 |
|---|---|---|---|---|---|---|---|---|---|
| MS17HA4P6085 |  | P | 0.85 | 0.1927 | 5.16.2 | ||||
| MS17HA4P6120 |  | P | 1.2 | 0.228 | 2.93.6 |
| 39.8 mm (1.57 in.) 1 Stack | MS17HA2P6040 |  | P | 0.4 | 0.3245 | 2839 | 162.3 | 570.31 | 0.290.64 |
|---|---|---|---|---|---|---|---|---|---|
| MS17HA2P6085 |  | P | 0.85 | 0.3245 | 68.3 | ||||
| MS17HA2P6130 |  | P | 1.3 | 0.3245 | 2.53.5 | ||||
| 48.3 mm (1.9 in.) 2 Stack | MS17HA6P6040 |  | P | 0.4 | 0.4158 | 2945 | 253.5 | 820.45 | 0.3510.77 |
| MS17HA6P6080 |  | P | 0.8 | 0.4158 | 7.611.9 | ||||
| MS17HA6P6130 |  | P | 1.3 | 0.4361 | 3.25 | ||||
| MS17HA6P6200 |  | P | 2 | 0.4259 | 1.31.94 |
| Compare | Item | Price (USD) |
Buy Now |
|---|---|---|---|
|
|
MS17HA4P4040 | $40.40 |
Added to Your Shopping Cart
|
|
|
MS17HA4P4100 | $40.40 |
Added to Your Shopping Cart
|
|
|
MS17HA4P4100-M | $42.40 |
Added to Your Shopping Cart
|
|
|
MS17HA4P4150 | $40.40 |
Added to Your Shopping Cart
|
|
|
MS17HA4P4150-M | $42.40 |
Added to Your Shopping Cart
|
|
|
MS17HA4P4200 | $40.40 |
Added to Your Shopping Cart
|
|
|
MS17HA2P4040 | $41.30 |
Added to Your Shopping Cart
|
|
|
MS17HA2P4100 | $41.30 |
Added to Your Shopping Cart
|
|
|
MS17HA2P4100-M | $43.30 |
Added to Your Shopping Cart
|
|
|
MS17HA2P4150 | $41.30 |
Added to Your Shopping Cart
|
|
|
MS17HA2P4150-M | $43.30 |
Added to Your Shopping Cart
|
|
|
MS17HA2P4200 | $41.30 |
Added to Your Shopping Cart
|
|
|
MS17HA6P4050 | $46.30 |
Added to Your Shopping Cart
|
|
|
MS17HA6P4100 | $46.30 |
Added to Your Shopping Cart
|
|
|
MS17HA6P4100-M | $48.30 |
Added to Your Shopping Cart
|
|
|
MS17HA6P4150 | $46.30 |
Added to Your Shopping Cart
|
|
|
MS17HA6P4150-M | $48.30 |
Added to Your Shopping Cart
|
|
|
MS17HA6P4200 | $46.30 |
Added to Your Shopping Cart
|
►Torque Curves
| ■ MS17HA4-Bipolar | |||
 |  |  | |
| ■ MS17HA2-Bipolar | |||
|  |  |  |
| ■ MS17HA6-Bipolar | |||
|  |
|  |
| ■ MS17HA4-Unipolar | ||
|  |  |
| ■ MS17HA2-Unipolar | ||
|
|  |
| ■ MS17HA6-Unipolar | |||
 |  |  |  |
►Dimensions
■ Motor Dimensions: mm(in)
 |
2D Drawings
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| MS17HA6P4200 2D.pdf | 148 | ||
| MS17HA4P4040 2D.pdf | 78 | ||
| MS17HA2P4100 2D.pdf | 80 | ||
| MS17HA4P4100 2D.pdf | 143 | ||
| MS17HA2P4150 2D.pdf | 81 | ||
| MS17HA6P4050 2D.pdf | 75 | ||
| MS17HA4P4150 2D.pdf | 96 | ||
| MS17HA4P4150-M 2D.pdf | 136 | ||
| MS17HA4P4100-M 2D.pdf | 159 | ||
| MS17HA6P4150 2D.pdf | 81 | ||
| MS17HA6P4100-M 2D.pdf | 135 | ||
| MS17HA6P4150-M 2D.pdf | 281 | ||
| MS17HA2P4100-M 2D.pdf | 186 | ||
| MS17HA6P4100 2D.pdf | 154 | ||
| MS17HA2P4150-M 2D.pdf | 134 | ||
| MS17HA2P4200 2D.pdf | 153 | ||
| MS17HA2P4040 2D.pdf | 76 | ||
| MS17HA4P4200 2D.pdf | 95 |
3D Model
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| MS17HA6P_3D Model.step | STEP | 849 | |
| MS17HA2P_3D Model.step | STEP | 849 | |
| MS17HA4P_3D Model.step | STEP | 871 | |
| 4611110027531.stp | STEP | 6228 | |
| 4611110027534.stp | STEP | 7790 | |
| 4611110027532.stp | STEP | 6228 | |
| 4611110027533.stp | STEP | 7790 | |
| 4611110027529.stp | STEP | 6084 | |
| 4611110027530.stp | STEP | 6084 |
Torque Speed Curves
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| MS17HA Series_Torque Speed Curve.pdf | 6058 | ||
| MS17HA Series_Torque Speed Curve_2.pdf | 5335 |
Catalog
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| Hybrid Stepper Motor_Catalog2019.pdf | 15487 |
Filter By Product Type
All ProductsDriver
►Features
■ Higher Resolution The number of rotor teeth in 0.9°motors has doubled to 100 compared to 50 with the 1.8°type. As a result, the basic step angle becomes 0.9˚/step, which is half that of the 1.8°type. Compared with 1.8 °stepper motor, 0.9 °stepper motor's stepping angle is smaller, fineness is higher and positioning is more accurate. |
■ Avoidance of Resonance Regions Compared with the 1.8°stepping motor, when the 0.9°stepping motor is used, the working frequency of the motor can be doubled and it can be configured so that the operating frequency of the motor does not fall within the vibration range, thus avoiding vibration. As a result,0.9°stepper motor runs more smoothly and gets lower noise. |
■ Performance Benchmarking MOONS' 0.9°stepper motor has a smaller vibration, better accuracy.
|
With years of expertise and experience in the design, development, manufacturing and marketing of hybrid stepper motors, MOONS' provides a wealthy customized services, therefore, you can find suitable solutions for any special demands here.
Step Sequence & Schematic Diagrams
Delivery & Packaging
Ensure your ordered products are always safely packaged from easy click to fast delivery to your handsProfessional Product Label
Considering all possible harsh application environments, MOONS' specially designed labels for each product, which pass water-resistance test, durability rub test, high temperature resistance and corrosion resistance tests.Besides, our product labels are attached with QR code linking to product details, which is convenient for clients to view the detail product page with their mobile phones.
Note: This label design is suitable for products of stepper motor.
(Professional packing box and unique appearance design)
(Single item packed with EPE)
(Multi-products packed with another box)
