    Stepper motor, High Accuracy, High Efficiency, High Reliability, Step Angle: 0.9°, NEMA23, 56.4x56.4mm
    ● High Accuracy
    ● High efficiency
    ● High Reliability
    ● Available options for Wire Harness, Damper
    Brand Name: MOONS'
    Price: USD  52.4  -  73.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

    Description

    Higher Resolution

    The number of rotor teeth in 0.9°motors has doubled to 100 compared to 50 with the 1.8°type. As a result, the basic step angle becomes 0.9˚/step, which is half that of the 1.8°type. Compared with 1.8 °stepper motor, 0.9 °stepper motor's stepping angle is smaller, fineness is higher and positioning is more accurate.
    NEMA 23 High Precision Hybrid Stepper Motors

    Avoidance of Resonance Regions

    Compared with the 1.8°stepping motor, when the 0.9°stepping motor is used, the working frequency of the motor can be doubled and it can be configured so that the operating frequency of the motor does not fall within the vibration range, thus avoiding vibration. As a result,0.9°stepper motor runs more smoothly and gets lower noise.

    Data Sheet


    Specification of NEMA 23 High Precision Hybrid Stepper Motors

    Specification

    Phase 2
    Steps/ Revolution 400
    Step Angle 0.9°
    Step Accuracy ±5%
    Insulation Class B, 130℃
    Insulation Resistance 100 MegOhms
    Axial Load (20,000 hours at 1000RPM ) 40N (9 Lbs.) Push
    130N (30 Lbs.) Pull
    Radial Load (20,000 hours at 1000RPM ) 70N (15.5 Lbs.)At Flat Center
    Operating Temp. -20℃~50℃
    IP Rating IP 40
    Approvals UL Recognized File E465363, RoHS

    Model Numbering System

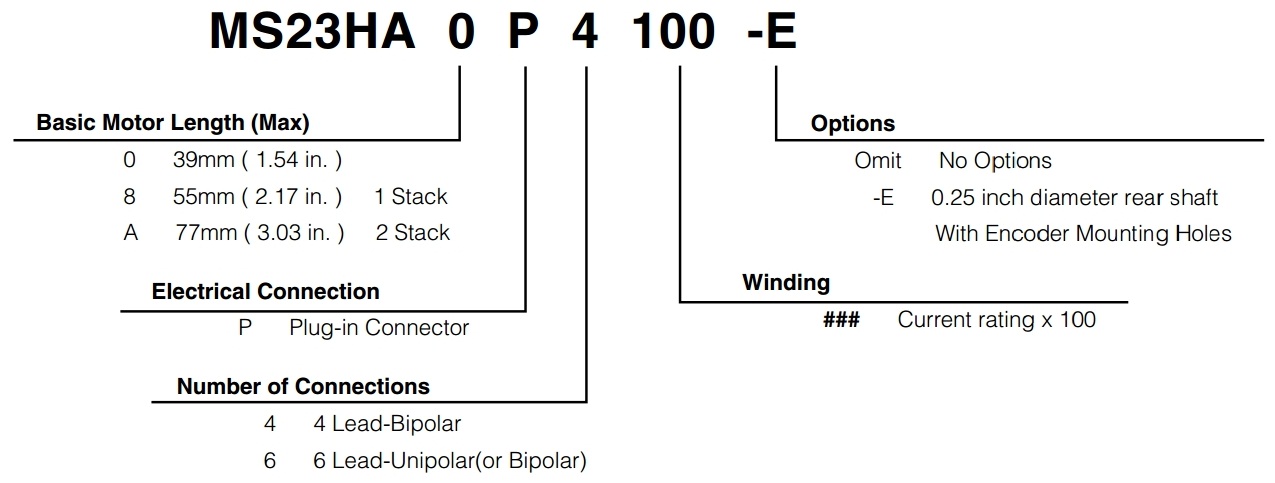

    Model Numbering System of NEMA 23 High Precision Hybrid Stepper Motors

    MS23HA-4Lead Bi-Polar

    Length Model Number Torque
    Curves    		 Connect Rated
    Current    		 Holding
    Torque    		 Winding
    OhmsmH    		 Detent
    Torque    		 Rotor Inertia Motor Weight
    Single Shaft P=Plug
    L=Leads    		 Amps
    (mounted)    		 Nmoz-in
    Typ.Typ.    		 ±10%
    @20℃    Typ.     		mNmoz-in g cm²oz-in² kgLbs
    39 mm
    (1.54 in.)     		MS23HA0P4100 MS23HA0P4100 P 1 0.5984 6.323 243.4 121.50.66 0.420.93
    MS23HA0P4160 MS23HA0P4160 P 1.6 0.685 2.69.2
    MS23HA0P4160-E MS23HA0P4160-E P 1.6 0.685 2.69.2
    MS23HA0P4220 MS23HA0P4220 P 2.2 0.685 1.394.9
    MS23HA0P4220-E MS23HA0P4220-E P 2.2 0.685 1.394.9
    MS23HA0L4350 MS23HA0L4350 P 3.5 0.5984 0.561.85
    MS23HA0L4350-E MS23HA0L4350-E P 3.5 0.5984 0.561.85
    55 mm
    (2.17 in.)
    1Stack     		MS23HA8P4100 MS23HA8P4100 P 1 1.5210 7.650 456.4 2211.2 0.61.3
    MS23HA8P4150 MS23HA8P4150 P 1.5 1.4200 3.121
    MS23HA8P4150-E MS23HA8P4150-E P 1.5 1.4200 3.121
    MS23HA8P4220 MS23HA8P4220 P 2.2 1.5210 1.610.5
    MS23HA8P4220-E MS23HA8P4220-E P 2.2 1.5210 1.610.5
    MS23HA8L4360 MS23HA8L4360 L 3.6 1.5210 0.633.9
    MS23HA8L4360-E MS23HA8L4360-E L 3.6 1.5210 0.633.9
    MS23HA8L4550 MS23HA8L4550 L 5.5 1.5210 0.281.56
    77 mm
    (3.03 in.)
    2Stack     		MS23HAAP4100 MS23HAAP4100 P 1 2.3330 8.861 709.9 3912.1 12.2
    MS23HAAP4150 MS23HAAP4150 P 1.5 2.4340 4.329
    MS23HAAP4150-E MS23HAAP4150-E P 1.5 2.4340 4.329
    MS23HAAP4200 MS23HAAP4200 P 2 2.3330 2.315.2
    MS23HAAP4300 MS23HAAP4300 P 3 2.4340 1.16.9
    MS23HAAP4300-E MS23HAAP4300-E P 3 2.4340 1.16.9
    MS23HAAL4500 MS23HAAL4500 L 5 2.3330 0.392.4

    Compare Item Price
    (USD)    		 Buy Now
    MS23HA0P4100 $52.40
    MS23HA0P4160 $52.40
    MS23HA0P4220 $52.40
    MS23HA0P4220-E $54.40
    MS23HA0L4350 $52.40
    MS23HA0L4350-E $54.40
    MS23HA8P4100 $58.00
    MS23HA8P4150 $58.00
    MS23HA8P4220 $58.00
    MS23HA8L4360 $58.00
    MS23HA8L4360-E $60.00
    MS23HA8L4550 $58.00
    MS23HAAP4100 $71.00
    MS23HAAP4150 $71.00
    MS23HAAP4200 $71.00
    MS23HAAP4200-E $73.00
    MS23HAAP4300 $71.00
    MS23HAAP4300-E $73.00
    MS23HAAL4500 $71.00
       Torque Speed Curves

    ►Torque Curves

    ■ MS23HA0-Bipolar
    MS23HA0-Bipolar
    MS23HA0-Bipolar
    MS23HA0-Bipolar
    		 MS23HA0-Bipolar
    ■ MS23HA8-Bipolar
    MS23HA8-Bipolar
    MS23HA8-Bipolar
    MS23HA8-Bipolar
    		 MS23HA8-Bipolar
    ■ MS23HAA-Bipolar
    MS23HAA-Bipolar
    MS23HAA-Bipolar
    		 MS23HAA-Bipolar MS23HAA-Bipolar

    Dimension

    ►Dimensions

    ■ Motor Dimensions: mm(in)
    Dimensions of NEMA 23 High Precision Hybrid Stepper Motors
    ■ Mating connector With Leads(order separately) Dimensions: mm(in)

    Mating Connector with 4 Leads: 300±10（12±0.5）long
    (order separate) Part number: 4634 1402 01891

    Downloads
    2D Drawings
    3D Model
    Title Type Size（KB） Download
    MS23HA0P_3D Model.step STEP 1927
    MS23HAAP_3D Model.step STEP 1924
    MS23HA8P_3D Model.step STEP 1926
    MS23HA8L_3D Model.step STEP 1131
    MS23HAAL_3D Model.step STEP 1119
    MS23HA0L_3D Model.step STEP 1204
    ml23haap 3D model STEP 1289
    ml23ha8p 3D model STEP 1314
    ml23ha8l 3D model STEP 1136
    ml23ha0p 3D model STEP 1300
    ml23haal 3D model STEP 1124
    ml23ha0l 3D model STEP 1206
    4611110027557.stp STEP 7431
    4611110027552.stp STEP 5880
    4611110028682.stp STEP 7437
    4611110027553.stp STEP 6246
    4611110027550.stp STEP 5532
    Torque Speed Curves
    Title Type Size（KB） Download
    MS23HA Series_Torque Speed Curve.pdf PDF 6741
    Catalog
    Title Type Size（KB） Download
    Hybrid Stepper Motor_Catalog2019.pdf PDF 15487

    Filter By Product Type

    All Products
    Driver
       Competitor Benchmarking

    ►Features

    Features of NEMA 23 High Precision Hybrid Stepper Motors

    ■ Higher Resolution

    The number of rotor teeth in 0.9°motors has doubled to 100 compared to 50 with the 1.8°type. As a result, the basic step angle becomes 0.9˚/step, which is half that of the 1.8°type. Compared with 1.8 °stepper motor, 0.9 °stepper motor's stepping angle is smaller, fineness is higher and positioning is more accurate.

    ■ Avoidance of Resonance Regions

    Compared with the 1.8°stepping motor, when the 0.9°stepping motor is used, the working frequency of the motor can be doubled and it can be configured so that the operating frequency of the motor does not fall within the vibration range, thus avoiding vibration. As a result, 0.9°stepper motor runs more smoothly and gets lower noise.

    ■ Performance Benchmarking

    MOONS' 0.9°stepper motor has a smaller vibration, better accuracy.

    Performance Benchmarking
