S57 Series Brushless DC Motors-1
  • S57 Series Brushless DC Motors-1
    • S57 Series Brushless DC Motors-1

    • S57 Series Brushless DC Motors

    Brushless DC Motor, Power: 60Watts~180Watts, Voltage: 24~48VDC, Torque: 0.072~0.43Nm(10~61oz-in)
    ● Wide speed range, flat torque
    ● Excellent speed stability
    ● Compact and high power
    ● High efficiency and energy-saving
    ● Low temperature rise, low noise, low vibration
    ● Long life and low maintenance cost
    ● Low cogging torque
    Brand Name: MOONS'
    Price: USD  68.0  -  150.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

    Introduction to BLDC Motors

    Characteristics • Wide range of speed control and smooth torque output
    • Excellent speed stability
    • Small size, high power
    • Low temperature rise, low noise, low vibration
    • Long life, low maintenance costs
    • Low positioning torque
    • Energy efficient
    Applications
    • Mechanical automation (textile machines)
    • Financial automation (ATM)
    • Office equipment (printer)
    • Solar energy equipment
    • Drive system     • Speed setting and regulation devices in various industries
    • Automotive On-board equipment
    • Pump (metering pump)
    • Food industry
    • Sorting equipment

    Brushless Motor Numbering Information

    Brushless Drive Numbering Information

    System Configuration

    Drive Specifications

    Dimensions (Unit: mm)

    Data Sheet

    specification

    Specifications
    Symbols
    Units
    Type
    57BLD60L2
    57BLD60L4
    57BLD120L2
    57BLD120L4
    57BLD180L2
    57BLD180L4

    □
    mm
    57
    57
    57
    57
    57
    57
    length
    L
    mm
    54.5
    54.5
    82.5
    82.5
    120.5
    120.5
    Input voltage
    Un
    VDC
    24
    48
    24
    48
    24
    48
    Rated power
    Pn
    W
    60
    60
    120
    120
    180
    180
    Phase number
    P

    3
    Rated speed
    Nn
    RPM
    4000
    Max. speed
    Np
    RPM
    5000
    Rated torque
    T
    Nm
    0.145
    0.145
    0.29
    0.29
    0.43
    0.43
    Max. torque
    T max
    Nm
    0.29
    0.29
    0.58
    0.58
    0.86
    0.86
    Rated current
    I
    Arms
    3.2
    1.6
    6.9
    3.0
    10.5
    4.5
    Max. current
    I max
    Arms
    6.4
    3.2
    13.8
    6.0
    21
    9.0
    Voltage±10%
    Ke
    Vrms/Krpm
    3.08
    6.35
    3.00
    6.4
    3.00
    6.45
    Torque±10%
    Kt
    Nm/Krpm
    0.045
    0.090
    0.042
    0.097
    0.041
    0.096
    Moment of inertia
    Jr
    g.cm2
    148
    148
    279
    279
    456
    456
    Resistance±10%(25℃)
    R
    Ω
    0.48
    1.8
    0.18
    0.76
    0.11
    0.44
    Inductance
    L
    mH
    0.45
    1.9
    0.18
    0.84
    0.11
    0.54
    Sensor
    Hall
    Ins.class
    E
    Protective rating
    IP40
    Storage temperature
    -25~+70℃
    Operating  temperature
    0~+50℃
    Operating humidity
    85% RH or below (noncondensing)
    Operating environment
    Outdoor (no direct sunlight), no corrosive gas, no fl ammable gas, no oil mist, no dust
    Altitude
    1000m or below

    Compare Item Price
    (USD)    		 Buy Now
    57BLD30L2 $68.00
    57BLD30L4 $68.00
    57BL60L2 $80.00
    57BL60L4 $80.00
    57BL120L2 $115.00
    57BL120L4 $115.00
    57BL180L2 $150.00
    57BL180L4 $150.00

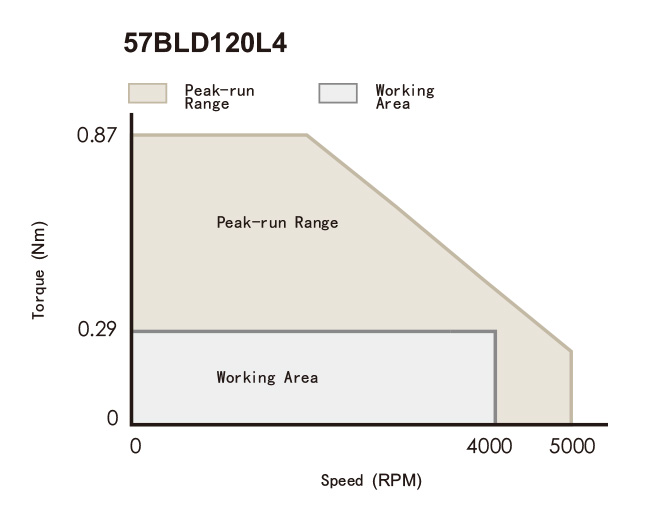

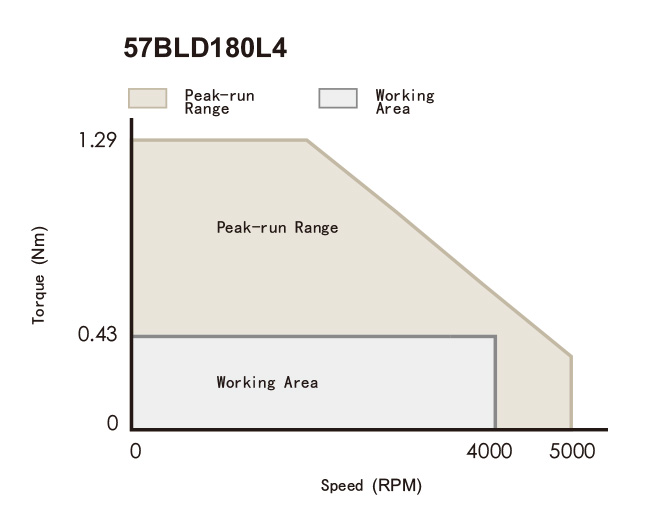

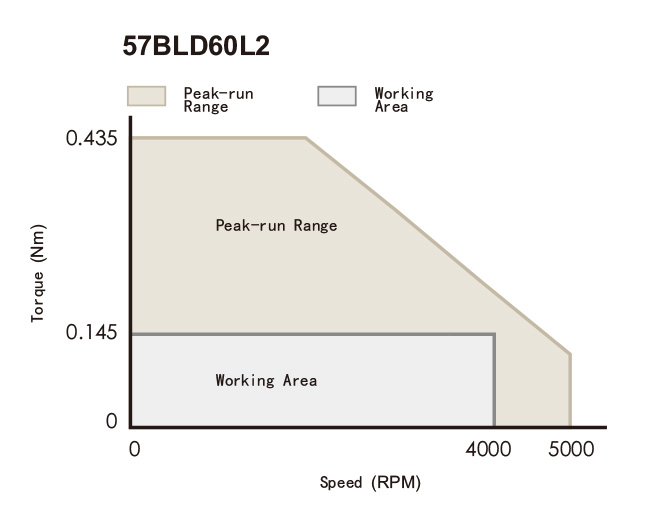

       Torque Speed Curves

    57BLD30
    57BLD60
    57BLD120
    57BLD180

    Dimension

    Dimension

    Downloads
    2D Drawings
    3D Model
    Title Type Size（KB） Download
    57BLD30L2_3D Model.step STEP 2891
    57BL60L2 3D model STEP 2489
    57BL120L2 3D model STEP 2419
    57BL180L2 3D model STEP 1825
    57BL180L4 3D model STEP 2427
    57BL120L4 3D model STEP 2419
    57BLD30L4_3D Model.step STEP 2890
    57BL60L4 3D model STEP 2489
    Catalog
    Title Type Size（KB） Download
    Brushless DC Motors Catalog PDF 2835
