    • S80 Series Brushless DC Motors

    Brushless DC Motor, Power: 100Watts~300Watts, Voltage: 24~48VDC, Torque: 0.24~0.72Nm(34~102oz-in)
    ● Wide speed range, flat torque
    ● Excellent speed stability
    ● Compact and high power
    ● High efficiency and energy-saving
    ● Low temperature rise, low noise, low vibration
    ● Long life and low maintenance cost
    ● Low cogging torque
    Brand Name: MOONS'
    Price: USD  160.0  -  240.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

    Introduction to BLDC Motors

    Characteristics • Wide range of speed control and smooth torque output
    • Excellent speed stability
    • Small size, high power
    • Low temperature rise, low noise, low vibration
    • Long life, low maintenance costs
    • Low positioning torque
    • Energy efficient
    Applications
    • Mechanical automation (textile machines)
    • Financial automation (ATM)
    • Office equipment (printer)
    • Solar energy equipment
    • Drive system     • Speed setting and regulation devices in various industries
    • Automotive On-board equipment
    • Pump (metering pump)
    • Food industry
    • Sorting equipment

    Brushless Motor Numbering Information

    S80 Series Brushless Motor Numbering Information

    Brushless Drive Numbering Information

    S80 Series Brushless Drive Numbering Information

    System Configuration

    System Configuration of S80 Series Brushless DC Motors

    Drive Specifications

    Drive Specifications of S80 Series Brushless DC Motors

    Dimensions (Unit: mm)

    Dimensions of S80 Series Brushless DC Motors

    Data Sheet

    specification

    Specifications
    Symbols
    Units
    Type
    80BLD100L2
    80BLD100L4
    80BLD200L2
    80BLD200L4
    80BLD300L4

    □
    mm
    80
    80
    80
    80
    80
    length
    L
    mm
    50
    50
    67
    67
    84
    Input voltage
    Un
    VDC
    24
    48
    24
    48
    48
    Rated power
    Pn
    W
    100
    100
    200
    200
    300
    Phase number
    P

    3
    Rated speed
    Nn
    RPM
    4000
    4000
    4000
    4000
    4000
    Max. speed
    Np
    RPM
    4500
    4500
    4500
    4500
    4500
    Rated torque
    T
    Nm
    0.24
    0.24
    0.48
    0.48
    0.72
    Max. torque
    T max
    Nm
    0.48
    0.48
    0.96
    0.96
    1.44
    Rated current
    I
    Arms
    5.00
    2.43
    10.10
    5.06
    7.49
    Max. current
    I max
    Arms
    10.00
    4.86
    20.20
    10.12
    14.98
    Voltage±10%
    Ke
    Vrms/Krpm
    3.44
    6.88
    3.38
    6.76
    7.03
    Torque±10%
    Kt
    Nm/Krpm
    0.048
    0.099
    0.048
    0.095
    0.096
    Moment of inertia
    Jr
    g.cm2
    380
    380
    740
    740
    1080
    Resistance±10%(25℃)
    R
    Ω
    0.18
    0.71
    0.08
    0.32
    0.20
    Inductance
    L
    mH
    0.34
    1.35
    0.18
    0.70
    0.47
    Sensor
    Hall
    Ins.class
    E
    Protective rating
    IP40
    Storage temperature
    -25~+70℃
    Operating  temperature
    0~+50℃
    Operating humidity
    85% RH or below (noncondensing)
    Operating environment
    Outdoor (no direct sunlight), no corrosive gas, no fl ammable gas, no oil mist, no dust
    Altitude
    1000m or below

    Compare Item Price
    (USD)    		 Buy Now
    80BL100L2 $160.00
    80BL100L4 $160.00
    80BL200L2 $200.00
    80BL200L4 $200.00
    80BL300L2 $240.00
    80BL300L4 $240.00
    80BLD300L2 $240.00
    80BL550H2-1 N/A
       Torque Speed Curves

    80BLD100

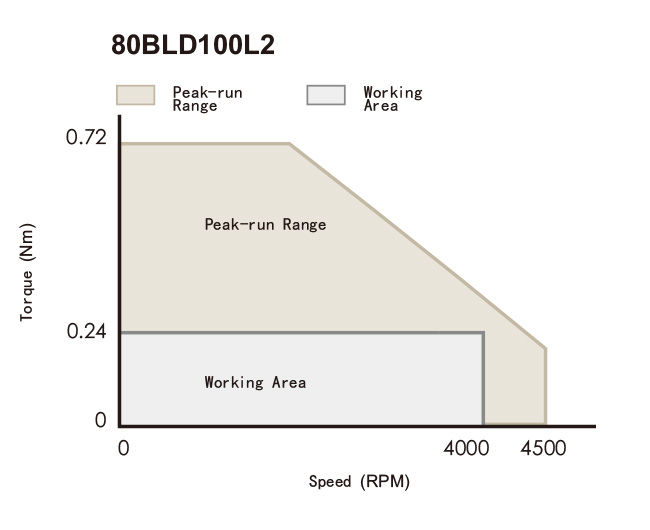

    80BLD100 Torque Speed Curve
    80BLD100 Torque Speed Curve
    80BLD100 Torque Speed Curve
    80BLD200

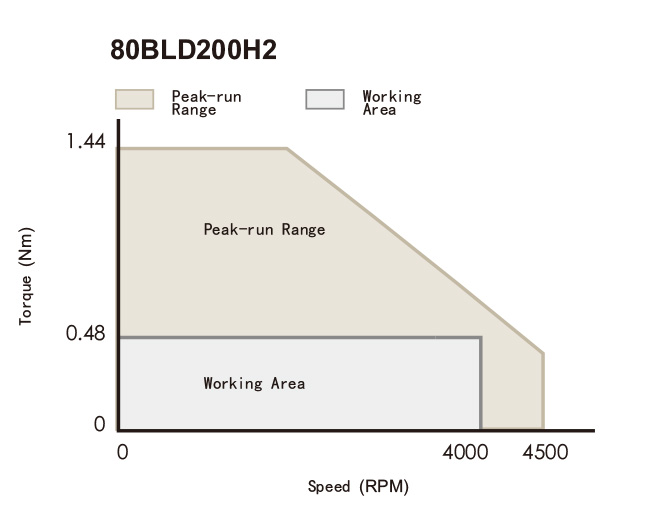

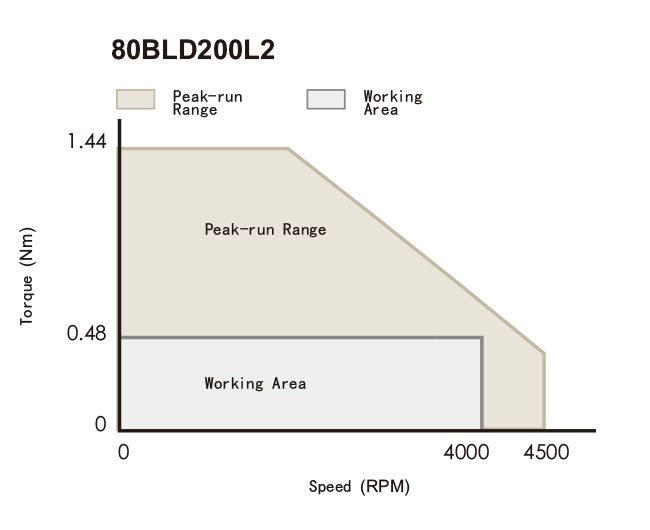

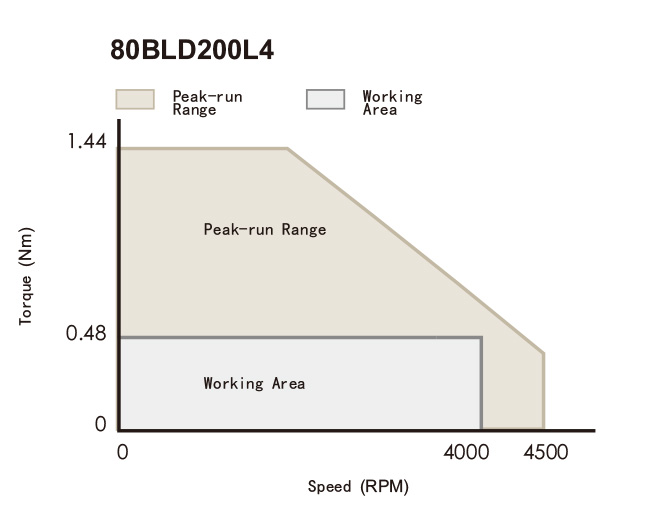

    80BLD200 Torque Speed Curve
    80BLD200 Torque Speed Curve
    80BLD200 Torque Speed Curve
    80BLD300

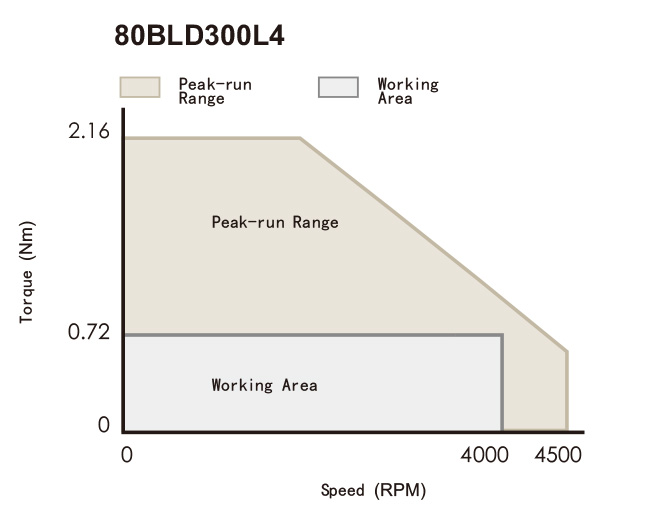

    80BLD300 Torque Speed Curve
    80BLD300 Torque Speed Curve
    80BLD300 Torque Speed Curve

    Dimension

    Dimension

    Dimension of S80 Series Brushless DC Motors
