    ■ Description

    The SWM is an integrated Drive+Motor+Controller with IP65 of ingress protection against dust and water, fusing step motor and drive technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions.
    SWM Series IP65 Integrated Stepper Motors


    ■ Features

    Anti-Resonance
    Anti-Resonance
    Step motor systems have a natural tendency to resonate at certain speeds. The SWM integrated motors automatically calculate the system’s natural frequency and apply damping to the control algorithm. This greatly improves midrange stability, allows higher speeds and greater torque utilization, and also improves settling times. Provides better motor performance and higher speeds

    Microstep Emulation
    With Microstep Emulation, low resolution systems can still provide smooth motion. The drive can take low resolution step pulses and create fine resolution motion. Delivers smoother motion in any application
    Microstep Emulation

    Torque Ripple Smoothing
    Torque Ripple Smoothing
    All step motors have an inherent low speed torque ripple that can affect the motion profile of the motor. By analyzing this torque ripple the system can apply a negative harmonic to counter this effect. This gives the motor much smoother motion at low speed. Produces smoother motion at lower speeds

    Command Signal Smoothing
    Command Signal smoothing can soften the effect of immediate changes in velocity and direction, making the motion of the motor less jerky. An added advantage is that it can reduce the wear on mechanical components.Improves smoother system performance
    Command Signal Smoothing

    Stall Detection & Stall Prevention
    The optional encoder detects the rotor’s position to provide Stall Detection and Stall Prevention functions.

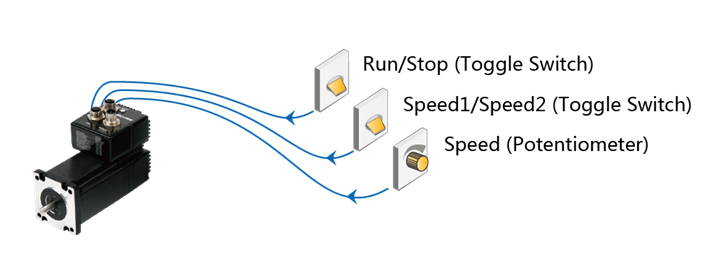

    Control Options
    Control Options



    ■ Model Numbering System

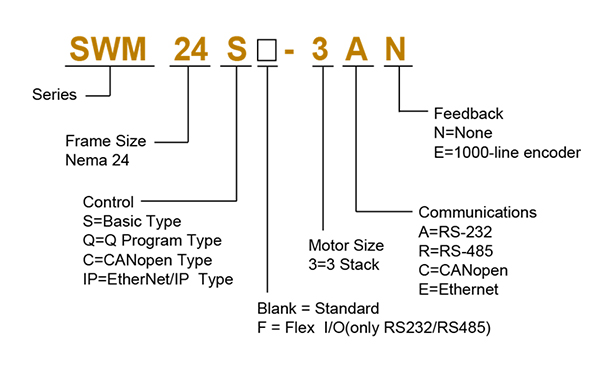

    Model Numbering System of SWM Series IP65 Integrated Stepper Motors


    ■ Ordering Information

    Model Control Torque Encoder RS-232 RS-485 Modbus/RTU Ethernet EtherNet/IP  Daisy Chain
    SWM24SF-3AN S 2.5N·m   √
    SWM24SF-3AE √ √
    SWM24SF-3RN     √       √
    SWM24SF-3RE √   √       √
    SWM24S-3EN         √
    SWM24S-3EE √       √
    SWM24QF-3AN Q 2.5N·m   √
    SWM24QF-3AE √ √   √
    SWM24QF-3RN     √       √
    SWM24QF-3RE √   √ √     √
    SWM24Q-3EN         √
    SWM24Q-3EE √       √
    SWM24IP-3EN IP 2.5N·m           √
    SWM24IP-3EE √         √

    Data Sheet

    Power Amplifier
    Amplifier Type DualH-bridge, 4qua drant
    Current Control 4 state PWM at 20 kHz
    Output Torque   SWM24□-3□□: Up to 2.4N•m
    Power Supply External 12 - 70 volt power supply required
    Protection Over-voltage, under-voltage, over-temp, internal shorts (phase-to-phase, phase-to-ground)
    Controller
    Microstep Resolution Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev.
    Encoder Feedback Optional 4000 counts/rev encoder feedback
    Speed Range Speeds up to 3000 rpm
    Non-volatile Storage Configurations are saved in FLASH memory on-board the DSP
    Modes of Operation SWM24S: Step & direction, CW/CCW pulse, A/B quadrature pulse, velocity (oscillator, joystick),
    streaming commands(SCL)
    SWM24Q: All SWM24S modes of operation plus stored Q program execution
    SWM24C: CANopen slave node plus stored Q Program execution
    SWM24IP: All SWM24Q modes of operation plus EtherNet/IP industrial network communications
    Digital Input SF and QF models Adjustable bandwidth digital noise rejection filter on all I/O points configured as inputs
    IN1+/-: optically isolated, 5-24 volts, minimum pulse width 250 ns., maximum pulse frequency 2 MHz
    Enable or general purpose input
    IN2+/-: Optically isolated, 5-24 volt. Minimum pulse width = 250 ns, Maximum pulse frequency = 2 MHz
    Function: Direction, CCW step, B quadrature (encoder following), CCW jog, direction (oscillator
      mode), alarm/fault reset or general purpose input
    IN3+/-: Optically isolated, 5-24 volt. Minimum pulse width = 100 μs, Maximum pulse frequency = 10  KHz
    Function: CW limit, Enable, speed 1/speed 2 (oscillator mode) or general purpose input
    IN4+/-: Optically isolated, 5-24 volt. Minimum pulse width = 100 μs, Maximum pulse frequency = 10 KHz
    Function: CCW limit, alarm/fault reset or general purpose input
    Digital Input S/Q   Ethernet models Adjustable bandwidth digital noise rejection filter on all inputs
    STEP+/-: optically isolated, 5-24 volts, minimum pulse width 250 ns., maximum pulse frequency 2  MHz
    Function: Step, CW step, A quadrature (encoder following), CW limit, CW jog, start/stop (oscillator mode), or general purpose input DIR+/-: Optically isolated, 5-24 volt. Minimum pulse width = 250 ns, Maximum pulse frequency = 2 MHz
    Function: Direction, CCW step, B quadrature (encoder following), CCW limit, CCW jog, direction
    (oscillator mode), or general purpose input EN+/-: Optically isolated, 5-24 volt. Minimum pulse width = 100 μs, Maximum pulse frequency = 10 KHz
    Function: Enable, alarm/fault reset, speed 1/speed 2 (oscillator mode), or general purpose input
    Digital Input C models Adjustable bandwidth digital noise rejection filter on all inputs
    IN1+/-: Optically isolated, 5-24 volt. Minimum pulse width = 250 ns, Maximum pulse frequency = 2 MHz
    Function: CW limit, CW jog, or general purpose input
    IN2+/-: Optically isolated, 5-24 volt. Minimum pulse width = 250 ns, Maximum pulse frequency = 2 MHz
    Function: CCW limit, CCW jog, or general purpose input
    IN3+/-: Optically isolated, 5-24 volt. Minimum pulse width = 100 μs, Maximum pulse frequency = 10 KHz
    Function: general purpose input
    Analog Input   Communication AIN referenced to GND. Range = 0 to 5 VDC. Resolution = 12 bits. (Not present on SWM24C).

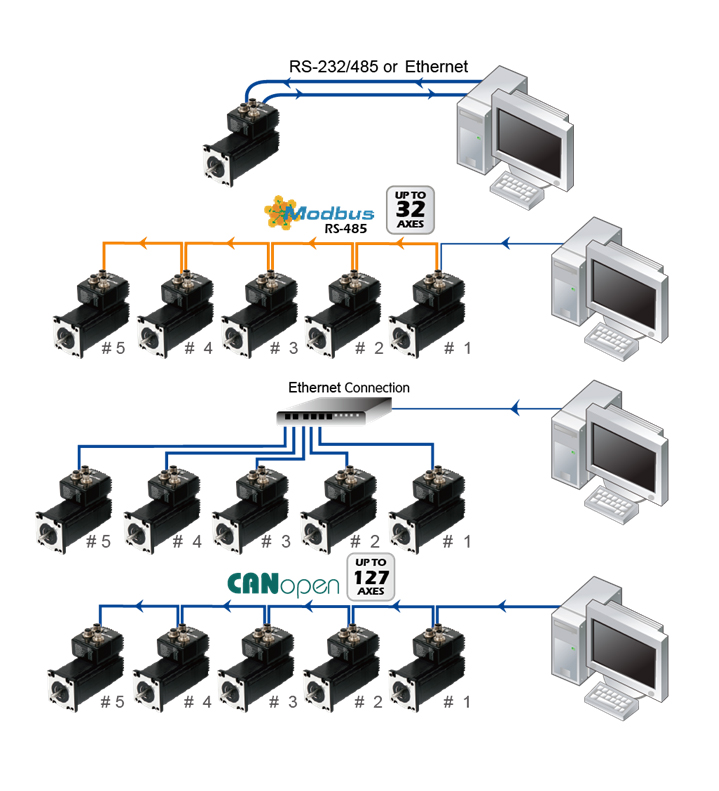

    S Model: RS-232, RS-485 Ethernet
    Q Model: RS-232, RS-485, Ethernet Modbus/RTU
    C Model: CANopen，RS-232
    IP Model: EtherNet/IP
    Physical
    Ambient Temperature 0 - 40°C (32 - 104°F) when mounted to a suitable heat sink
    Humidity 90% non-condensing
    Mass SWM24□-3□□: 1800 g
    Rotor Inertia SWM24□-3□□: 900 g•cm2
