    Stepper motor, High Accuracy, High Efficiency,High Reliability, Step Angle: 0.9°, NEMA14, 35x35mm
    ● High Accuracy
    ● High efficiency
    ● High Reliability
    ● Available options for Wire Harness, Flexible Couping, Damper
    Brand Name: MOONS'
    Price: USD  38.8  -  46.3  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

    Description

    Higher Resolution

    The number of rotor teeth in 0.9°motors has doubled to 100 compared to 50 with the 1.8°type. As a result, the basic step angle becomes 0.9˚/step, which is half that of the 1.8°type. Compared with 1.8 °stepper motor, 0.9 °stepper motor's stepping angle is smaller, fineness is higher and positioning is more accurate.
    Higher Resolution NEMA 14 High Precision Hybrid Stepper Motors

    Avoidance of Resonance Regions

    Compared with the 1.8°stepping motor, when the 0.9°stepping motor is used, the working frequency of the motor can be doubled and it can be configured so that the operating frequency of the motor does not fall within the vibration range, thus avoiding vibration. As a result,0.9°stepper motor runs more smoothly and gets lower noise.

    Data Sheet



    Specification

    Phase 2
    Steps/ Revolution 400
    Step Angle 0.9°
    Step Accuracy ±5%
    Insulation Class B, 130℃
    Insulation Resistance 100 MegOhms
    Axial Load (20,000 hours at 1000RPM ) 25N (5.6 Lbs.) Push
    65 N (15 Lbs.) Pull
    Radial Load (20,000 hours at 1000RPM ) 30 N (6.5 Lbs.)At Flat Center
    Operating Temp. -20℃~50℃
    IP Rating IP 40
    Approvals RoHS

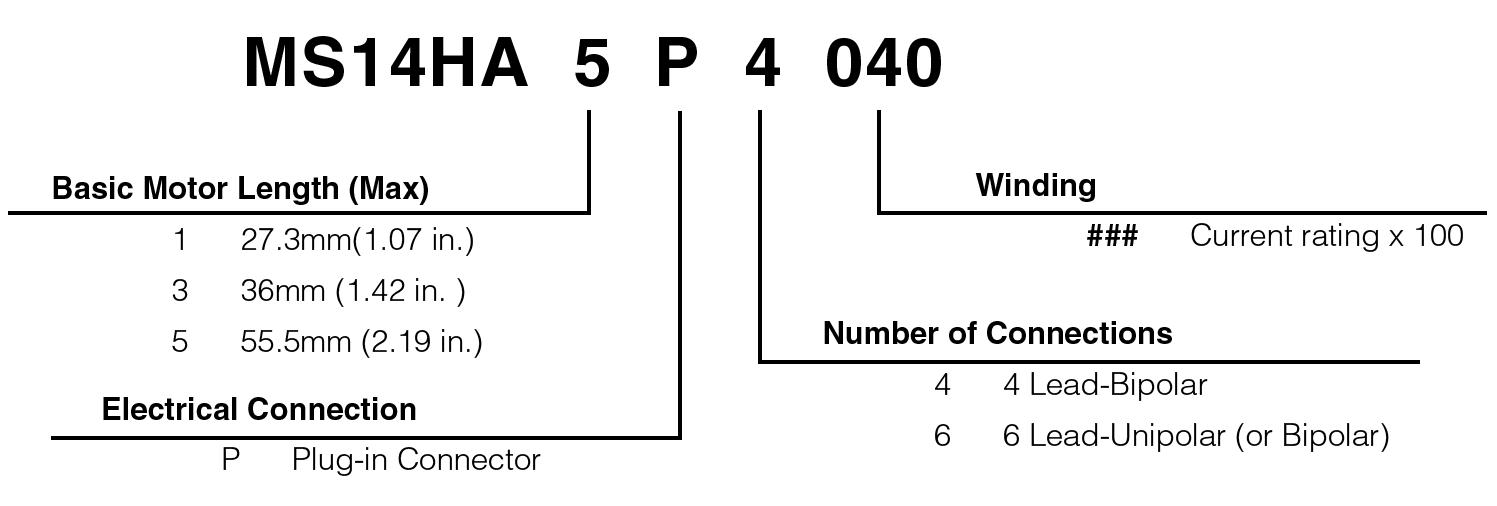

    Model Numbering System

    MS14HA-4Lead Bi-Polar

    Length Model Number Torque
    Curves    		 Connect Rated
    Current    		 Holding
    Torque    		 Winding
    OhmsmH    		 Detent
    Torque    		 Rotor Inertia Motor Weight
    Single Shaft P=Plug
    L=Leads    		 Amps
    (mounted)    		 Nmoz-in
    Typ.Typ.    		 ±10%
    @20℃    Typ.     		mNmoz-in g cm²oz-in² kgLbs
    27.3 mm
    (1.07 in.)     		MS14HA1P4026 P 0.26 0.115 4956 40.57 120.066 0.150.33
    MS14HA1P4070 P 0.7 0.1115 6.68.2
    MS14HA1P4100 P 1 0.115 3.33.9
    MS14HA1P4150 P 1.5 0.1115 1.551.8
    36 mm
    (1.42 in.)     		MS14HA3P4032 P 0.32 0.1927 3751 81.1 200.11 0.210.46
    MS14HA3P4075 P 0.75 0.1825 68.6
    MS14HA3P4100 P 1 0.1825 3.34.9
    MS14HA3P4150 P 1.5 0.1825 1.612.2
    55.5 mm
    (2.19 in.)     		MS14HA5P4040 P 0.4 0.3245 3049 101.4 350.19 0.240.53
    MS14HA5P4100 P 1 0.3245 5.18.2
    MS14HA5P4150 P 1.5 0.3245 2.13.6
    MS14HA5P4200 P 2 0.3245 1.342.1

    MS14HA-6 Lead uni-Polar

    Length Model Number Torque
    Curves    		 Connect Rated
    Current    		 Holding
    Torque    		 Winding
    OhmsmH    		 Detent
    Torque    		 Rotor Inertia Motor Weight
    Single Shaft P=Plug
    L=Leads    		 Amps
    (mounted)    		 Nmoz-in
    Typ.Typ.    		 ±10%
    @20℃    Typ.     		mNmoz-in g cm²oz-in² kgLbs
    27.3 mm
    (1.07 in.)
    		 MS14HA1P6026 P 0.26 0.0811 4827 40.57 120.066 0.150.33
    MS14HA1P6060 P 0.6 0.0811 8.95.3
    MS14HA1P6100 P 1 0.0812 3.32
    36 mm
    (1.42 in.)
    		 MS14HA3P6032 P 0.32 0.1318 3721 81.1 200.11 0.210.46
    MS14HA3P6070 P 0.7 0.1420 7.55.3
    MS14HA3P6110 P 1.1 0.1420 32
    55.5 mm
    (2.19 in.)
    		 MS14HA5P6040 P 0.4 0.2535 3126 101.4 350.19 0.240.53
    MS14HA5P6085 P 0.85 0.2637 7.16.1
    MS14HA5P6120 P 1.2 0.2535 3.52.9

    Compare Item Price
    (USD)    		 Buy Now
    MS14HA1P4026 $38.80
    MS14HA1P4070 $38.80
    MS14HA1P4100 $38.80
    MS14HA1P4150 $38.80
    MS14HA3P4032 $40.40
    MS14HA3P4075 $40.40
    MS14HA3P4100 $40.40
    MS14HA3P4150 $40.40
    MS14HA5P4040 $46.30
    MS14HA5P4100 $46.30
    MS14HA5P4150 $46.30
    MS14HA5P4200 $46.30
       Torque Speed Curves

    ►Torque Curves

    ■ MS14HA1-Bipolar
    MS14HA1-Bipolar
    MS14HA1-Bipolar
    MS14HA1-Bipolar
    		 MS14HA1-Bipolar
    ■ MS14HA3-Bipolar
    MS14HA3-Bipolar
    MS14HA3-Bipolar
    MS14HA3-Bipolar
    		 MS14HA3-Bipolar
    ■ MS14HA5-Bipolar
    MS14HA5-Bipolar
    MS14HA5-Bipolar
    MS14HA5-Bipolar
    ■ MS14HA1-Unipolar
    MS14HA1-Unipolar
    MS14HA1-Unipolar
    MS14HA1-Unipolar
    ■ MS14HA3-Unipolar
    MS14HA3-Unipolar
    MS14HA3-Unipolar
    MS14HA3-Unipolar
    ■ MS14HA5-Unipolar
    MS14HA5-Unipolar
    MS14HA5-Unipolar
    MS14HA5-Unipolar

    Dimension

    ►Dimensions

    ■Motor Dimensions: mm（in）
     Dimensions of NEMA 14 High Precision Hybrid Stepper Motors

    ■ Mating connector With Leads(order separately) Dimensions: mm（in）

    Mating connector With Leads(order separately) Dimensions: mm（in）

    4Lead Part Number: 4634 1402 04581 6Lead Part Number: 4634 1402 04489

    Downloads
    2D Drawings
    3D Model
    Title Type Size（KB） Download
    MS14HA1P_3D Model.step STEP 810
    MS14HA3P_3D Model.step STEP 715
    MS14HA5P_3D Model.step STEP 715
    Torque Speed Curves
    Title Type Size（KB） Download
    MS14HA Series_Torque Speed Curve.pdf PDF 5478
    MS14HA Series_Torque Speed Curve_2.pdf PDF 4758
    Catalog
    Title Type Size（KB） Download
    Hybrid Stepper Motor_Catalog2019.pdf PDF 15487
