STM17R Series Integrated Stepper Motors-1
  • STM17R Series Integrated Stepper Motors-1
    • STM17R Series Integrated Stepper Motors-1

    • STM17R Series Integrated Stepper Motors

    The STM17R Integrated Motor is a cost effective, high performance, motor with the drive built in. It is based on advanced digital current control technology, and features high torque, low noise, and low vibration. Operational parameters are switch selectable.
    ● Anti-Resonance
    ● Torque Ripple Smoothing
    ● Microstep Emulation
    ● Stall Detection and Stall Prevention
    ● Dynamic Current Control
    ● Command Signal Smoothing
    Brand Name: MOONS'
    Price: USD  108.0  -  204.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Description
  • Features
  • Model Numbering System
  • Ordering Information
    •

    ■ Description

    The STM-R is an integrated Drive+Motor, fusing step motor and drive technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions. STM-R offers NEMA 17, and 23 two frame sizes.
    STM17R Series Integrated Stepper Motors


    ■ Features

    Anti-Resonance
    Anti-Resonance
    Step motor systems have a natural tendency to resonate at certain speeds.The SR drives auaomatically calculate the system’s natural frequency and apply damping to the control algorithm. This greatly improves midrange stability, allows higher speeds and greater torque utilization, and also improves settling times.Provides better motor performance and higher speeds

    Microstep Emulation
    Microstep Emulation With Microstep Emulation, low resolution systems can still provide smooth motion. The drive can take low resolution step pulses and create fine resolution motion. Delivers smoother motion in any application
    Microstep Emulation

    Torque Ripple Smoothing
    Torque Ripple Smoothing
    All step motors have an inherent low speed torque ripple that can affect the motion profile of the motor. By analyzing this torque ripple the system can apply a negative harmonic to counter this effect. This gives the motor much smoother motion at low speed.

    Command Signal Smoothing
    Command Signal smoothing can soften the effect of immediate changes in velocity and direction, making the motion of the motor less jerky. An added advantage is that it can reduce the wear on mechanical components. Improves smoother system performance
    Command Signal Smoothing

    Self Test & Auto Setup
    At start-up the drive measures motor parameters, including the resistance and inductance, then uses this information to optimize the system performance.

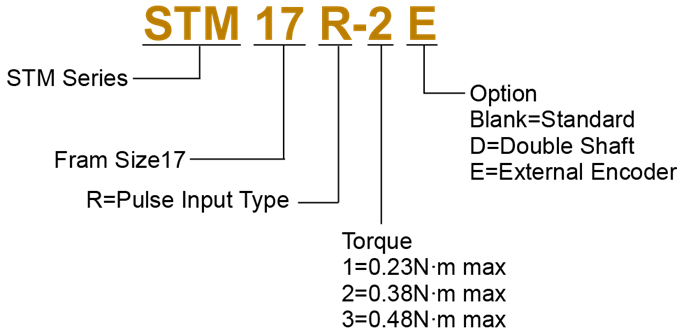

    ■ Model Numbering System

    Model Numbering System of STM17R Series Integrated Stepper Motors


    ■ Ordering Information

    Model Torque Standard Double Shaft External Enconder
    STM17R-1 0.23N·m √
    STM17R-1D   √
    STM17R-1E     √
    STM17R-2 0.38N·m √
    STM17R-2D   √
    STM17R-2E     √
    STM17R-3 0.48N·m √
    STM17R-3D   √
    STM17R-3E     √

    Data Sheet

    Power Amplifier
     Amplifier Type   Dual H-bridge, 4 quadrant
     Current Control   4 state PWM at 16 kHz
     Power Supply   STM17R: External 12 - 48 volt power supply required
      STM23R: External 12 - 70 volt power supply required
     Input Voltage Range   STM17R: 10 - 52 volts min/max (nominal 12 - 48 volts)
      STM23: 10 - 75 volts min/max (nominal 12 - 70 volts)
     Protection   Over-voltage, under-voltage, over-temp, internal shorts (phase-to-phase, phase-to-ground)
     Idle Current Reduction   Switch selectable for reduction to 50% or 90% of running current
     Ambient Temperature   0 - 40°C (32 - 104°F) when mounted to a suitable heat sink
     Humidity   90% non-condensing
    Controller
     Current Control   Advanced digital current control provides excellent high speed torque
     Speed Range   Speeds up to 3000 rpm
     Auto Setup   Measures motor parameters to configure current control and anti-resonance gain settings
     Encoder Feedback   Optional 1000 line external encoder, A/B/Z Differential Output
     Step Input STEP+/-   Inputs: optically isolated, 5 - 24 volts, min. pulse width 250 ns., max. pulse frequency 2 MHz;
      Motor executes one step on the falling edge of the STEP input signal
     Direction Input DIR+/-   Inputs: optically isolated, 5 - 24 volts, min. pulse width 250 ns, max. pulse frequency 2 MHz;
      Direction of rotation is controlled by the DIR input state
     Enable Input EN+/-   Inputs: optically isolated, 5 - 24 volts, min. pulse width 100 us., max. pulse frequency 10 KHz;
      Enables or disables the drive amplifier
     Output OUT+/-   Open Collector, 30 volts, 100 mA max, max. pulse frequency 10 KHz; closes when the drive encounters an error,
      Open when the drive is operating normally
    Switch Selections

    Switch Selections

     Running current   Output current is set by SW1 & SW2 with a total of 4 settings: 50%, 70%, 90% and 100% of the running current.
     Idle Current   Can be set by SW3 for 50% of running value to reduce motor and drive heating, or for 90% when a high holding torque is required.
     Self test   Set by SW4 to check the physical operation of the motor.
     Input Noise Filter   Set by SW5 this filters out unwanted electrical noise. The frequency of the filter can be set to 150KHz or 2MHz.
     Step Smoothing Filter   Also called microstep emulation, smooth motion can be obtained from coarse command signals by setting SW6 to ON.
     Anti-Resonance/Electronic
     Damping    		   Setting SW7 for the proper inertia load, low (OFF) or high (ON), can greatly improve the motor’s performance.
     Step Pulse Type   SW8 allows the motor to be used with either CW/CCW pulse type command signals (ON), or STEP/DIR pulse type signals (OFF).
     Microstep resolution   SW9, SW10, SW11, and SW12 set the microstep resolution at one of 16 settings:
       200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, or 25000 steps/rev.
     Mass   STM17R-1□: 280 g
      STM17R-2□: 360 g
      STM17R-3□: 440 g
      STM23R-2□: 850 g
      STM23R-3□: 1200 g
     Rotor Inertia   STM17R-1□: 38 g•cm2
      STM17R-2□: 57 g•cm2
      STM17R-3□: 82 g•cm2
      STM23R-2□: 260 g•cm2
      STM23R-3□: 460 g•cm2

    Compare Item Price
    (USD)    		 Buy Now
    STM17R-1 $108.00
    STM17R-1D $110.00
    STM17R-1E $197.00
    STM17R-2 $113.00
    STM17R-2D $115.00
    STM17R-2E $202.00
    STM17R-3 $118.00
    STM17R-3D $120.00
    STM17R-3E $204.00
    STM17S-3RN $204.00
       Torque Speed Curves

    STM17R-1 torque speed curve
    STM17R-2 torque speed curve
    STM17R-3 torque speed curve

    Dimension

    ■ Dimensions (Unit: mm)

    Dimensions of STM17R Series Integrated Stepper Motors

    Downloads
    2D Drawings
    3D Model
    Title Type Size（KB） Download
    STM17R-3_3D Model.step STEP 4049
    STM17R-1_3D Model.step STEP 4037
    STM17R-2_3D Model.step STEP 4049
    Brochure
    Title Type Size（KB） Download
    STM Family Brochure.PDF PDF 1822
    User Manual
    Title Type Size（KB） Download
    STM17R Series_User Manual.pdf PDF 6138
    Specifications
    Title Type Size（KB） Download
    STM17R Series_Specifications.pdf PDF 917
    Catalog
    Title Type Size（KB） Download
    Stepper Products General Catalog_20180531.pdf PDF 27992
    Quick Start
    Title Type Size（KB） Download
    STM17R Series_Quick start.pdf PDF 615
    Certification
    Title Type Size（KB） Download
    ROHS declaration-2024-A0.pdf PDF 522
    Integrated Step-Servo Motor CE Certification.pdf PDF 1430
