    Stepper motor, Ultra high torque, High efficiency, High accuracy, Step Angle: 1.8°, NEMA23, 56.4x 56.4mm
    ● Ultra high torque
    ● High efficiency
    ● High accuracy
    ● Available options for Wire Harness, Damper
    Brand Name: MOONS'
    Price: USD  107.0  -  172.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

    Description

    Technology Introduction

    MOONS' PowerPlus technology provides 25% to 40% more torque across the entire speed range of the motor. The increased torque is a result of higher motor efficiency, and is available without increasing the drive voltage or current, Which makes numerous of advantages contains: Easily upgrades for Machine, Correct stalling problems with existing Machines, Overcome drive or power supply limitations in new designs.

    Typical Applications

    Machine Upgrades: Changing existing machines to PowerPlus motors can be a quick path to new models with improved performance. Because the motor, drive and mechanical parts remain the same,
    benefits include:
    • Faster new product introduction
    • Reduced engineering costs
    • Easy production phase in
    • Reduced spare parts inventory
    Correct stalling problems with existing machines:
    Problems with occasional machine stalling are often due to unexpected field conditions such as: low temperature, dirt, and customers using machines in unexpected ways. Using PowerPlus motors can be a quick effective solution.
    Overcome drive or power supply limitations in new designs:
    Often a higher current drive or higher voltage power supply can provide needed extra torque. However, in many designs the drive current cannot be increased without changing to a substantially more expensive drive. And increasing drive voltage can be impractical, expensive, or may not be allowed for safety reasons. In these cases using PowerPlus motors can be especially useful.
    NEMA 23 PowerPlus Hybrid Stepper Motors

    Conventional Motor

    Some of the torque producing magnetic flux that links the rotor to the stator is outside the stator teeth. This stray flux adds little to motor torque.

    PowerPlus Technology

    Magnets placed between the stator teeth redirect most of the stray magnetic flux into the stator teeth. This produces additional torque with the same input power.

    Torque Curves

    Torque Curves - NEMA 23 PowerPlus Hybrid Stepper Motors

    Data Sheet


    Specification of NEMA 23 PowerPlus Hybrid Stepper Motors

    Specification

    Phase 2
    Steps/ Revolution 200
    Step Angle 1.8°
    Step Accuracy ±5%
    Insulation Class B, 130℃
    Insulation Resistance 100 MegOhms
    Axial Load (20,000 hours at 1000RPM ) 40 N (9 Lbs.) Push
    130 N (30 Lbs.) Pull
    Radial Load (20,000 hours at 1000RPM ) 70 N (15.5 Lbs.)At Flat Center
    Operating Temp. -20℃~50℃
    IP Rating IP 40
    Approvals UL Recognized File E465363, RoHS

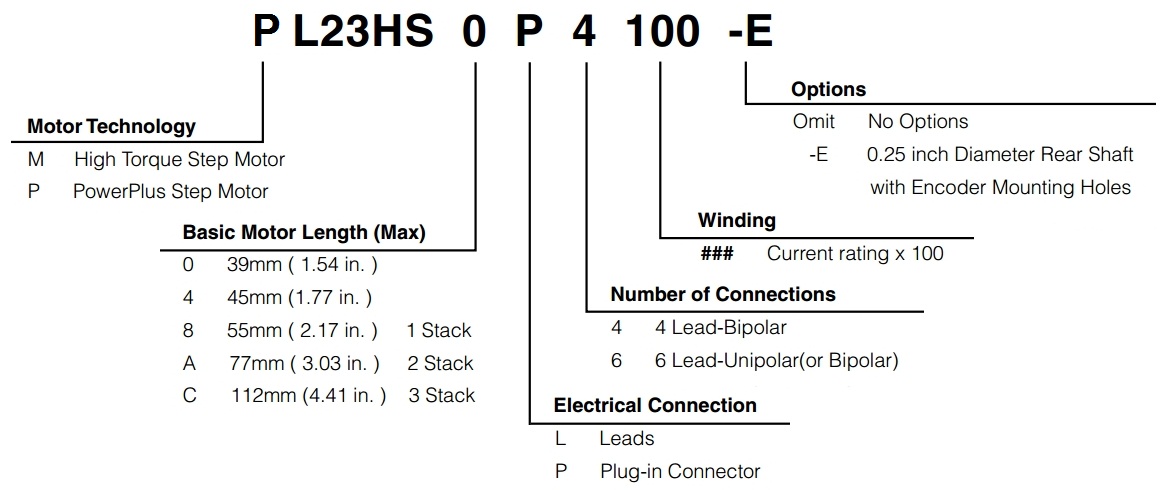

    Model Numbering System

    Model Numbering System - NEMA 23 PowerPlus Hybrid Stepper Motors

    PL23HS-PowerPlus-4Lead Bi-Polar

    Length Model Number Torque
    Curves    		 Connect Rated
    Current    		 Holding
    Torque    		 Winding
    OhmsmH    		 Detent
    Torque    		 Rotor Inertia Motor Weight
    Single Shaft P=Plug
    L=Leads    		 Amps
    (mounted)    		 Nmoz-in
    Typ.Typ.    		 ±10%
    @20℃    Typ.     		mNmoz-in g cm²oz-in² kgLbs
    55 mm
    (2.17 in.)
    1 Stack     		PL23HS8P4100 PL23HS8P4100 P 1 2.3330 7.626  10014 2151.4 0.65 1.4
    PL23HS8P4100-E PL23HS8P4100-E P 1 2.3330 7.626
    PL23HS8P4150 PL23HS8P4150 P 1.5 2.2310 3.110.7
    PL23HS8P4150-E PL23HS8P4150-E P 1.5 2.2310 3.110.7
    PL23HS8P4220 PL23HS8P4220 P 2.2 2.3330 1.65.4
    PL23HS8P4220-E PL23HS8P4220-E P 2.2 2.3330 1.65.4
    PL23HS8L4360 PL23HS8L4360 L 3.6 2.3330 0.632
    PL23HS8L4360-E PL23HS8L4360-E L 3.6 2.3330 0.632
    PL23HS8L4550 PL23HS8L4550 L 5.5 2.2310 0.280.8
    PL23HS8L4550-E PL23HS8L4550-E L 5.5 2.2310 0.280.8
    77 mm
    (3.03 in.)
    2 Stack     		PL23HSAP4100 PL23HSAP4100 P 1 3.3470 8.832 15021 365 2.5 1.1 2.4
    PL23HSAP4100-E PL23HSAP4100-E P 1 3.3470 8.832
    PL23HSAP4150 PL23HSAP4150 P 1.5 3.4480 4.315.2
    PL23HSAP4150-E PL23HSAP4150-E P 1.5 3.4480 4.315.2
    PL23HSAP4200 PL23HSAP4200 P 2 3.3470 2.38.1
    PL23HSAP4200-E PL23HSAP4200-E P 2 3.3470 2.38.1
    PL23HSAP4300 PL23HSAP4300 P 3 3.3470 1.13.7
    PL23HSAP4300-E PL23HSAP4300-E P 3 3.3470 1.13.7
    PL23HSAL4500 PL23HSAL4500 L 5 3.3470 0.391.27
    PL23HSAL4500-E PL23HSAL4500-E L 5 3.3470 0.391.27

    Compare Item Price
    (USD)    		 Buy Now
    PL23HS8P4100 $107.00
    PL23HS8P4100-E $109.00
    PL23HS8P4150 $107.00
    PL23HS8P4220 $107.00
    PL23HS8L4360 $107.00
    PL23HS8L4360-E $109.00
    PL23HS8L4550 $107.00
    PL23HS8L4550-E $109.00
    PL23HSAP4100 $170.00
    PL23HSAP4150 $170.00
    PL23HSAP4200 $170.00
    PL23HSAP4200-E $172.00
    PL23HSAP4300 $170.00
    PL23HSAP4300-E $172.00
    PL23HSAL4500 $170.00
    PL23HSAL4500-E $172.00
       Torque Speed Curves

    ►Torque Curves

    ■ PowerPlus PL23HS8
    PowerPlus PL23HS8
    PowerPlus PL23HS8
    PowerPlus PL23HS8
    		 PowerPlus PL23HS8
    ■ PowerPlus PL23HSA
    PowerPlus PL23HSA
    PowerPlus PL23HSA
    PowerPlus PL23HSA
    		 PowerPlus PL23HSA

    Dimension

    ►Dimensions

    ■ Motor Dimensions: mm（in）

    Dimensions of NEMA 23 PowerPlus Hybrid Stepper Motors

    ■ Mating connector With Leads(order separately) Dimensions: mm（in）
    Mating connector With Leads(order separately) Dimensions: mm（in）



    Downloads
    2D Drawings
    3D Model
    Title Type Size（KB） Download
    PL23HS8P_3D Model.step STEP 1926
    PL23HSAP_3D Model.step STEP 1927
    PL23HS8L_3D Model.step STEP 1131
    PL23HSAL_3D Model.step STEP 1119
    pl23hs8p 3D model STEP 1314
    pl23hs8l 3D model STEP 1136
    pl23hsap 3D model STEP 1289
    pl23hsal 3D model STEP 1124
    4611110027559.stp STEP 6101
    4611110027563.stp STEP 6586
    4611110027566.stp STEP 6872
    4611110027558.stp STEP 6042
    4611110027560.stp STEP 6448
    4611110027567.stp STEP 6872
    Torque Speed Curves
    Title Type Size（KB） Download
    PL23HS Series_Torque Speed Curve.pdf PDF 3618
    Catalog
    Title Type Size（KB） Download
    Hybrid Stepper Motor_Catalog2019.pdf PDF 15487

    Filter By Product Type

    All Products
    Driver
    Custom Designs

    With years of expertise and experience in the design, development, manufacturing and marketing of hybrid stepper motors, MOONS' provides a wealthy customized services, therefore, you can find suitable solutions for any special demands here.
  • Shaft OptionsShaft Options
  • Connectors & WiringConnectors & Wiring
  • Custom WindingsCustom Windings

    • User Instructions

    Step Sequence & Schematic Diagrams

    Step Sequence & Schematic Diagrams - NEMA 23 PowerPlus Hybrid Stepper Motors
